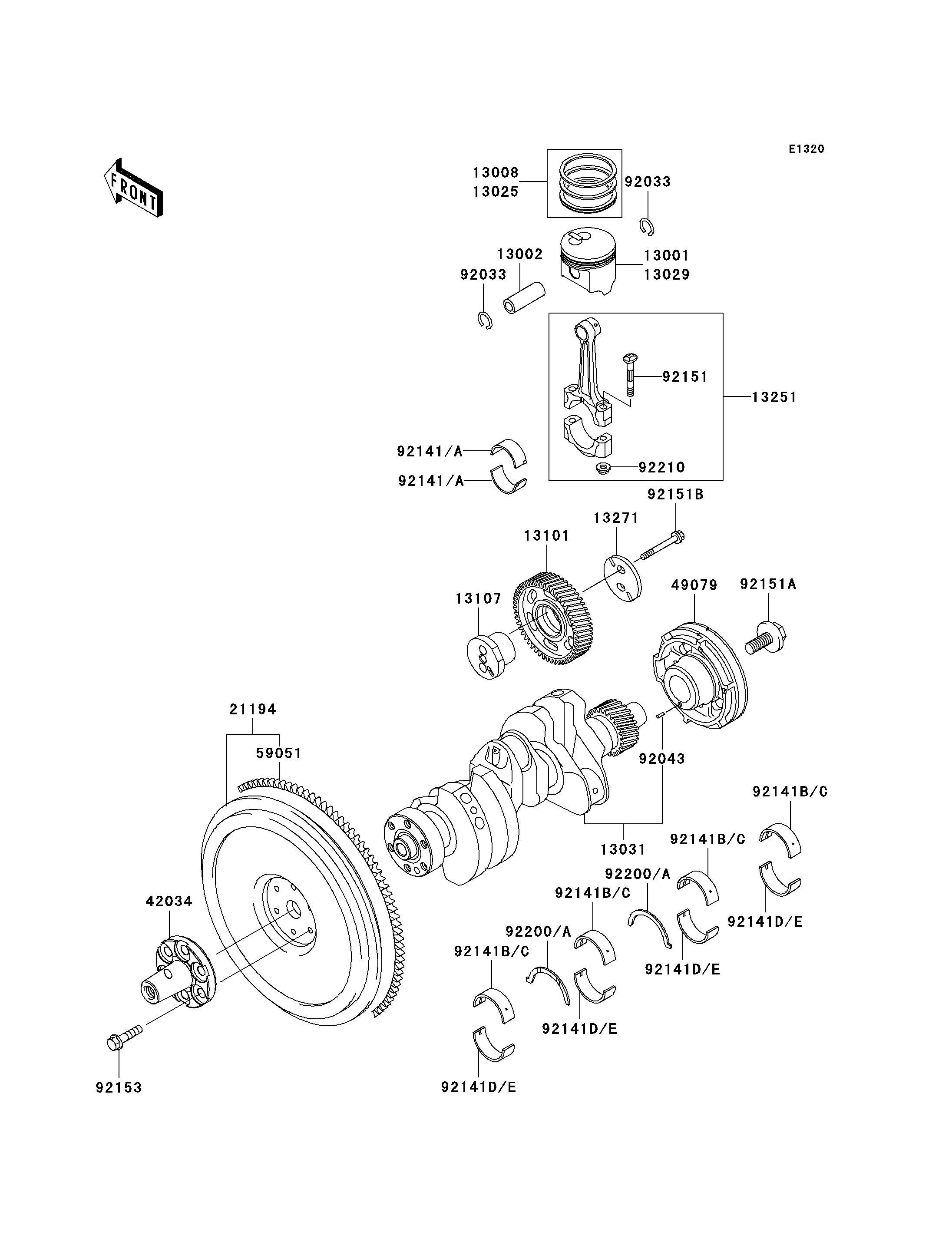

Mule 3010 Diesel 4X4 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
13001
13002
13008
13025
13029
13031
13101
13107
13251
13271
21194
42034
49079
59051
92033
92033
92043
92141
92141
92141A
92141A
92141B
92141B
92141B
92141B
92141C
92141C
92141C
92141C
92141D
92141D
92141D
92141D
92141E
92141E
92141E
92141E
92151
92151A
92151B
92153
92200
92200
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-1571 3
PIN-PISTON 13002 13002-1118 3
RING-SET-PISTON,STD 13008 13008-1197 3
RING-SET-PISTON L,O/S 0.25 13025 13025-1154 AR
PISTON-ENGINE L,O/S 0.25 13029 13029-1279 AR
CRANKSHAFT-COMP 13031 13031-1497 1
GEAR-ASSY,IDLE 13101 13101-1292 1
SHAFT,IDLE GEAR 13107 13107-1431 1
ROD-ASSY-CONNECTING 13251 13251-1129 3
PLATE 13271 13271-1362 1
FLYWHEEL-COMP 21194 21194-1055 1
COUPLING 42034 42034-1197 1
PULLEY-BELT 49079 49079-1061 1
GEAR-SPUR,FLYWHEEL 59051 59051-1388 1
RING-SNAP,PISTON 92033 92033-1314 6
PIN,CRANKSHAFT GEAR 92043 92043-1612 1
BUSHING,CONNECTING ROD,STD 92141 92141-1054 6
BUSHING,CONNECTING ROD,U/S 92141A 92141-1055 AR
BUSHING,CRANKSHAFT,UPP,STD 92141B 92141-1056 4
BUSHING,CRANKSHAFT,UPP,U/S 92141C 92141-1057 AR
BUSHING,CRANKSHAFT,LWR,STD 92141D 92141-1058 4
BUSHING,CRANKSHAFT,LWR,U/S 92141E 92141-1059 AR
BOLT,CONNECTING ROD 92151 92151-1671 6
BOLT,PULLEY 92151A 92151-1672 1
BOLT,8X45 92151B 92151-1674 2
BOLT,10X33 92153 92153-0308 6
WASHER,THRUST,STD 92200 92200-1498 2
WASHER,THRUST,O/S 0.125 92200A 92200-1499 AR
NUT,CONNECTING ROD 92210 92210-1212 6
