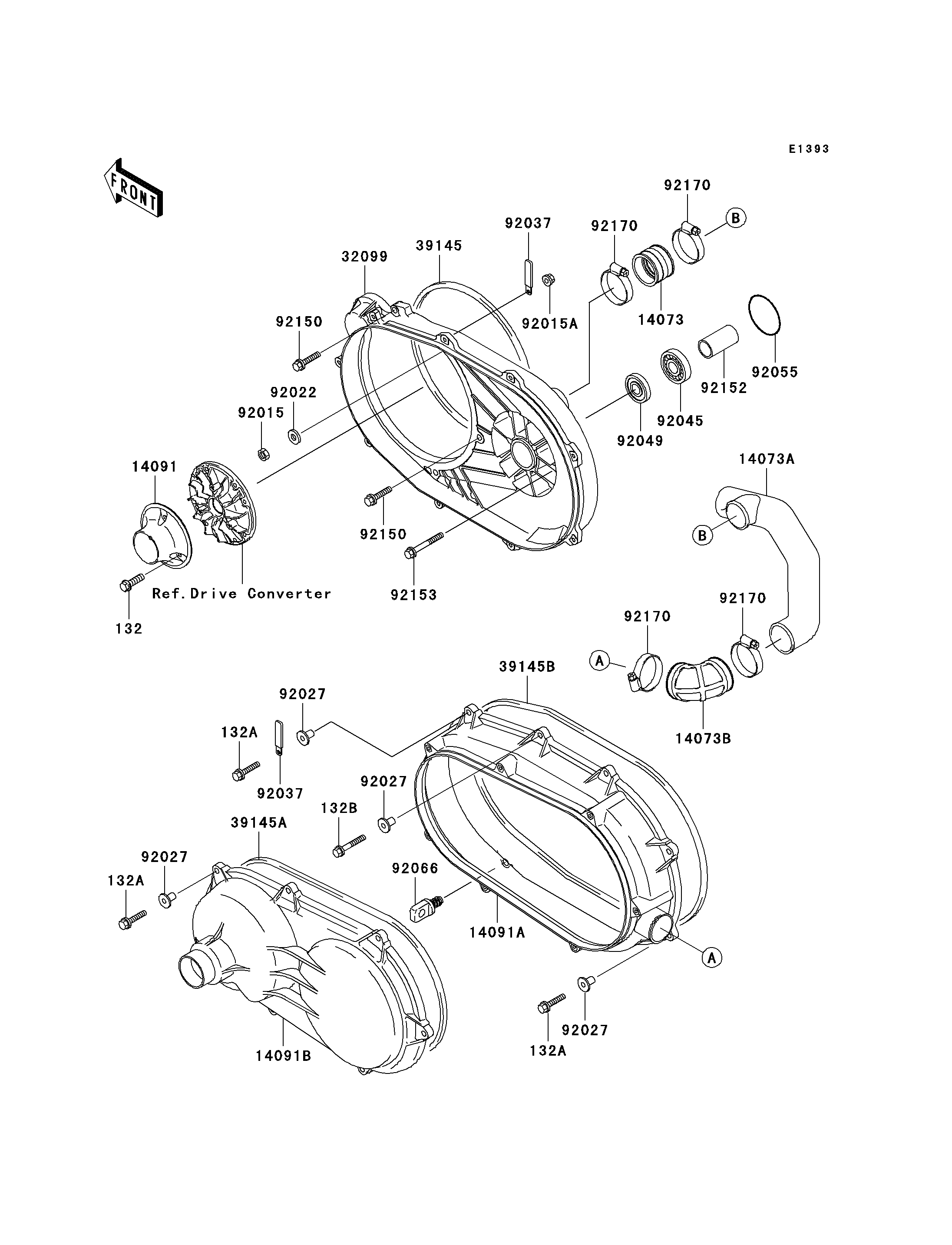

Mule 3010 Diesel 4X4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132A
132B
14073
14073A
14073B
14091
14091A
14091B
32099
39145
39145A
39145B
92015
92015A
92022
92027
92027
92027
92027
92037
92037
92045
92049
92055
92066
92150
92150
92152
92153
92170
92170
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132G0620 3
BOLT-FLANGED-SMALL,6X30 132A 132J0630 15
BOLT-FLANGED-SMALL,6X35 132B 132J0635 1
DUCT 14073 14073-1324 1
DUCT 14073A 14073-1856 1
DUCT 14073B 14073-1857 1
COVER,FAN 14091 14091-1520 1
COVER,MIDDLE 14091A 14091-1555 1
COVER,BELT CONVERTER 14091B 14091-1556 1
CASE,BELT CONVERTER 32099 32099-1215 1
TRIM-SEAL,BELT CONVERTER CASE 39145 39145-1115 1
TRIM-SEAL,MIDDLE COVER 39145A 39145-1117 1
TRIM-SEAL,BELT CONVERTER 39145B 39145-1126 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 1
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 1
WASHER,10.5X18X2.5 92022 92022-1876 1
COLLAR,L=14.1 92027 92027-1920 16
CLAMP,L=60 92037 92037-1069 2
BEARING-BALL,62/28LLB 92045 92045-1378 1
SEAL-OIL,TC28X47X7 92049 92049-1297 1
RING-O,67.6X3.5 92055 92055-1327 1
PLUG,DRAIN,11X19 92066 92066-1580 1
BOLT,FLANGED,8X28 92150 92150-1103 5
COLLAR,28.1X34X63.6 92152 92152-1177 1
BOLT 92153 92153-1276 3
CLAMP 92170 92170-1764 4
