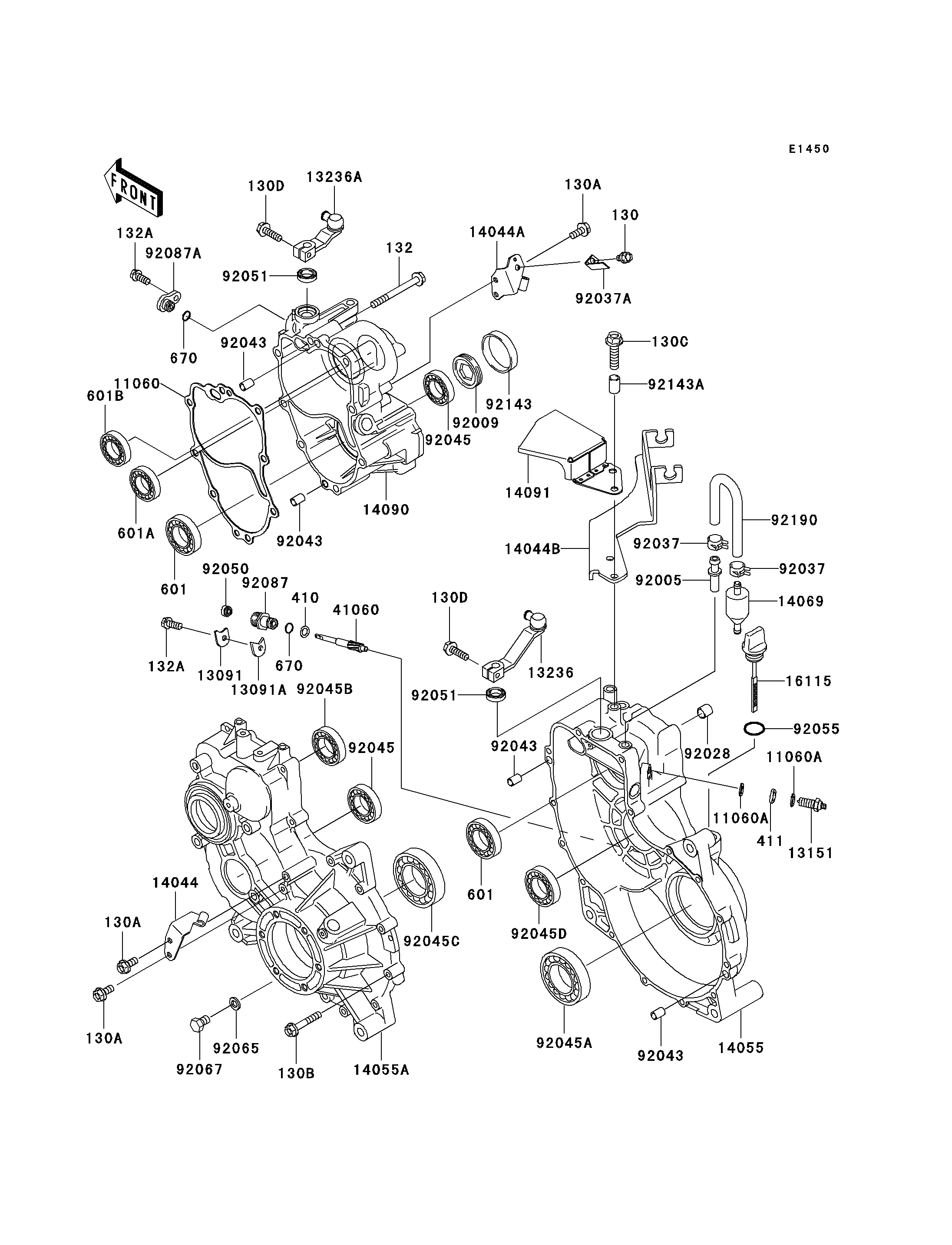

Parts Diagrams |
130
130
130A
130A
130A
130A
130A
130A
11060
11060
11060A
11060A
11060A
11060A
13091
13091
13091A
13091A
13151
13151
13236
13236
13236A
13236A
14044
14044
14044A
14044A
14044B
14044B
14055
14055
14055A
14055A
14069
14069
14090
14090
14091
14091
16115
16115
41060
41060
92005
92005
92009
92009
92028
92028
92037
92037
92037
92037
92037A
92037A
92043
92043
92043
92043
92043
92043
92043
92043
92045
92045
92045
92045
92045A
92045A
92045B
92045B
92045C
92045C
92045D
92045D
92050
92050
92051
92051
92051
92051
92055
92055
92065
92065
92067
92067
92087
92087
92087A
92087A
92143
92143
92143A
92143A
92190
92190
130B
130B
130C
130C
130D
130D
130D
130D
132
132
132A
132A
132A
132A
410
410
411
411
601
601
601
601
601A
601A
601B
601B
670
670
670
670
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130D0610 | 1 | ||
BOLT-FLANGED,6X14 | 130A | 130D0614 | 4 | ||
GASKET,GEAR CASE COVER | 11060 | 11060-1310 | 1 | ||
GASKET | 11060A | 11060-1966 | 2 | ||
HOLDER,T=2.3 | 13091 | 13091-1008 | 1 | ||
HOLDER,T=3.2 | 13091A | 13091-1009 | 1 | ||
SWITCH-COMP | 13151 | 13151-1093 | 1 | ||
LEVER-COMP,CHANGE | 13236 | 13236-0030 | 1 | ||
LEVER-COMP | 13236A | 13236-1363 | 1 | ||
HOLDER-CABLE | 14044 | 14044-0003 | 1 | ||
HOLDER-CABLE | 14044A | 14044-0004 | 1 | ||
HOLDER-CABLE | 14044B | 14044-1097 | 1 | ||
CASE-GEAR,RH | 14055 | 14055-1110 | 1 | ||
CASE-GEAR,LH | 14055A | 14055-1144 | 1 | ||
BREATHER | 14069 | 14069-1051 | 1 | ||
COVER,GEAR CASE,HI/LOW | 14090 | 14090-1238 | 1 | ||
COVER,GEAR CASE | 14091 | 14091-0472 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1060 | 1 | ||
GEAR-METER SCREW | 41060 | 41060-1148 | 1 | ||
FITTING,BREATHER | 92005 | 92005-1127 | 1 | ||
SCREW,55MM | 92009 | 92009-1290 | 1 | ||
BUSHING,23X30X13 | 92028 | 92028-132 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1505 | 2 | ||
CLAMP | 92037A | 92037-1680 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
BEARING-BALL,TMB304CCM | 92045 | 92045-1142 | 2 | ||
BEARING-BALL,6010CM | 92045A | 92045-1162 | 1 | ||
BEARING-BALL,62/28 | 92045B | 92045-1207 | 1 | ||
BEARING-BALL,6210CM | 92045C | 92045-1213 | 1 | ||
BEARING-BALL,TMB205JR2 | 92045D | 92045-1285 | 1 | ||
SEAL-OIL | 92050 | 92050-075 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 2 | ||
RING-O,20X3 | 92055 | 92055-2185 | 1 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
PLUG,DRAIN,10X12 | 92067 | 92067-001 | 1 | ||
BUSHING-METER GEAR | 92087 | 92087-010 | 1 | ||
BUSHING-METER GEAR | 92087A | 92087-1058 | 1 | ||
COLLAR,66X70X11 | 92143 | 92143-1120 | 1 | ||
COLLAR,9.5X12.7X14 | 92143A | 92143-1752 | 2 | ||
TUBE | 92190 | 92190-3807 | 1 | ||
BOLT-FLANGED,6X35 | 130B | 130H0635 | 15 | ||
BOLT-FLANGED,8X30 | 130C | 130H0830 | 2 | ||
BOLT-FLANGED,6X20 | 130D | 130T0620 | 2 | ||
BOLT-FLANGED-SMALL,8X60 | 132 | 132H0860 | 8 | ||
BOLT-FLANGED-SMALL,6X14 | 132A | 132J0614 | 2 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
WASHER-PLAIN,10MM | 411 | 411B1000 | 1 | ||
BEARING-BALL,#6007C3 | 601 | 601B6007 | 2 | ||
BEARING-BALL,#6303C3 | 601A | 601B6303 | 1 | ||
BEARING-BALL | 601B | 601B6303U | 1 | ||
O RING,10MM | 670 | 670D1510 | 2 |
BOLT-FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X14 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,GEAR CASE COVER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER,T=2.3 | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,T=3.2 | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-COMP | |
REF # | 13151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,CHANGE | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP | |
REF # | 13236A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE | |
REF # | 14044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE | |
REF # | 14044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE | |
REF # | 14044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-GEAR,RH | |
REF # | 14055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-GEAR,LH | |
REF # | 14055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,GEAR CASE,HI/LOW | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,GEAR CASE | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-OIL FILLER | |
REF # | 16115 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-METER SCREW | |
REF # | 41060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,BREATHER | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,55MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,23X30X13 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-BALL,TMB304CCM | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,6010CM | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,62/28 | |
REF # | 92045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6210CM | |
REF # | 92045C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,TMB205JR2 | |
REF # | 92045D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92051 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,20X3 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,10.5X16X1 | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN,10X12 | |
REF # | 92067 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-METER GEAR | |
REF # | 92087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-METER GEAR | |
REF # | 92087A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,66X70X11 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,9.5X12.7X14 | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X35 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 15 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X30 | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20 | |
REF # | 130D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,8X60 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X14 | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,6MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,10MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6007C3 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6303C3 | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,10MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
