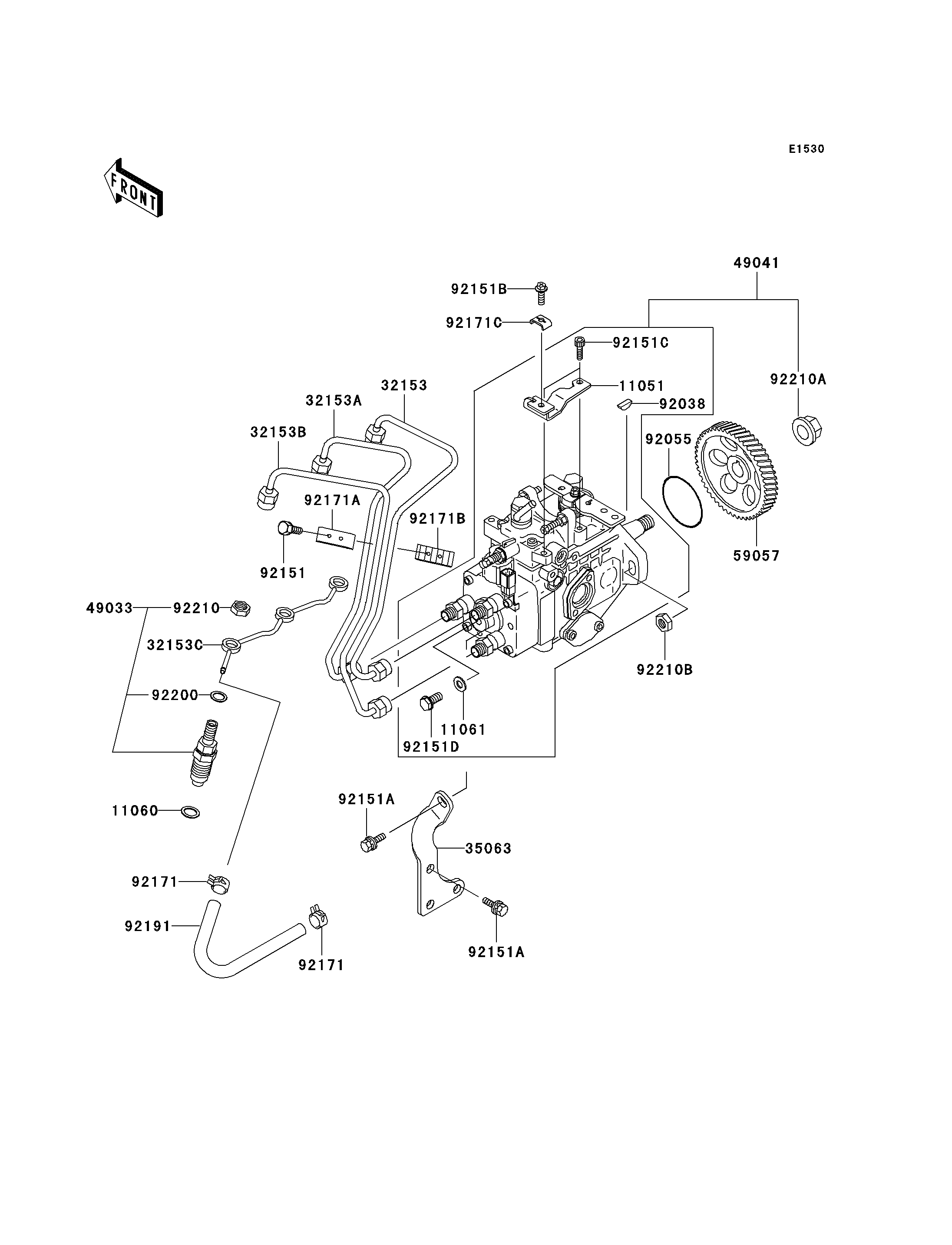

Mule 3010 Diesel 4X4 - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11051
11060
11061
32153
32153A
32153B
32153C
35063
49033
49041
59057
92038
92055
92151
92151A
92151A
92151B
92151C
92151D
92171
92171
92171A
92171B
92171C
92191
92200
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE 11051 11051-1570 1
GASKET,INJECTION NOZZLE 11060 11060-1962 3
GASKET,INJECTION PUMP 11061 11061-1052 1
PIPE,RH 32153 32153-1190 1
PIPE,CNT 32153A 32153-1191 1
PIPE,LH 32153B 32153-1192 1
PIPE,NOZZLE LEAKAGE 32153C 32153-1194 1
STAY,INJECTION PUMP 35063 35063-1097 1
NOZZLE-INJECTION 49033 49033-1058 3
PUMP-INJECTION 49041 49041-1051 1
GEAR-HELICAL,INJECTION PUMP 59057 59057-1003 1
KEY 92038 92038-1065 1
RING-O,INJECTION PUMP 92055 92055-1629 1
BOLT,6X20 92151 92151-1667 2
BOLT,8X20 92151A 92151-1697 2
BOLT,5X20 92151B 92151-1698 1
BOLT,SOCKET 92151C 92151-1718 2
BOLT,INJECTION PUMP 92151D 92151-1885 1
CLAMP,TUBE 92171 92171-1165 2
CLAMP,INJECTION PIPE 92171A 92171-1166 1
CLAMP,INJECTION PIPE 92171B 92171-1167 1
CLAMP,THROTTLE 92171C 92171-1168 1
TUBE,FUEL 92191 92191-1450 1
WASHER,INJECTION NOZZLE 92200 92200-1507 3
NUT,INJECTION NOZZLE 92210 92210-1220 3
NUT,14MM 92210A 92210-1221 1
NUT,8MM 92210B 92210-1222 2
