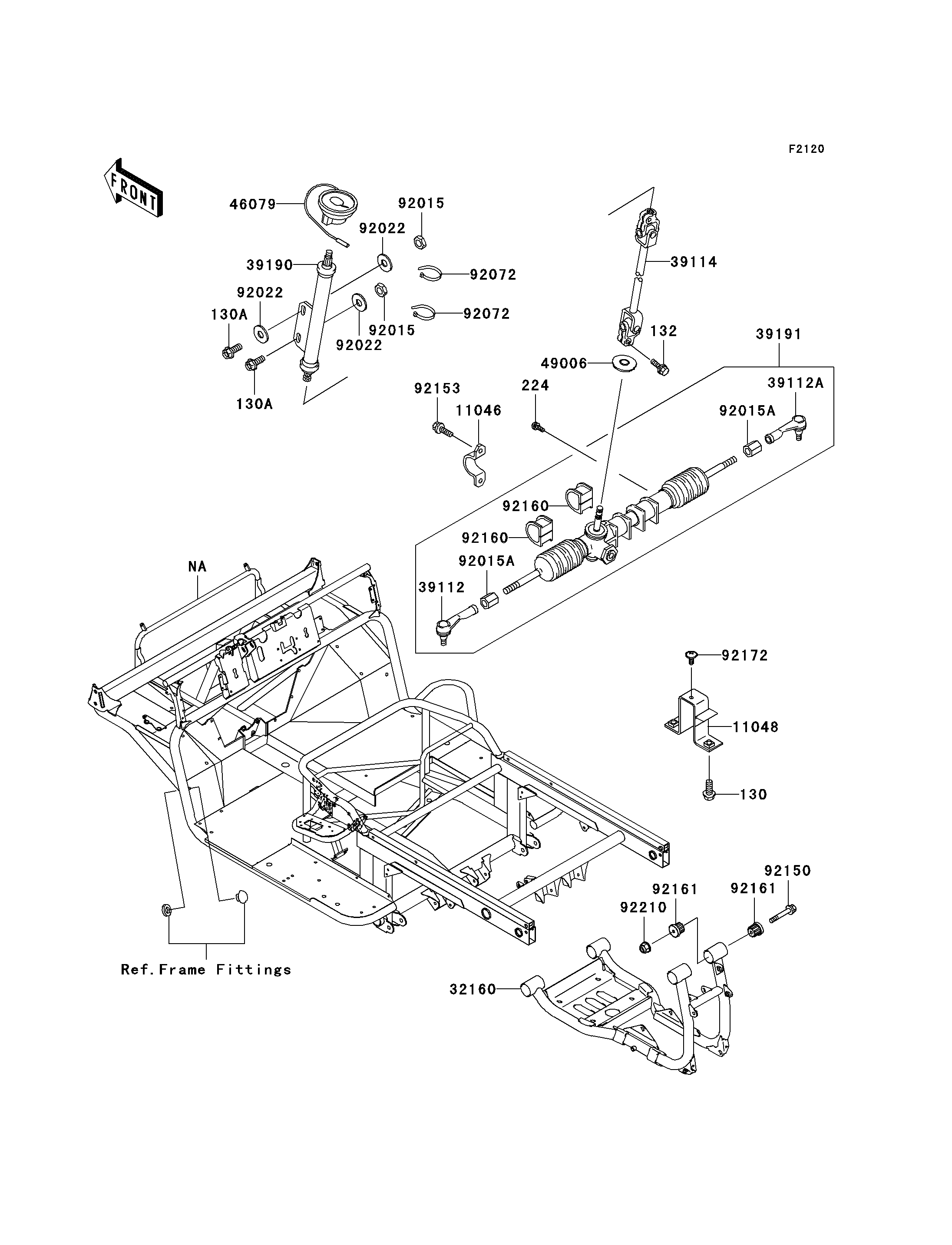

Parts Diagrams |
130
130A
130A
132
224
11046
11048
32160
39112
39112A
39114
39190
39191
46079
49006
92015
92015
92015A
92015A
92022
92022
92022
92072
92072
92150
92153
92160
92160
92161
92161
92172
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X20 | 130 | 130J0820 | 2 | ||
BOLT-FLANGED,10X30 | 130A | 130J1030 | 2 | ||
BOLT-FLANGED-SMALL,8X25 | 132 | 132J0825 | 2 | ||
SCREW-PAN-WP-CROS,5X8 | 224 | 224B0508 | 1 | ||
BRACKET,STEERING GEAR | 11046 | 11046-1858 | 2 | ||
BRACKET,REAR FRAME | 11048 | 11048-1245 | 1 | ||
FRAME-COMP,RR | 32160 | 32160-7502 | 1 | ||
RODEND-TIE,STEERING GEAR,LH | 39112 | 39112-1068 | 1 | ||
RODEND-TIE,STEERING GEAR,RH | 39112A | 39112-1069 | 1 | ||
SHAFT-COMP-STRG | 39114 | 39114-0009 | 1 | ||
SHAFT-ASSY-STEERING | 39190 | 39190-1006 | 1 | ||
GEAR-ASSY-STEERING | 39191 | 39191-0008 | 1 | ||
CONTACT,HORN SWITCH | 46079 | 46079-1063 | 1 | ||
BOOT,STEERING SHAFT,LWR | 49006 | 49006-1255 | 1 | ||
NUT,LOCK,10MM,BLACK | 92015 | 92015-1189 | 2 | ||
NUT | 92015A | 92015-1864 | 2 | ||
WASHER,10.5X26X2.3,BLACK | 92022 | 92022-1396 | 3 | ||
BAND,L=188 | 92072 | 92072-1239 | 2 | ||
BOLT,FLANGED,10X100 | 92150 | 92150-1731 | 4 | ||
BOLT,SOCKET,10X23 | 92153 | 92153-1269 | 4 | ||
DAMPER,STEERING GEAR | 92160 | 92160-1084 | 2 | ||
DAMPER | 92161 | 92161-1126 | 8 | ||
SCREW,6X14 | 92172 | 92172-0004 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 4 |
