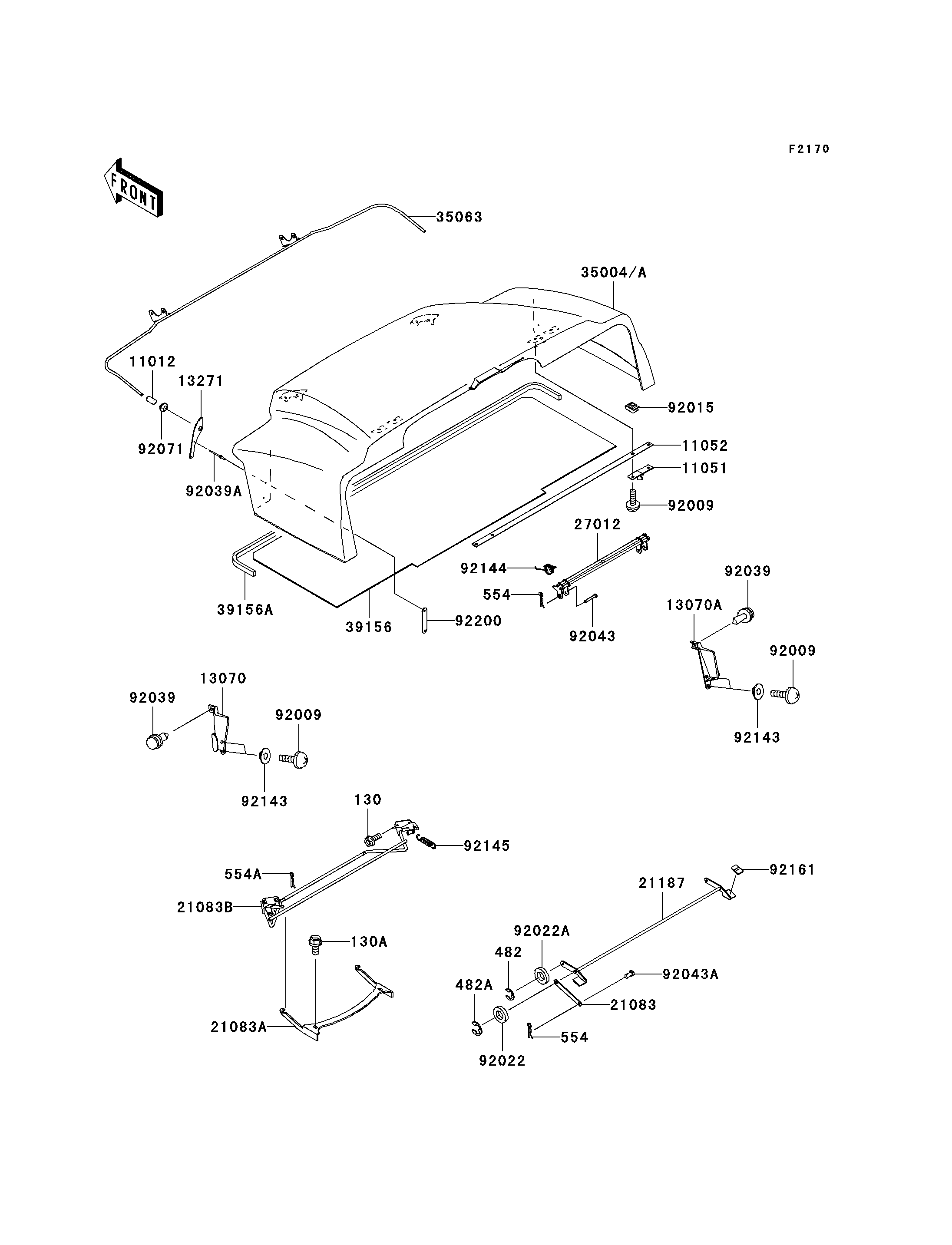

Mule 3010 Diesel 4X4 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
482
482A
554
554
554A
11012
11051
11052
13070
13070A
13271
21083
21083A
21083B
21187
27012
35004
35004A
35063
39156
39156A
92009
92009
92009
92015
92022
92022A
92039
92039
92039A
92043
92043A
92071
92143
92143
92144
92145
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130J0616 4
BOLT-FLANGED,8X16 130A 130J0816 2
CIRCLIP-TYPE-E,5MM 482 482L5000 2
CIRCLIP-TYPE-E 482A 482L7000 2
PIN-SNAP 554 554A0600 4
PIN-SNAP,8MM 554A 554A0800 2
CAP 11012 11012-1985 2
BRACKET 11051 11051-1756 2
BRACKET 11052 11052-1369 1
GUIDE,LH 13070 13070-1367 1
GUIDE,RH 13070A 13070-1368 1
PLATE,RR 13271 13271-1800 2
ARM 21083 21083-1146 2
ARM 21083A 21083-1163 1
ARM 21083B 21083-1172 1
ARM-ASSY 21187 21187-1085 1
HOOK 27012 27012-1608 1
FENDER-FRONT,A.RED 35004 35004-0007-260 1
FENDER-FRONT,W.GREEN 35004A 35004-0007-286 1
STAY,FR FENDER 35063 35063-1203 1
PAD,FRONT FENDER 39156 39156-0014 1
PAD 39156A 39156-1685 1
SCREW,6X16 92009 92009-1621 8
NUT,CLAMP,6MM 92015 92015-1678 4
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 AR
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 2
RIVET 92039 92039-1229 2
RIVET 92039A 92039-1244 4
PIN,6X39 92043 92043-1625 2
PIN,6X9 92043A 92043-1626 2
GROMMET,10MM 92071 92071-019 2
COLLAR 92143 92143-1087 4
SPRING,SEAT HOOK 92144 92144-1174 2
SPRING 92145 92145-1335 2
DAMPER 92161 92161-1197 2
WASHER 92200 92200-1592 2
