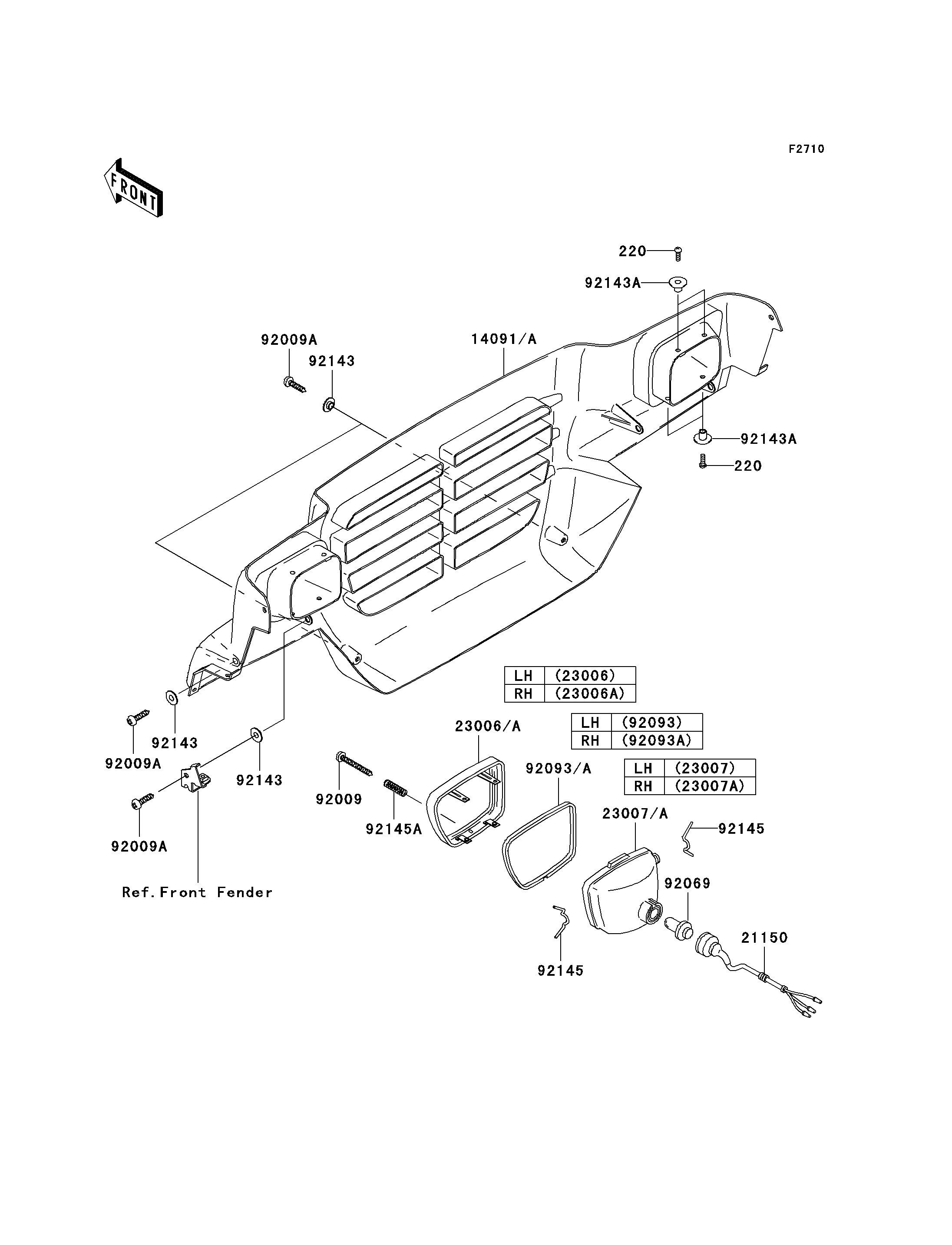

Mule 3010 Diesel 4X4 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
220
220
14091
21150
23006
23006A
23007
23007A
92009
92009A
92009A
92009A
92069
92093
92093A
92143
92143
92143
92143A
92143A
92145
92145
92145A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS,5X16 220 220F0516 8
COVER,FRONT GRIL,F.BLACK 14091 14091-1225-6Z 1
CORD-ASSY,HEAD LAMP 21150 21150-1060 2
RIM-LAMP,LH 23006 23006-1075 1
RIM-LAMP,RH 23006A 23006-1076 1
LENS-COMP,HEAD LAMP,LH 23007 23007-1354 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-1355 1
SCREW,TAPPING,4X30 92009 92009-1139 2
SCREW,6X16 92009A 92009-1621 6
BULB,12V 30/30W 92069 92069-1080 2
SEAL,HEAD LAMP,LH 92093 92093-1481 1
SEAL,HEAD LAMP,RH 92093A 92093-1482 1
COLLAR 92143 92143-1087 6
COLLAR 92143A 92143-1234 8
SPRING 92145 92145-1190 4
SPRING 92145A 92145-1230 2
