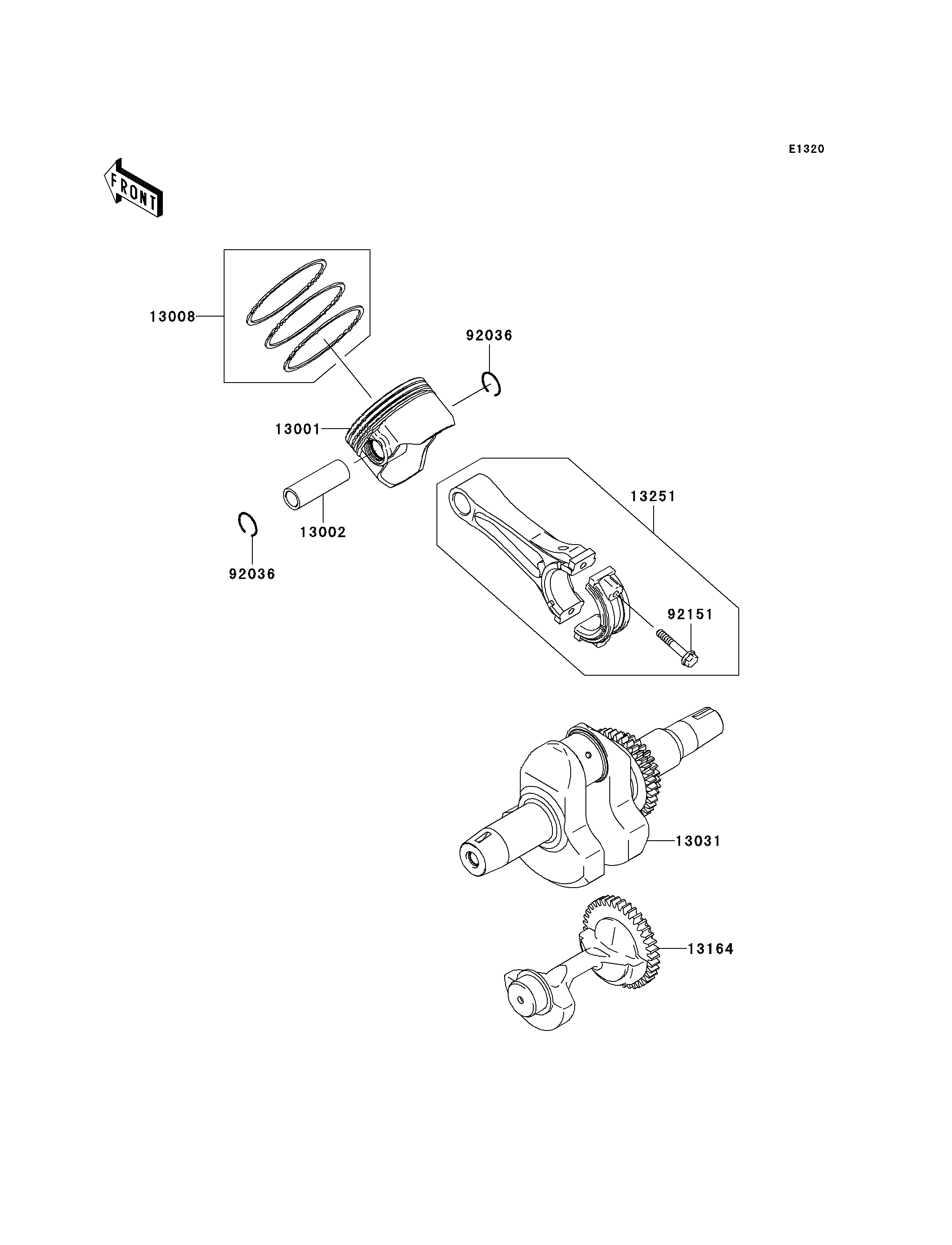

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE 13001 13001-7013 1
PIN-PISTON 13002 13002-7003 1
RING-SET-PISTON 13008 13008-6063 1
CRANKSHAFT-COMP 13031 13031-7061 1
BALANCER-COMP 13164 13164-7002 1
ROD-ASSY-CONNECTING 13251 13251-7013 1
RING-SNAP,PISTON PIN 92036 92036-008 2
BOLT,6X35 92151 92151-7017 2
