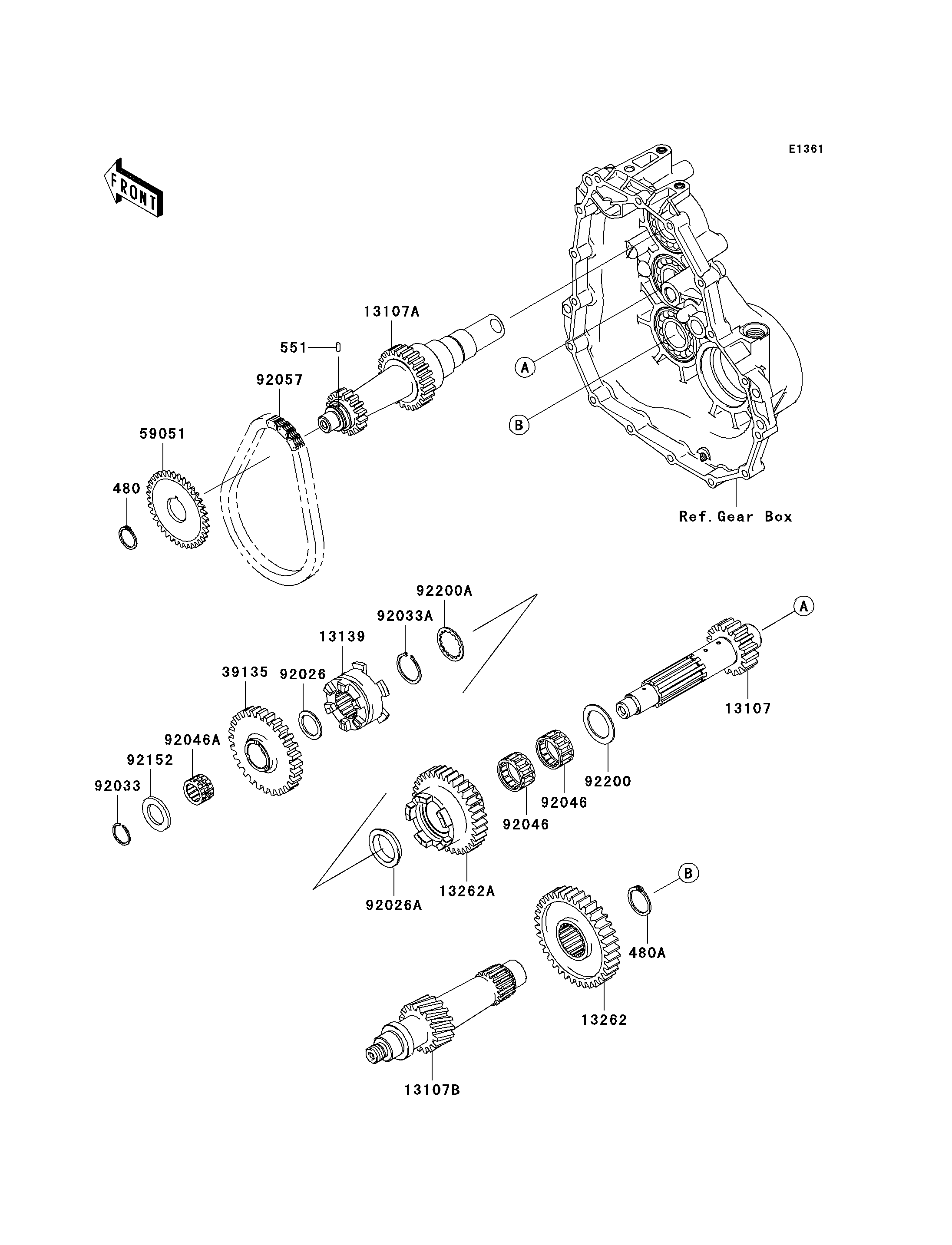

2008 Mule™ 600 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480A
551
13107
13107A
13107B
13139
13262
13262A
39135
59051
92026
92026A
92033
92033A
92046
92046
92046A
92057
92152
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,25MM 480 480J2500 1
CIRCLIP-TYPE-C,32MM 480A 480J3200 1
PIN-DOWEL,3X8 551 551A0308 1
SHAFT,SECOND,18T 13107 13107-0078 1
SHAFT,FIRST,INPUT,16T&24T 13107A 13107-0086 1
SHAFT,THIRD,16T 13107B 13107-0090 1
SHIFTER,FR/RR 13139 13139-0004 1
GEAR-TRANSMISSION SPUR,36T 13262 13262-0108 1
GEAR-TRANSMISSION SPUR,35T 13262A 13262-0142 1
SPROCKET-DRIVEN,30T 39135 39135-0001 1
GEAR-SPUR,37T 59051 59051-0049 1
SPACER,21.2X29X1.6 92026 92026-1568 1
SPACER,28X39X8 92026A 92026-1629 1
RING-SNAP,20MM 92033 92033-015 1
RING-SNAP,25.9X30.6X1.2 92033A 92033-1037 1
BEARING-NEEDLE,FWF-283317 92046 92046-1278 2
BEARING-NEEDLE,REVERSE GEAR 92046A 92046-1279 1
CHAIN,REVERSE,23RH302-38ASM 92057 92057-0072 1
COLLAR,21.2X34.0X3.0 92152 92152-0241 1
WASHER,28.2X40.0X1.6 92200 92200-0090 1
WASHER,28.5X34.0X1.5 92200A 92200-1240 1
