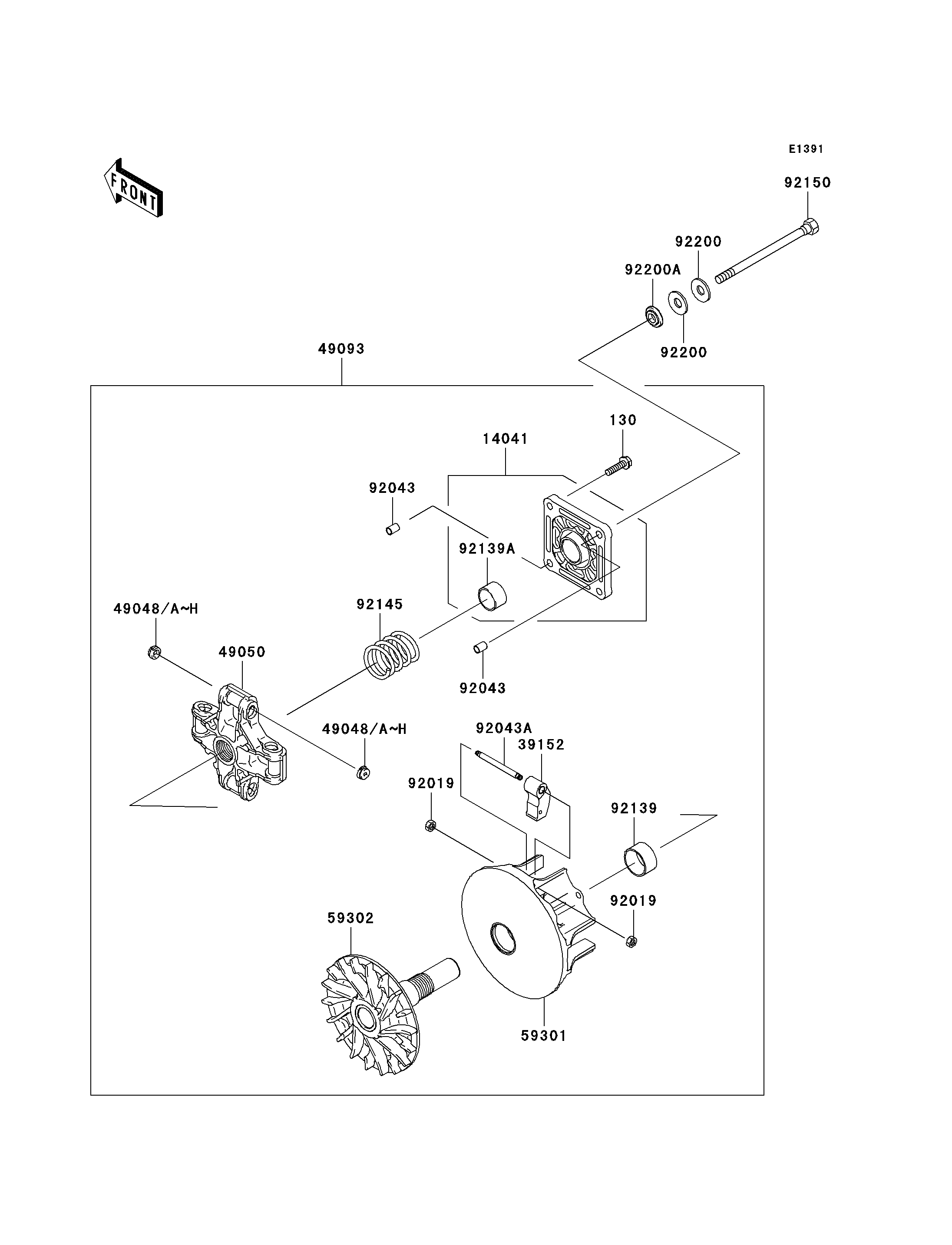

2008 Mule™ 600 - Drive Converter

DOWNLOAD PDF
SELECT A NEW PART
130
14041
39152
49048
49048
49048A
49048A
49048B
49048B
49048C
49048C
49048D
49048D
49048E
49048E
49048F
49048F
49048G
49048G
49048H
49048H
49050
49093
59301
59302
92019
92019
92043
92043
92043A
92139
92139A
92145
92150
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130CB0830 4
COVER-COMP 14041 14041-0006 1
WEIGHT-RAMP,"C" 39152 39152-0011 4
SHOE,T=7.2 49048 49048-1087 AR
SHOE,T=7.3 49048A 49048-1088 AR
SHOE,T=7.4 49048B 49048-1089 AR
SHOE,T=7.5 49048C 49048-1090 8
SHOE,T=7.6 49048D 49048-1091 AR
SHOE,T=7.7 49048E 49048-1092 AR
SHOE,T=7.8 49048F 49048-1093 AR
SHOE,T=7.9 49048G 49048-1094 AR
SHOE,T=8.0 49048H 49048-1095 AR
SPIDER 49050 49050-0003 1
CONVERTER-ASSY-DRIVE 49093 49093-0021 1
SHEAVE-MOVABLE 59301 59301-0001 1
SHEAVE-COMP,FIXED 59302 59302-0005 1
NUT,LOCK,6MM 92019 92019-008 8
PIN,8.2X10X14 92043 92043-1264 2
PIN 92043A 92043-1699 4
BUSHING 92139 92139-0049 1
BUSHING 92139A 92139-0050 1
SPRING 92145 92145-0149 1
BOLT,12X163.5 92150 92150-1008 1
WASHER 92200 92200-0249 2
WASHER 92200A 92200-1634 1
