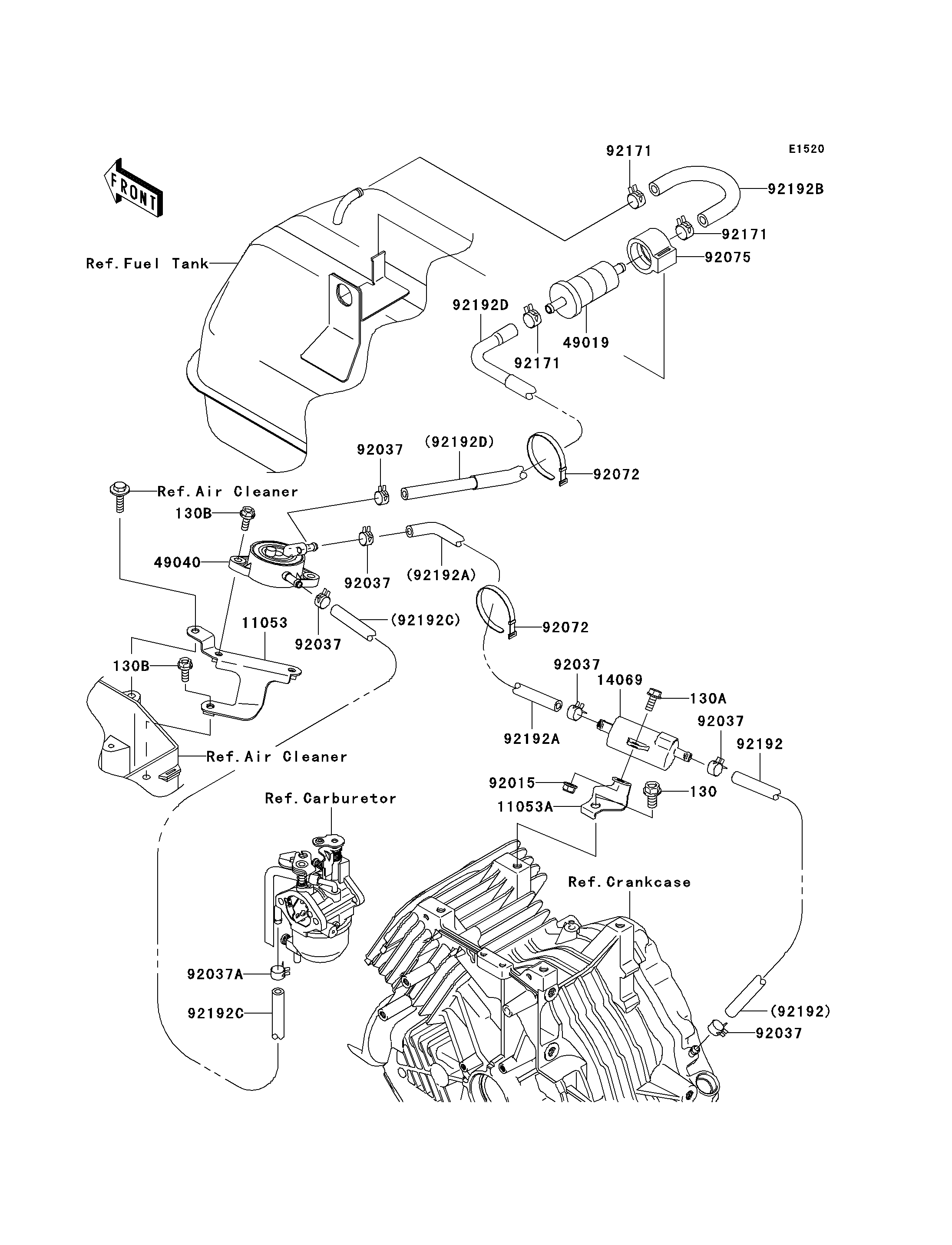

2008 Mule™ 600 - Fuel Pump

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130B
11053
11053A
14069
49019
49040
92015
92037
92037
92037
92037
92037
92037
92037A
92072
92072
92075
92171
92171
92171
92192
92192A
92192B
92192C
92192D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130AA0816 1
BOLT-FLANGED,6X14 130A 130BA0614 1
BOLT-FLANGED,6X16 130B 130BB0616 3
BRACKET,FUEL PUMP 11053 11053-1644 1
BRACKET,BREATHER 11053A 11053-1711 1
BREATHER 14069 14069-0003 1
FILTER-FUEL 49019 49019-1055 1
PUMP-FUEL 49040 49040-7001 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
CLAMP,TUBE 92037 92037-1505 6
CLAMP 92037A 92037-2113 1
BAND,L=186 92072 92072-056 2
DAMPER,FUEL FILTER 92075 92075-1853 1
CLAMP 92171 92171-0515 3
TUBE,5.8X10.8X270 92192 92192-0204 1
TUBE,PUMP-BREATHER 92192A 92192-0221 1
TUBE,7.5X12.5X200 92192B 92192-0243 1
TUBE,5.8X10.8X350 92192C 92192-0244 1
TUBE 92192D 92192-0300 1
