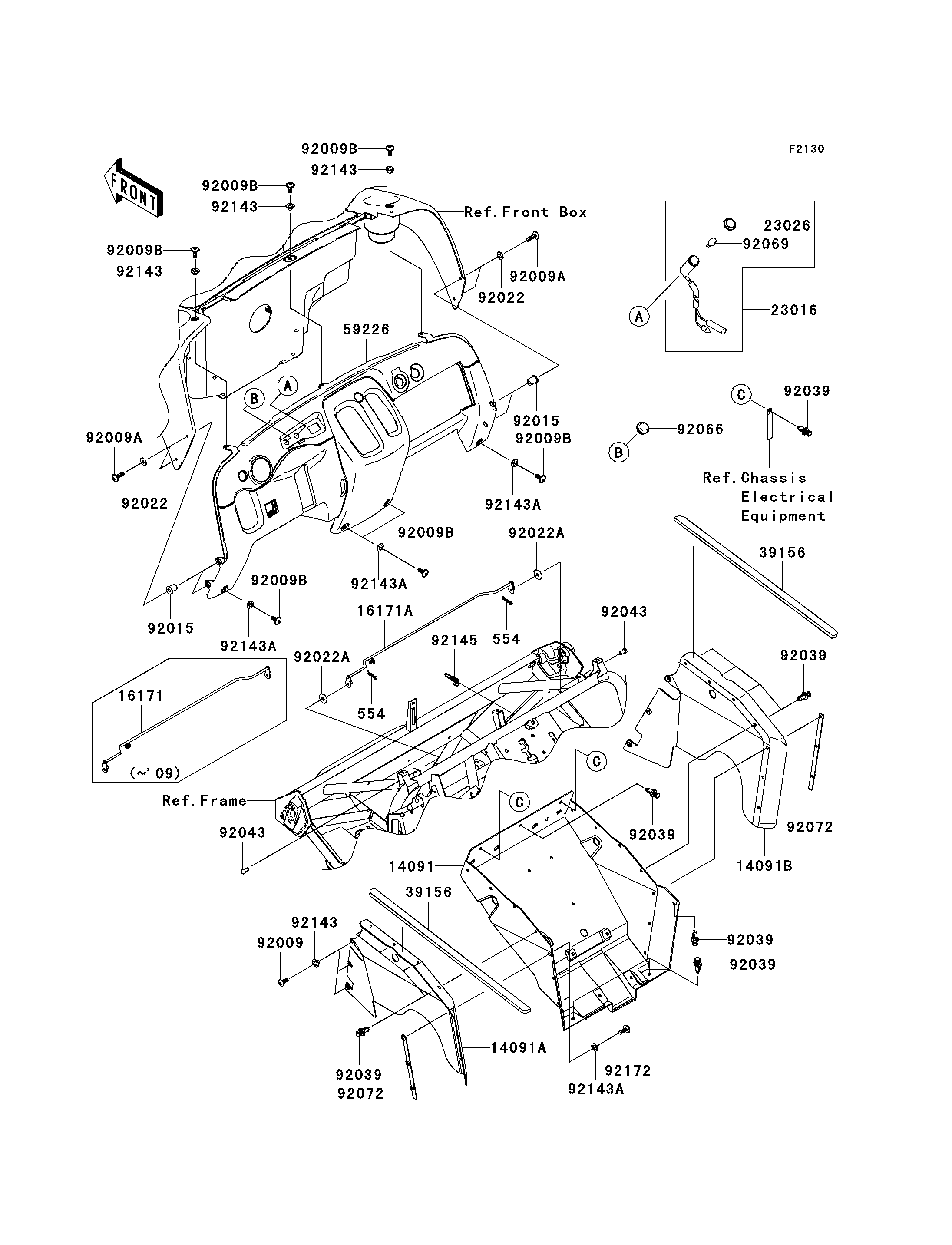

2008 Mule™ 600 - Frame Fittings(Front)

DOWNLOAD PDF
SELECT A NEW PART
554
554
14091
14091A
14091B
16171
23016
23026
39156
39156
59226
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015
92022
92022
92022A
92022A
92039
92039
92039
92039
92039
92039
92043
92043
92066
92069
92072
92072
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92145
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-SNAP 554 554DA0600 2
COVER,FLOOR,CNT 14091 14091-0408 1
COVER,FLOOR,SIDE,LH 14091A 14091-0424 1
COVER,FLOOR,SIDE,RH 14091B 14091-0425 1
LINK,HOOD 16171 16171-0010 1
LAMP-ASSY,TEMP 23016 23016-1128 1
LENS,TEMP LAMP 23026 23026-1157 1
PAD 39156 39156-0071 2
PANEL-CONTROL,GRAY 59226 59226-0009-284 1
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X22,BLACK 92009A 92009-1256 4
SCREW,6X16 92009B 92009-1621 7
NUT 92015 92015-1700 4
WASHER,6.5X16X1 92022 92022-1143 4
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 2
RIVET 92039 92039-1229 15
PIN,6X9 92043 92043-1626 2
PLUG 92066 92066-1231 1
BULB,12V 1.7W,T10 92069 92069-1059 1
BAND 92072 92072-0042 2
COLLAR 92143 92143-1057 9
COLLAR 92143A 92143-1087 10
SPRING 92145 92145-0215 1
SCREW,6X18 92172 92172-0002 6
