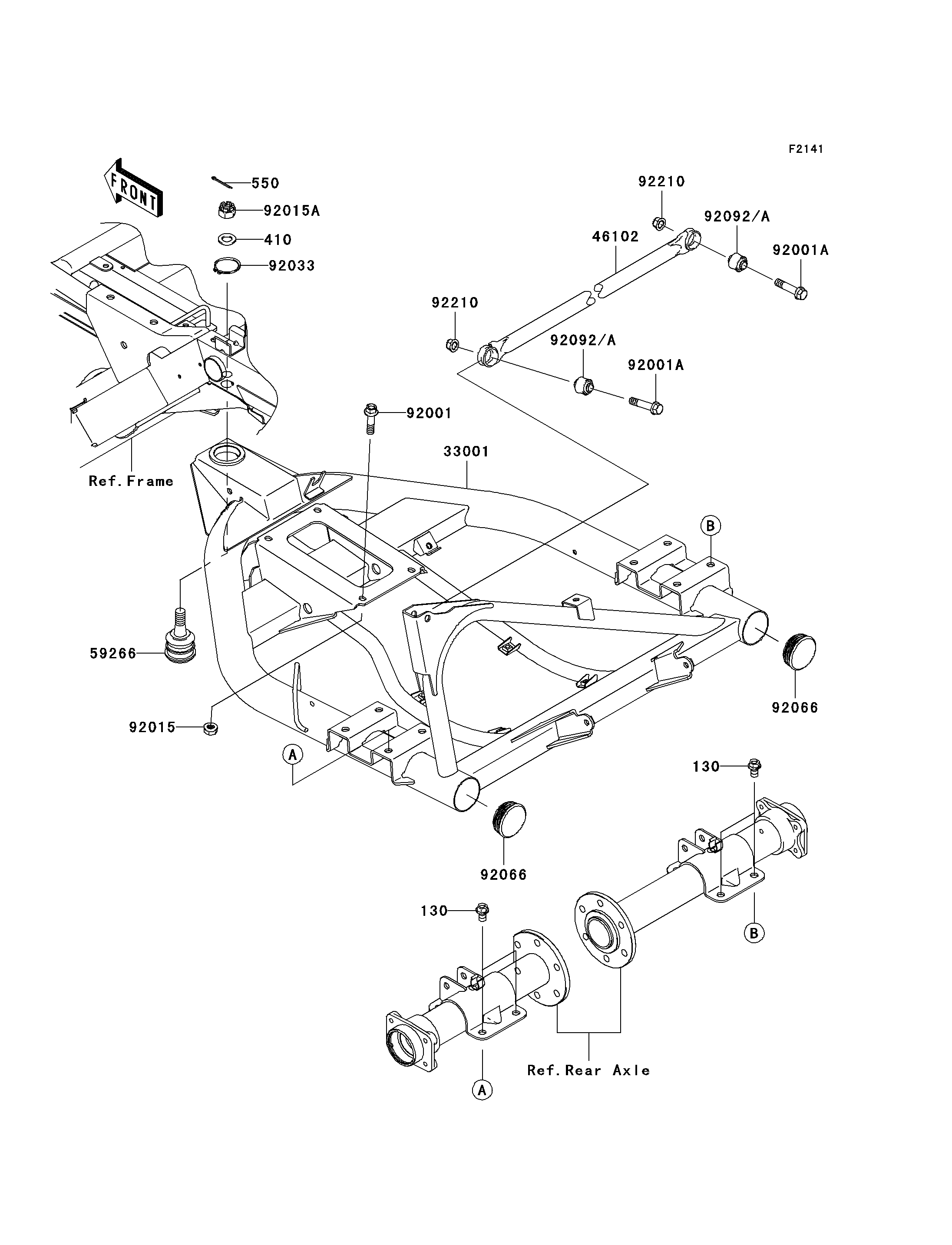

Parts Diagrams |
130
130
410
550
33001
46102
59266
92001
92001A
92001A
92015
92015A
92033
92066
92066
92092
92092
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,10X16 | 130 | 130BB1016 | 8 | ||
| WASHER-PLAIN-SMALL,14MM | 410 | 410AA1400 | 1 | ||
| PIN-COTTER,3.2X30 | 550 | 550AA3230 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-0061 | 1 | ||
| ROD | 46102 | 46102-1297 | 1 | ||
| JOINT-BALL | 59266 | 59266-1087 | 1 | ||
| BOLT,FLANGED,10X38 | 92001 | 92001-1293 | 4 | ||
| BOLT,FLANGED,10X44 | 92001A | 92001-1499 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 4 | ||
| NUT,CASTLE,14MM | 92015A | 92015-1841 | 1 | ||
| RING-SNAP | 92033 | 92033-0050 | 1 | ||
| PLUG | 92066 | 92066-0044 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-1072 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 |
| BOLT-FLANGED,10X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,14MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,3.2X30 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-BALL | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X38 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X44 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,14MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
