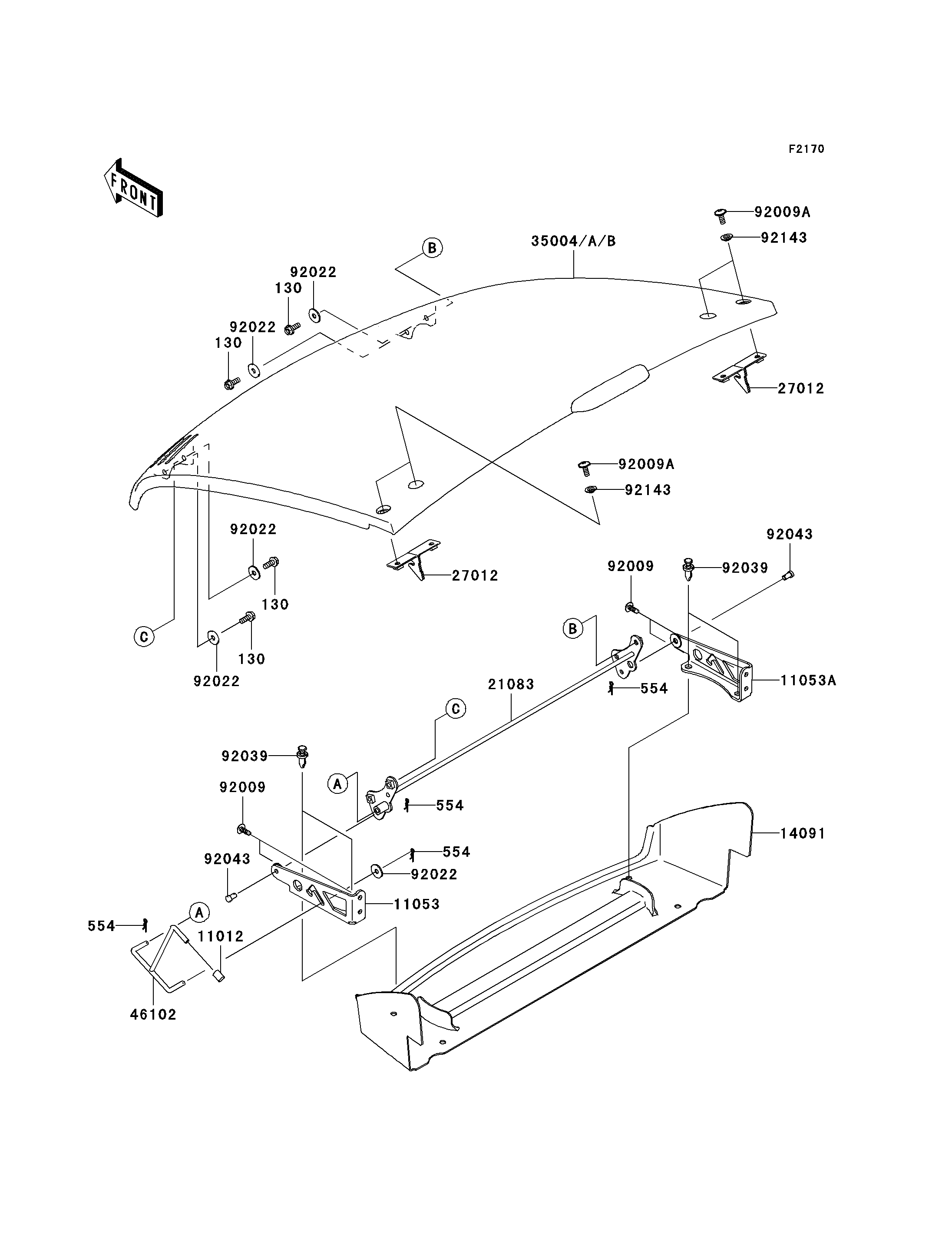

Parts Diagrams |
130
130
130
130
554
554
554
554
11012
11053
11053A
14091
21083
27012
27012
35004A
46102
92009
92009
92009A
92009A
92022
92022
92022
92022
92022
92039
92039
92043
92043
92143
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 4 | ||
| PIN-SNAP | 554 | 554DA0600 | 4 | ||
| CAP | 11012 | 11012-1899 | 1 | ||
| BRACKET | 11053 | 11053-1451 | 1 | ||
| BRACKET | 11053A | 11053-1452 | 1 | ||
| COVER | 14091 | 14091-0368 | 1 | ||
| ARM | 21083 | 21083-0021 | 1 | ||
| HOOK | 27012 | 27012-0065 | 2 | ||
| FENDER-FRONT,HOOD,A.RED | 35004A | 35004-0029-260 | 1 | ||
| ROD | 46102 | 46102-0048 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 4 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 4 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 5 | ||
| RIVET | 92039 | 92039-1229 | 4 | ||
| PIN,6X9 | 92043 | 92043-1626 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 4 | ||
| FENDER-FRONT,HOOD,W.GREEN | 35004B | 35004-0029-286 | 1 | CAUS |
