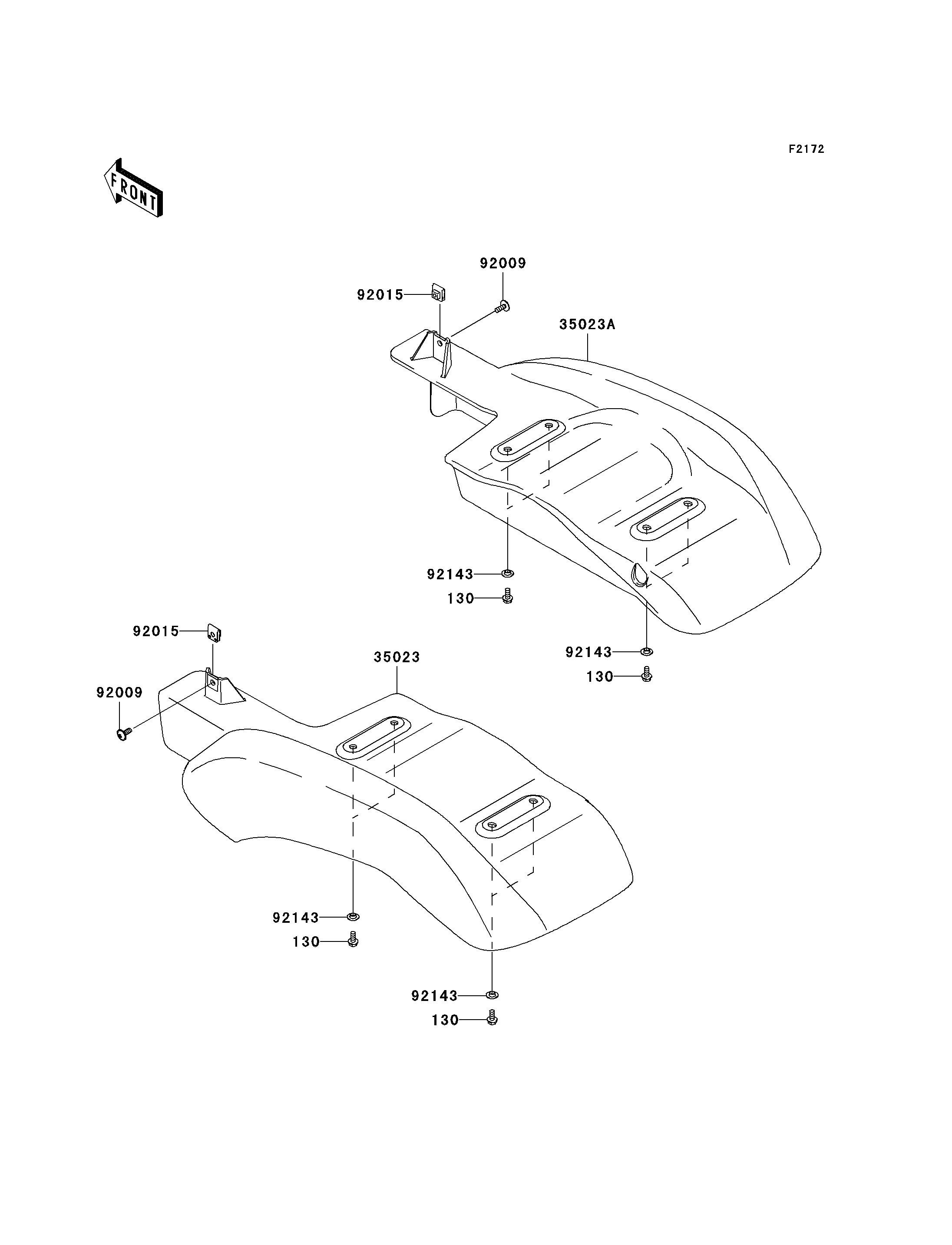

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 8
FENDER-REAR,LH,F.BLACK 35023 35023-0045-6Z 1
FENDER-REAR,RH,F.BLACK 35023A 35023-0046-6Z 1
SCREW,6X16 92009 92009-1621 2
NUT,CLAMP,6MM 92015 92015-1678 2
COLLAR 92143 92143-1087 8
