Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

461
14024
46003
92210

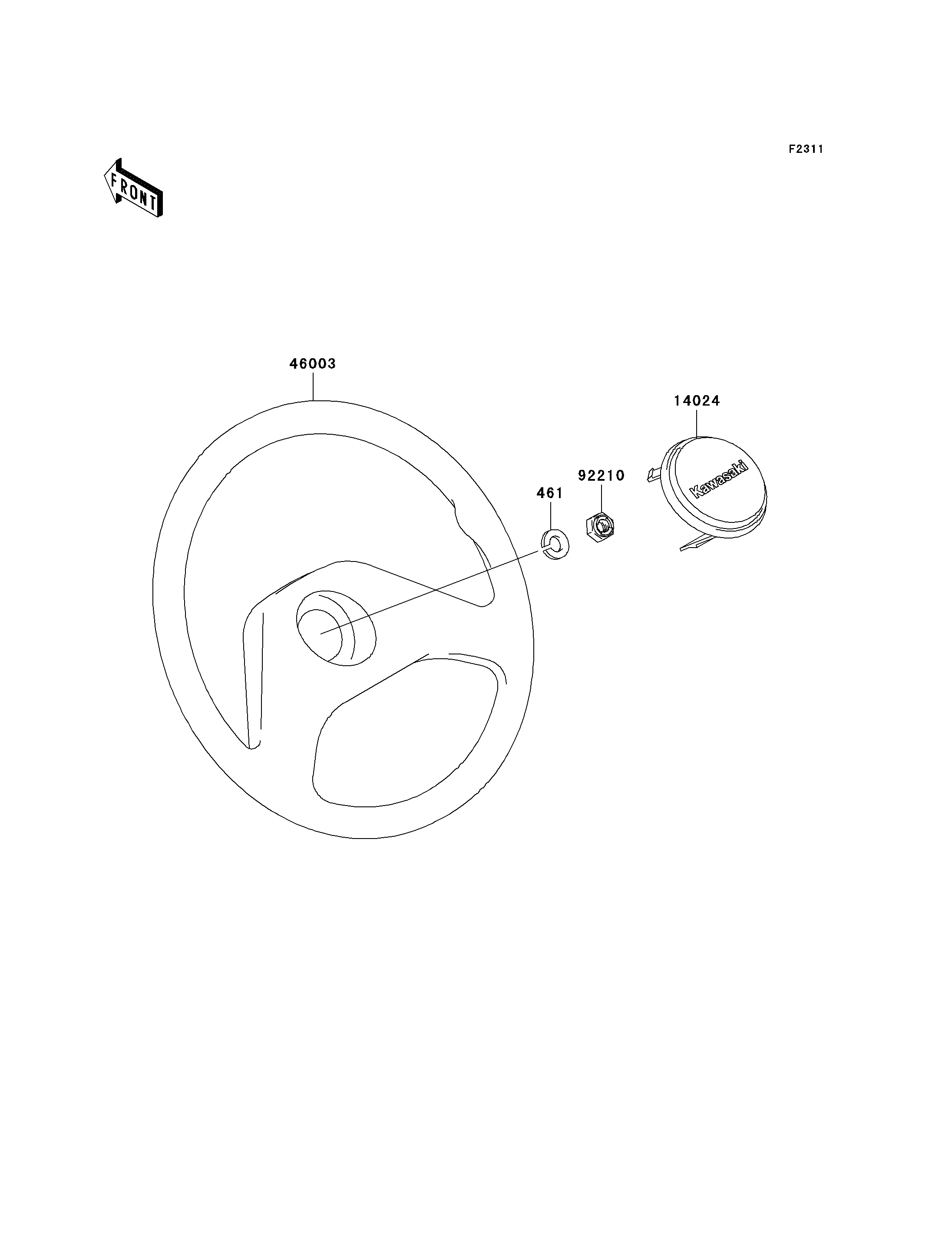

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-SPRING,12MM 461 461DA1200 1
COVER,HORN SWITCH 14024 14024-1574 1
HANDLE,STEERING 46003 46003-1265 1
NUT,LOCK,12MM 92210 92210-1249 1
