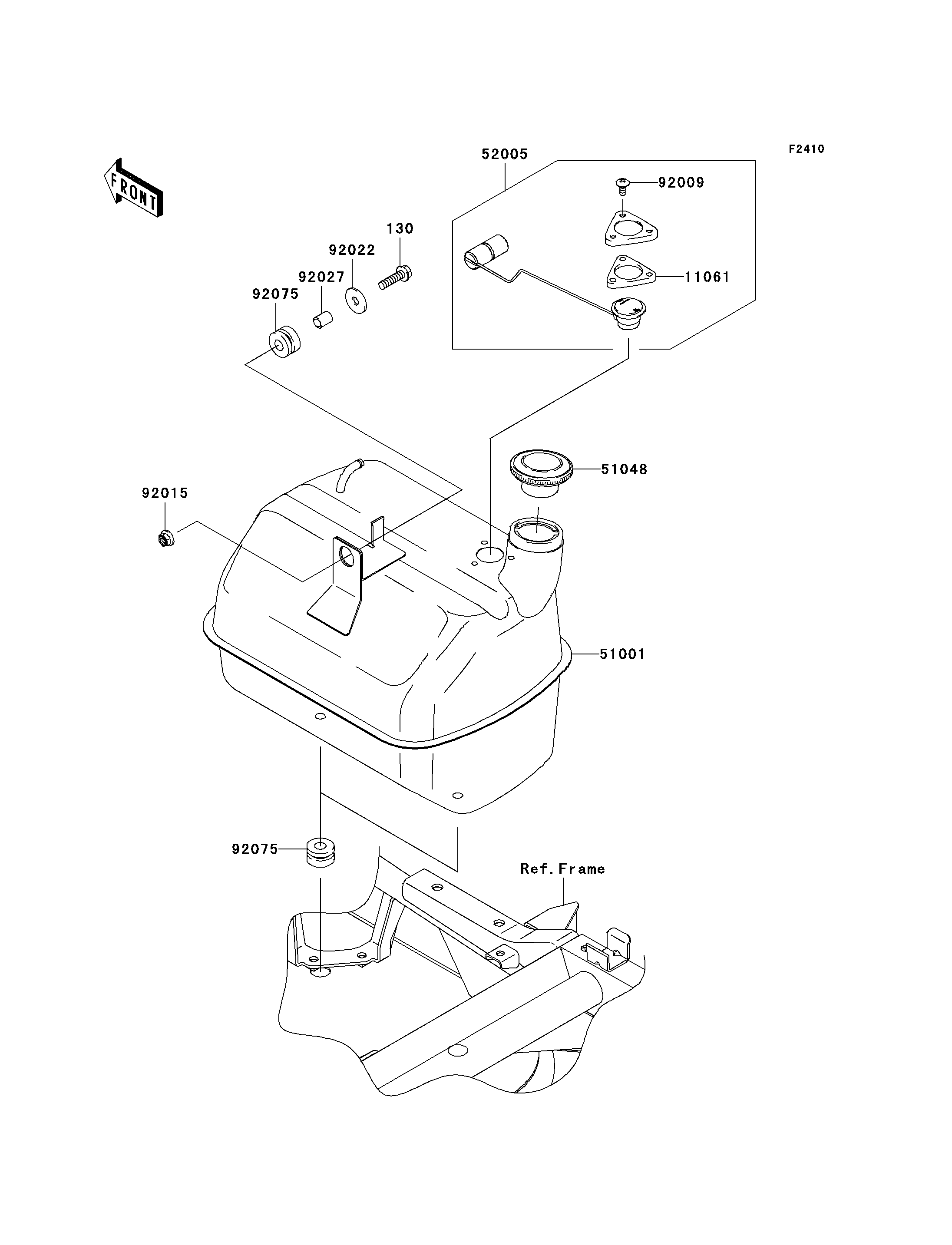

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130AA0830 1 CNUS
GASKET,FUEL GAUGE 11061 11061-0120 1 CNUS
TANK-COMP-FUEL 51001 51001-0093 1 CNUS
CAP-ASSY-TANK,FUEL 51048 51048-0005 1 CNUS
GAUGE,FUEL 52005 52005-0012 1 CNUS
SCREW,6X14 92009 92009-1541 3 CNUS
NUT,LOCK,FLANGED,8MM 92015 92015-1397 1 CNUS
WASHER,9X28X2.3 92022 92022-1632 1 CNUS
COLLAR,8.8X12X15.5 92027 92027-1081 1 CNUS
DAMPER 92075 92075-1736 3 CNUS
