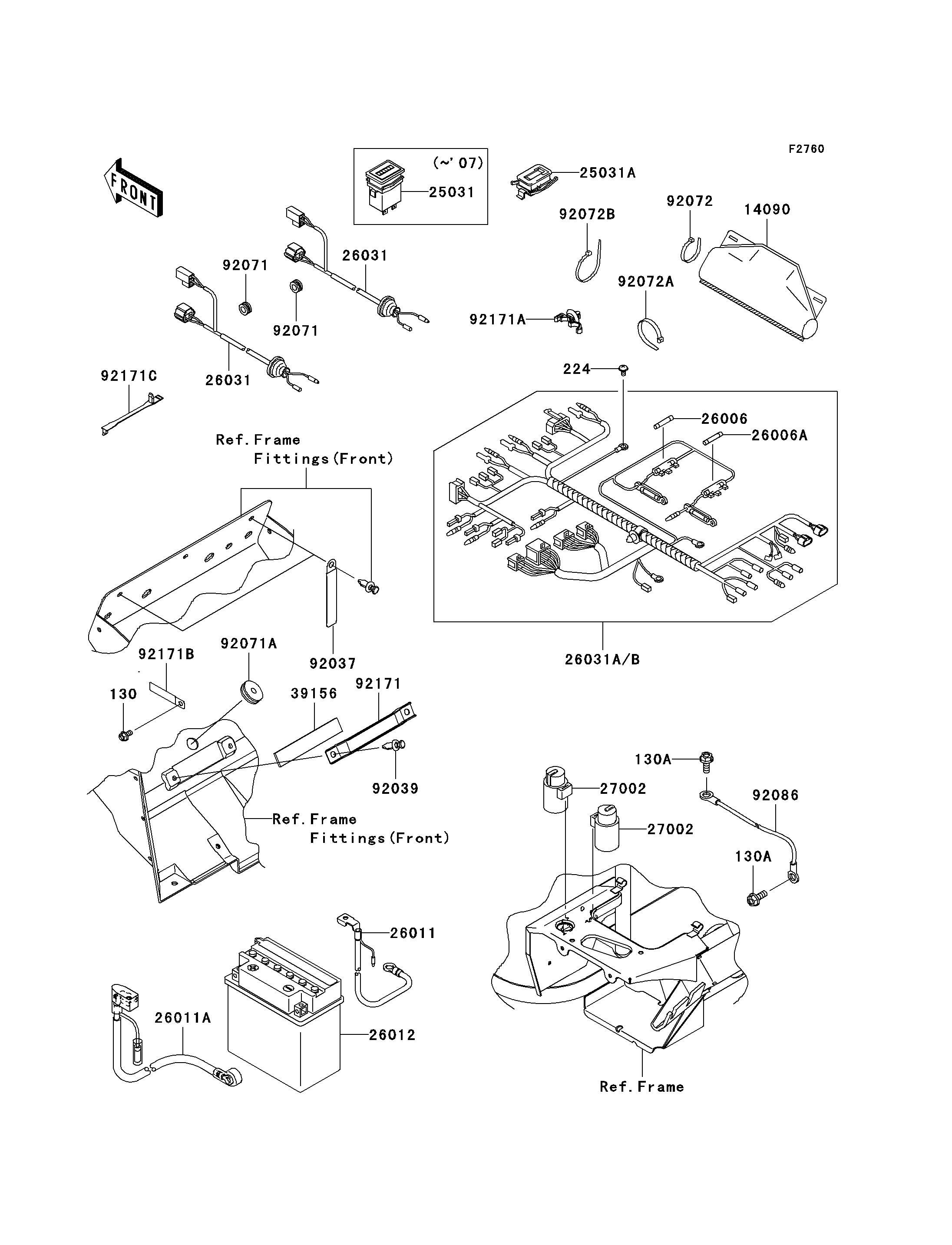

2008 Mule™ 600 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
224
14090
25031A
26006
26006A
26011
26011A
26012
26031
26031
26031A
27002
27002
39156
92037
92039
92071
92071
92071A
92072
92072A
92072B
92086
92171
92171A
92171B
92171C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130AA0612 1
BOLT-FLANGED,8X20 130A 130BB0820 2
SCREW-PAN-WP-CROS,5X8 224 224AA0508 1
COVER,COUPLER 14090 14090-1331 3
METER-ASSY,HOUR 25031A 25031-7506 1
FUSE,10A,L=30 26006 26006-1002 2
FUSE,30A,L=32 26006A 26006-1065 2
WIRE-LEAD,BATTERY(-) 26011 26011-0040 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0048 1
BATTERY,YB14A-A2,12V 14AH 26012 26012-0011 1
HARNESS,HEAD LAMP 26031 26031-0155 2
HARNESS,MAIN 26031A 26031-0306 1
RELAY-ASSY 27002 27002-1051 2
PAD 39156 39156-0063 1
CLAMP,HARNESS,L=100 92037 92037-1636 2
RIVET 92039 92039-1229 2
GROMMET 92071 92071-1128 2
GROMMET 92071A 92071-1136 1
BAND,L=123 92072 92072-030 3
BAND,L=149 92072A 92072-031 1
BAND,L=188 92072B 92072-1239 4
WIRE 92086 92086-1054 1
CLAMP 92171 92171-0301 1
CLAMP 92171A 92171-0453 5
CLAMP 92171B 92171-0652 1
CLAMP 92171C 92171-1365 1
