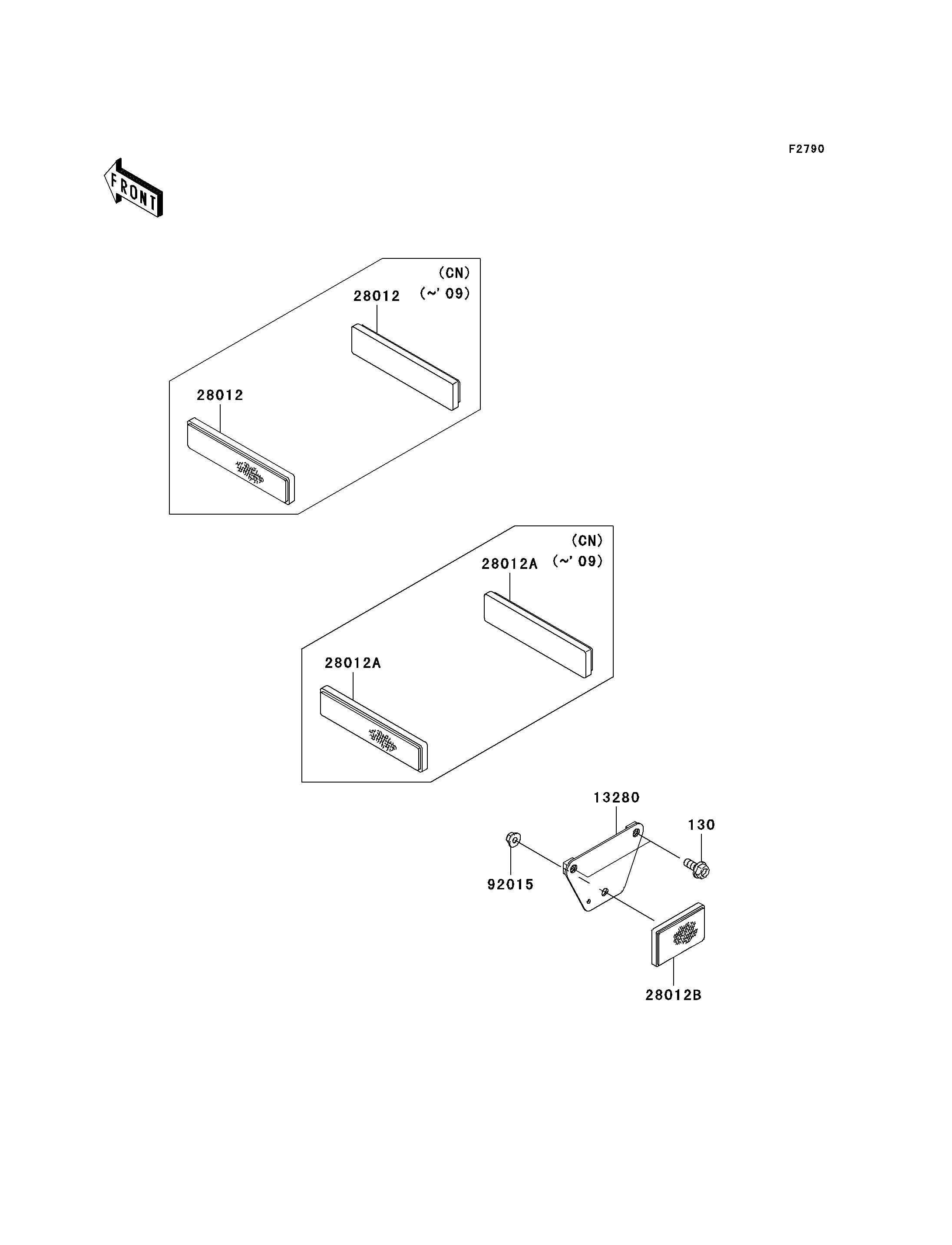

130
13280
28012B
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 2
HOLDER,REFLECTOR 13280 13280-0146 1
REFLECTOR-REFLEX 28012B 28012-1088 1
NUT,FLANGED,5MM 92015 92015-1259 1
REFLECTOR-REFLEX,FR 28012 28012-1086 2 CN
REFLECTOR-REFLEX,RR 28012A 28012-1087 2 CN
