130
39012
39156
92027
92071
99999

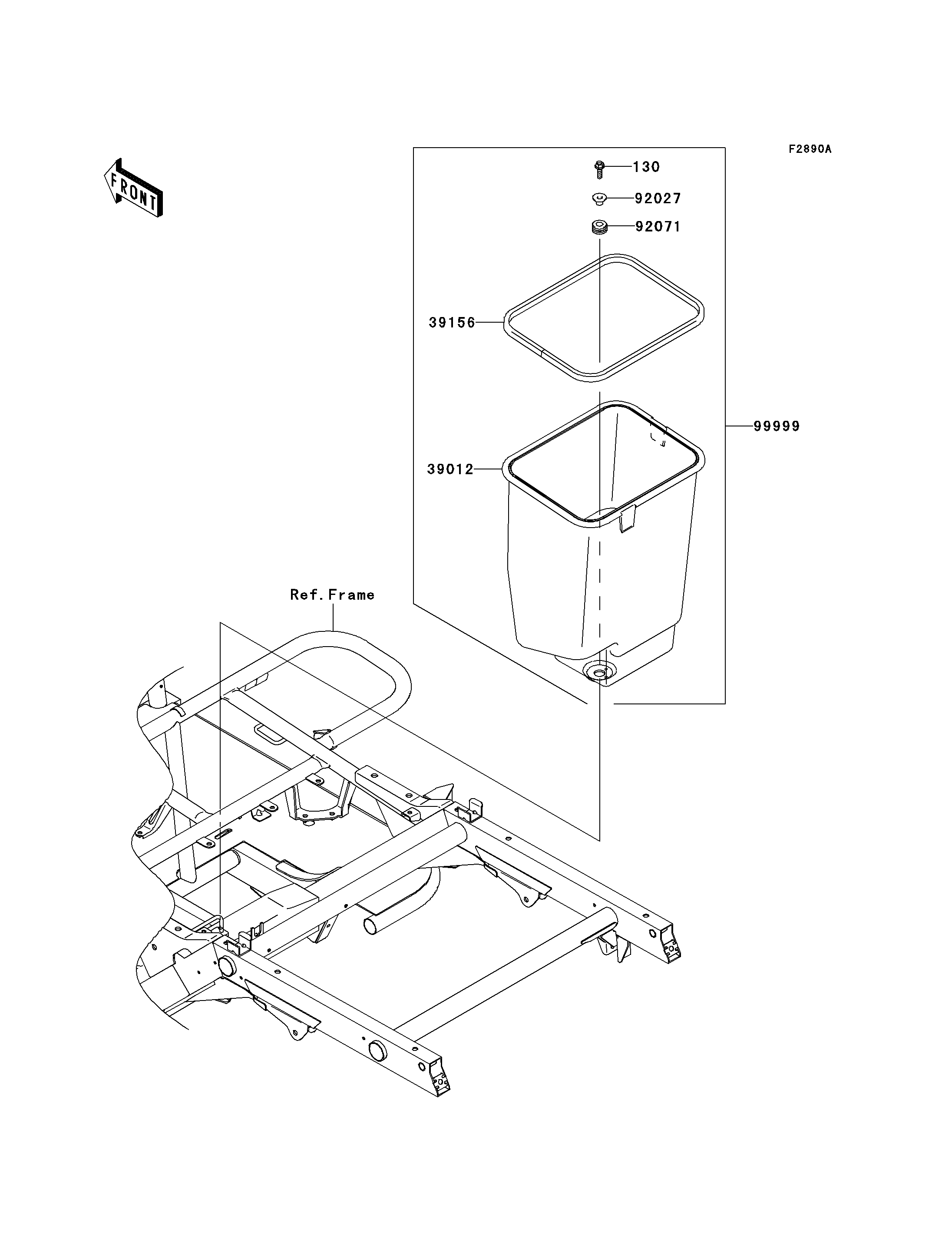

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130BB0620 1 (OPTION)
CASE-STORAGE 39012 39012-0006 1 (OPTION)
PAD,STORAGE CASE 39156 39156-0052 1 (OPTION)
COLLAR 92027 92027-1767 1 (OPTION)
GROMMET 92071 92071-1010 1 (OPTION)
KIT.,STORAGE BOX 99999 99999-0054 1 (OPTION)
