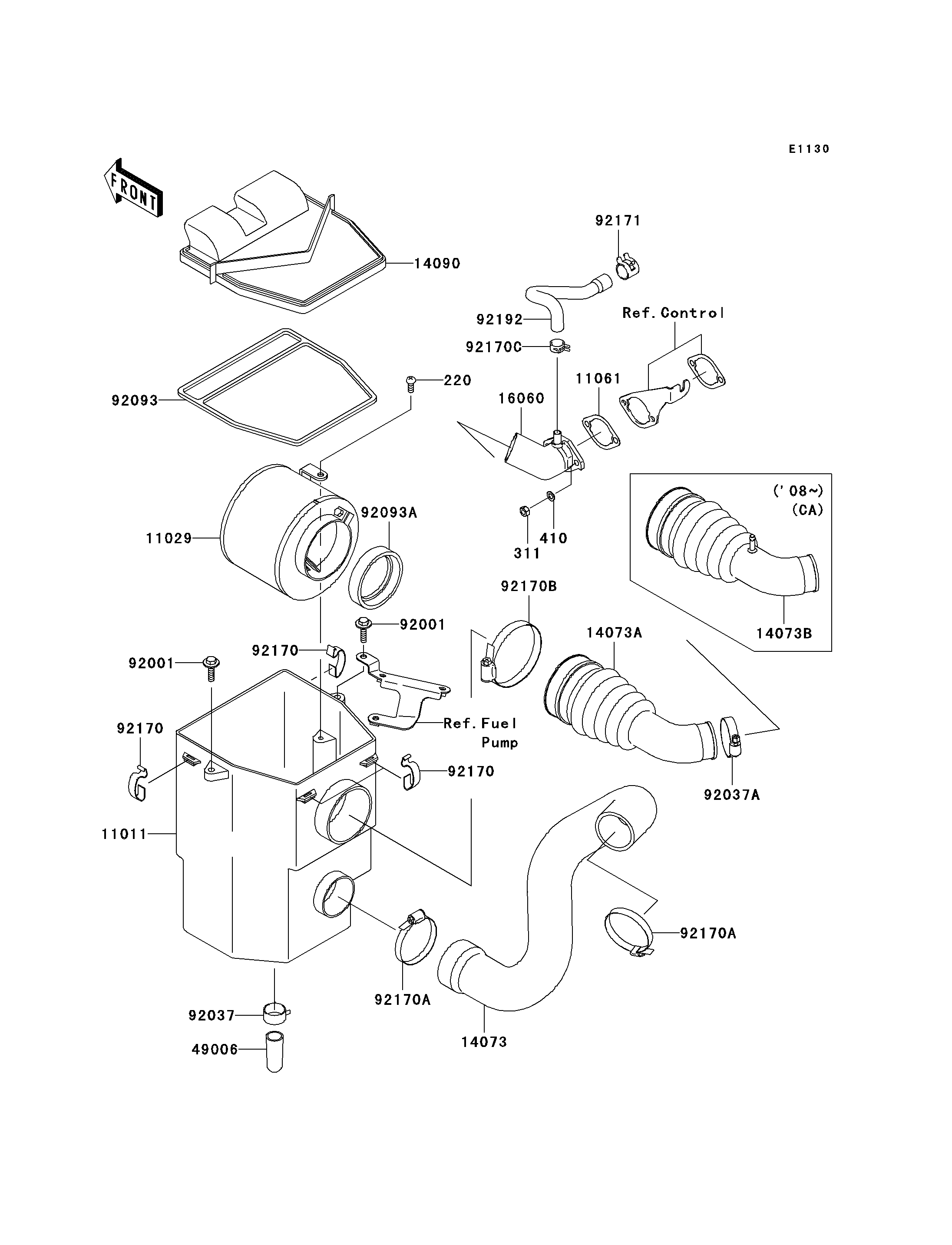

2008 Mule 610 4x4 Hardwoods Green HD - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
220
311
410
11011
11029
11061
14073
14090
16060
49006
92001
92001
92037
92037A
92093
92093A
92170
92170
92170
92170A
92170A
92170B
92170C
92171
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS,6X14 220 220AA0614 1
NUT-HEX,6MM 311 311AA0600 2
WASHER-PLAIN-SMALL 410 410AA0600 2
CASE-AIR FILTER 11011 11011-1367 1
ELEMENT-ASSY-AIR FILTER 11029 11029-1004 1
GASKET 11061 11061-7026 1
DUCT,FRAME-AIR FILTER 14073 14073-0072 1
COVER,AIR FILTER 14090 14090-1106 1
PIPE-INTAKE 16060 16060-2210 1
BOOT 49006 49006-1351 1
BOLT,6X25,W/WASHER 92001 92001-1140 2
CLAMP,HOSE CLIP 92037 92037-1460 1
CLAMP 92037A 92037-506 1
SEAL,AIR FILTER 92093 92093-1241 1
SEAL,DUST 92093A 92093-1322 1
CLAMP,AIR FILTER 92170 92170-1211 4
CLAMP 92170A 92170-1674 2
CLAMP 92170B 92170-1679 1
CLAMP 92170C 92170-7003 1
CLAMP 92171 92171-7013 1
TUBE,BREATHER 92192 92192-2084 1
DUCT,AIR FILTER-IN.PIPE 14073A 14073-0074 1 CNUS
DUCT,AIR FILTER-IN.PIPE 14073B 14073-0193 1 CA
