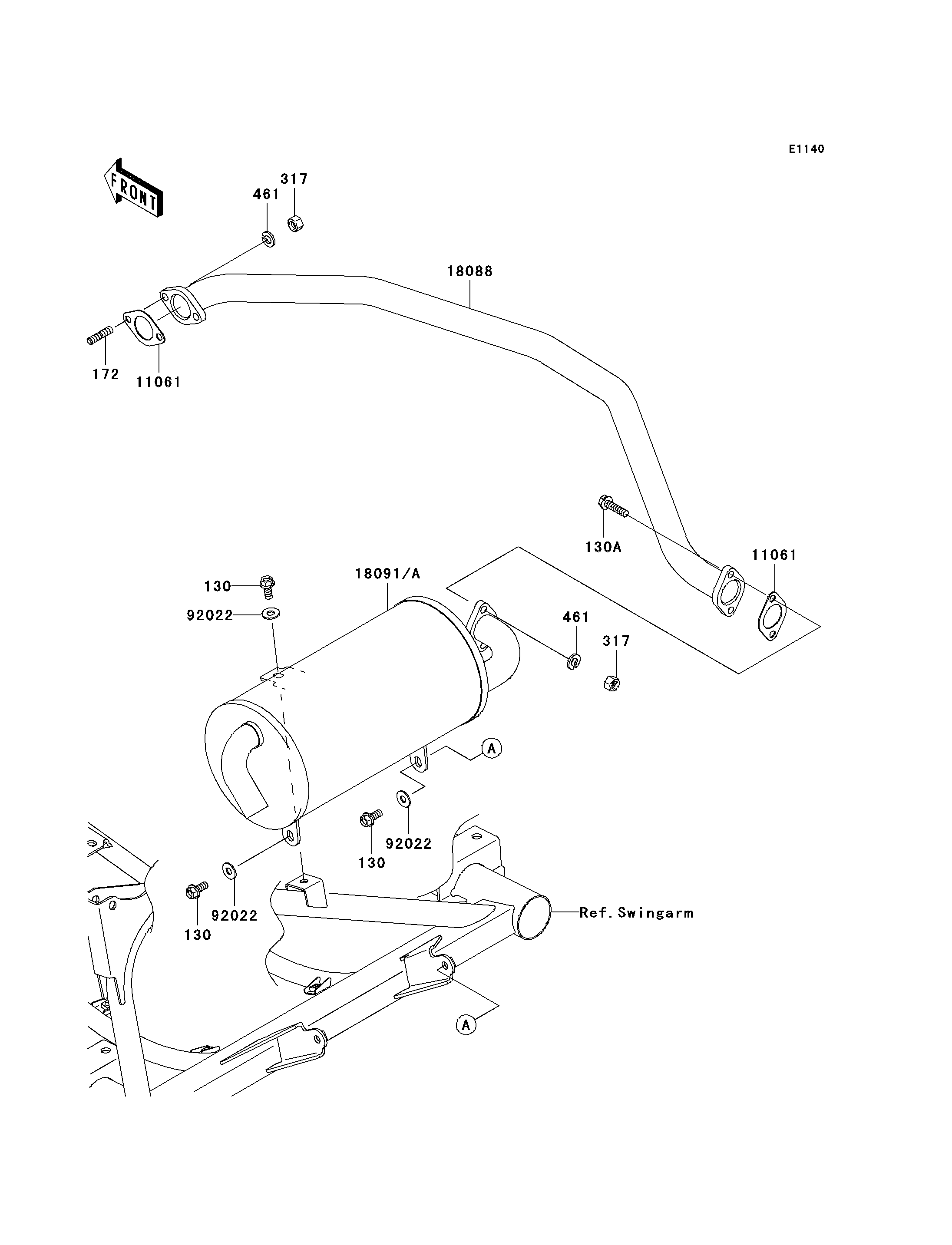

2008 Mule 610 4x4 Hardwoods Green HD - Muffler(s)

130
130
130
130A
172
317
317
461
461
11061
11061
18088
92022
92022
92022
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130CB0816 3
BOLT-FLANGED,8X30 130A 130CB0830 2
BOLT-STUD,8X18 172 172BA0818 2
NUT-HEX-SMALL 317 317R0800 4
WASHER-SPRING,8MM 461 461DA0800 4
GASKET 11061 11061-0132 2
PIPE-EXHAUST 18088 18088-0191 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 3
BODY-COMP-MUFFLER 18091 18091-0235 1 CNUS
BODY-COMP-MUFFLER 18091A 18091-0487 1 CA
