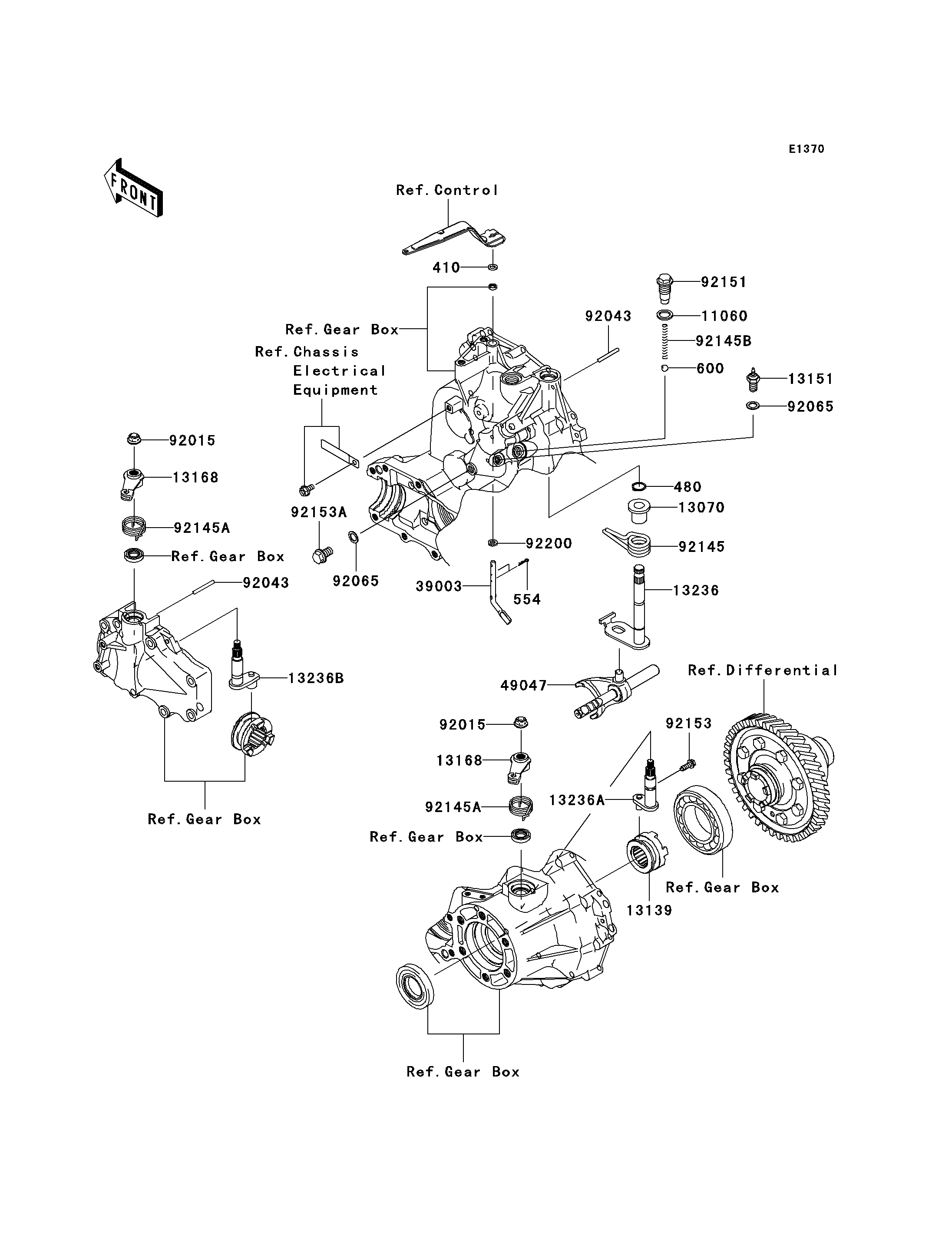

2008 Mule 610 4x4 Hardwoods Green HD - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
410
480
554
600
11060
13070
13139
13151
13168
13168
13236
13236A
13236B
39003
49047
92015
92015
92043
92043
92065
92065
92145
92145A
92145A
92145B
92151
92153
92153A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL 410 410AA0600 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
PIN-SNAP 554 554DA0600 2
BALL-STEEL,5/16" 600 600A1000 1
GASKET,14X20X2 11060 11060-1287 1
GUIDE 13070 13070-0030 1
SHIFTER,DIFF LOCK 13139 13139-0008 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
LEVER,DIFF LOCK 13168 13168-1523 2
LEVER-COMP,FR/RR 13236 13236-0036 1
LEVER-COMP,DIFF LOCK 13236A 13236-0037 1
LEVER-COMP,2WD/4WD 13236B 13236-0038 1
ARM-PIVOT,GOVERNOR 39003 39003-1053 1
ROD-SHIFT,FR/RR 49047 49047-0013 1
NUT,FLANGED,8MM 92015 92015-1406 2
PIN,4X34.8 92043 92043-1579 2
GASKET,10.5X16X1 92065 92065-058 2
SPRING 92145 92145-0146 1
SPRING 92145A 92145-0226 2
SPRING,CHANGE POSITION 92145B 92145-1297 1
BOLT,CHANGE POSITION 92151 92151-1687 1
BOLT,6X16.6 92153 92153-0591 1
BOLT,10X16 92153A 92153-0621 1
WASHER,6.5X11.5X2.0 92200 92200-2029 1
