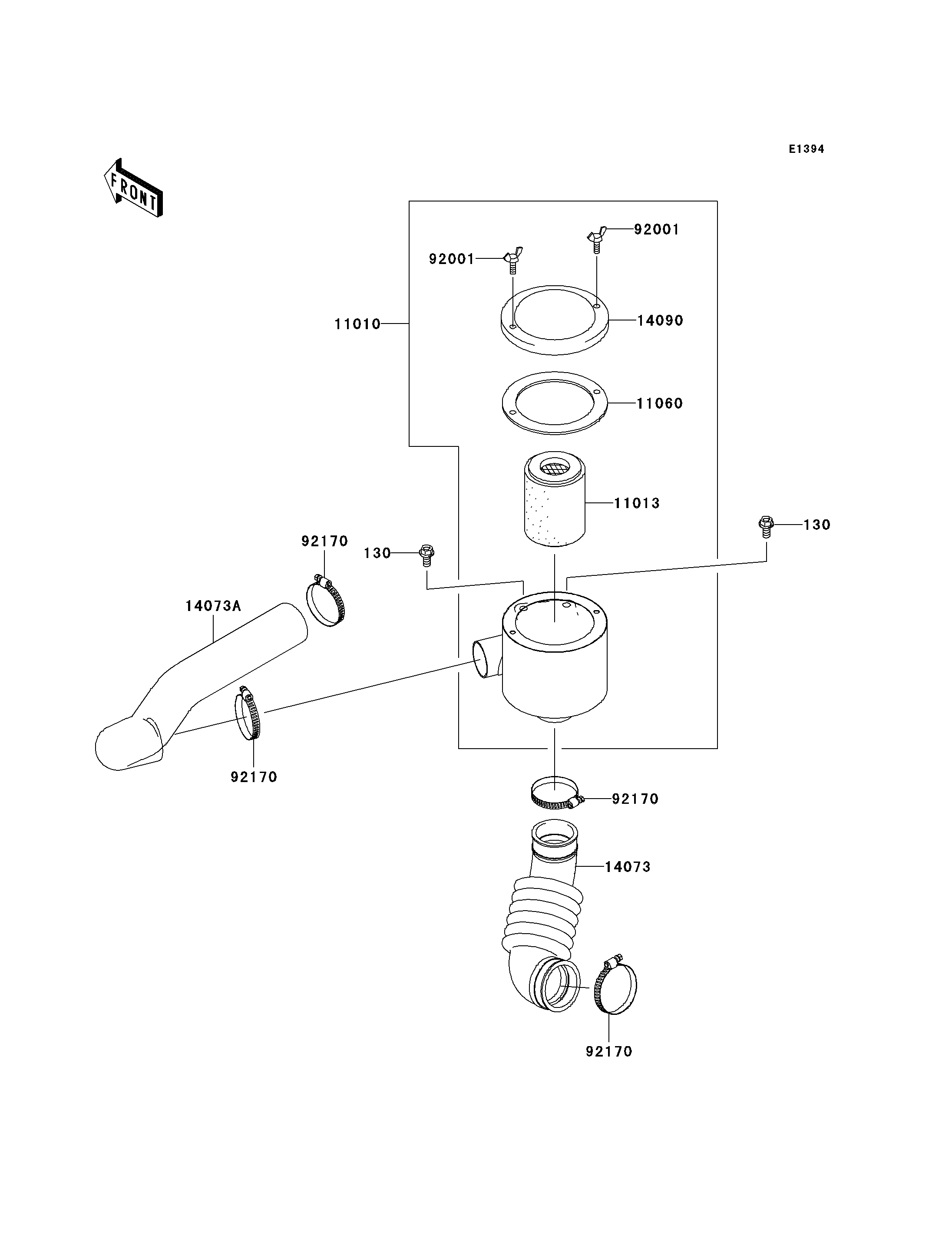

2008 Mule 610 4x4 Hardwoods Green HD - Air Cleaner-Belt Converter

130
130
11010
11013
11060
14073
14073A
14090
92001
92001
92170
92170
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130BB0816 2
FILTER-ASSY-AIR 11010 11010-0055 1
ELEMENT-AIR FILTER 11013 11013-1263 1
GASKET,AIR FILTER CASE 11060 11060-1975 1
DUCT,AIR FILTER-CASE 14073 14073-0061 1
DUCT,BAR-AIR FILTER 14073A 14073-0080 1
COVER,AIR FILTER 14090 14090-1766 1
BOLT,WING,6X15 92001 92001-1703 2
CLAMP 92170 92170-1674 4
