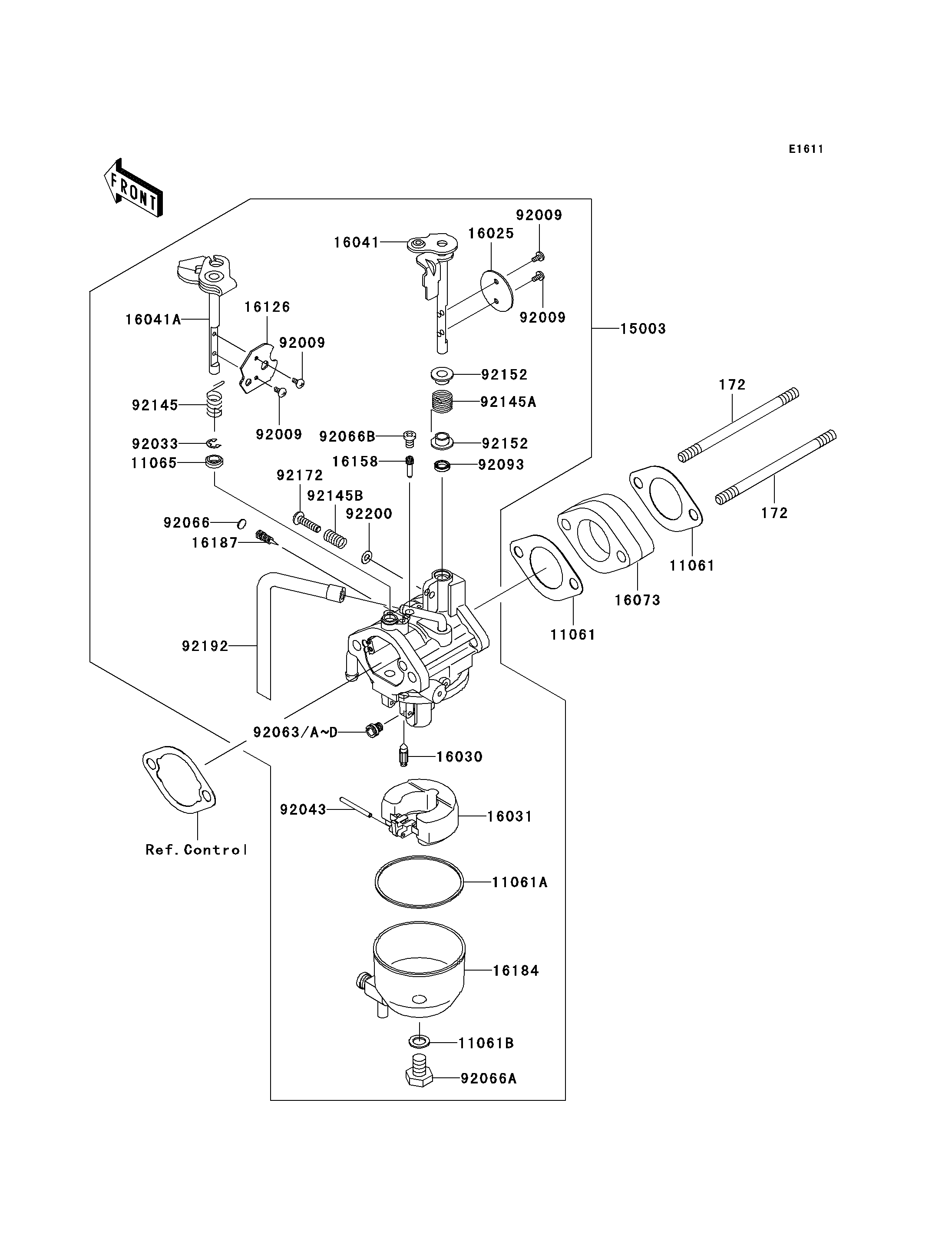

2008 Mule 610 4x4 Hardwoods Green HD - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
172
172
11061
11061
11061A
11061B
11065
15003
16025
16030
16031
16041
16041A
16073
16126
16158
16184
16187
92009
92009
92009
92009
92033
92043
92063
92063A
92063B
92063C
92063D
92066
92066A
92066B
92093
92145
92145A
92145B
92152
92152
92172
92192
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD,6X95 172 172BA0695 2
GASKET,HEAD-CARB 11061 11061-7027 2
GASKET,FLOAT CHAMBER 11061A 11061-7044 1
GASKET,CHAMBER 11061B 11061-7045 1
CAP 11065 11065-7012 1
CARBURETOR-ASSY 15003 15003-2943 1
VALVE-THROTTLE 16025 16025-7008 1
VALVE-FLOAT 16030 16030-7004 1
FLOAT 16031 16031-7004 1
SHAFT-CARBURETOR 16041 16041-2261 1
SHAFT-CARBURETOR 16041A 16041-2262 1
INSULATOR 16073 16073-2229 1
VALVE 16126 16126-2242 1
JET-SLOW,#54 16158 16158-2051 1
CHAMBER-ASSY-FLOAT 16184 16184-7018 1
NEEDLE-JET 16187 16187-7002 1
SCREW 92009 92009-2049 4
RING-SNAP 92033 92033-7007 1
PIN 92043 92043-7016 1
JET-MAIN,#99 92063 92063-2458 AR (OPTION)
JET-MAIN,#105 92063A 92063-7013 AR (OPTION)
JET-MAIN,#102 92063B 92063-7014 AR (OPTION)
JET-MAIN,#109 92063C 92063-7044 AR (OPTION)
JET-MAIN,#112 92063D 92063-7045 1
PLUG 92066 92066-7009 1
PLUG 92066A 92066-7020 1
PLUG 92066B 92066-7021 1
SEAL,D=5.9 92093 92093-7001 1
SPRING 92145 92145-2151 1
SPRING 92145A 92145-2152 1
SPRING 92145B 92145-7039 1
COLLAR 92152 92152-7008 2
SCREW 92172 92172-7007 1
TUBE 92192 92192-2085 1
WASHER 92200 92200-7025 1
