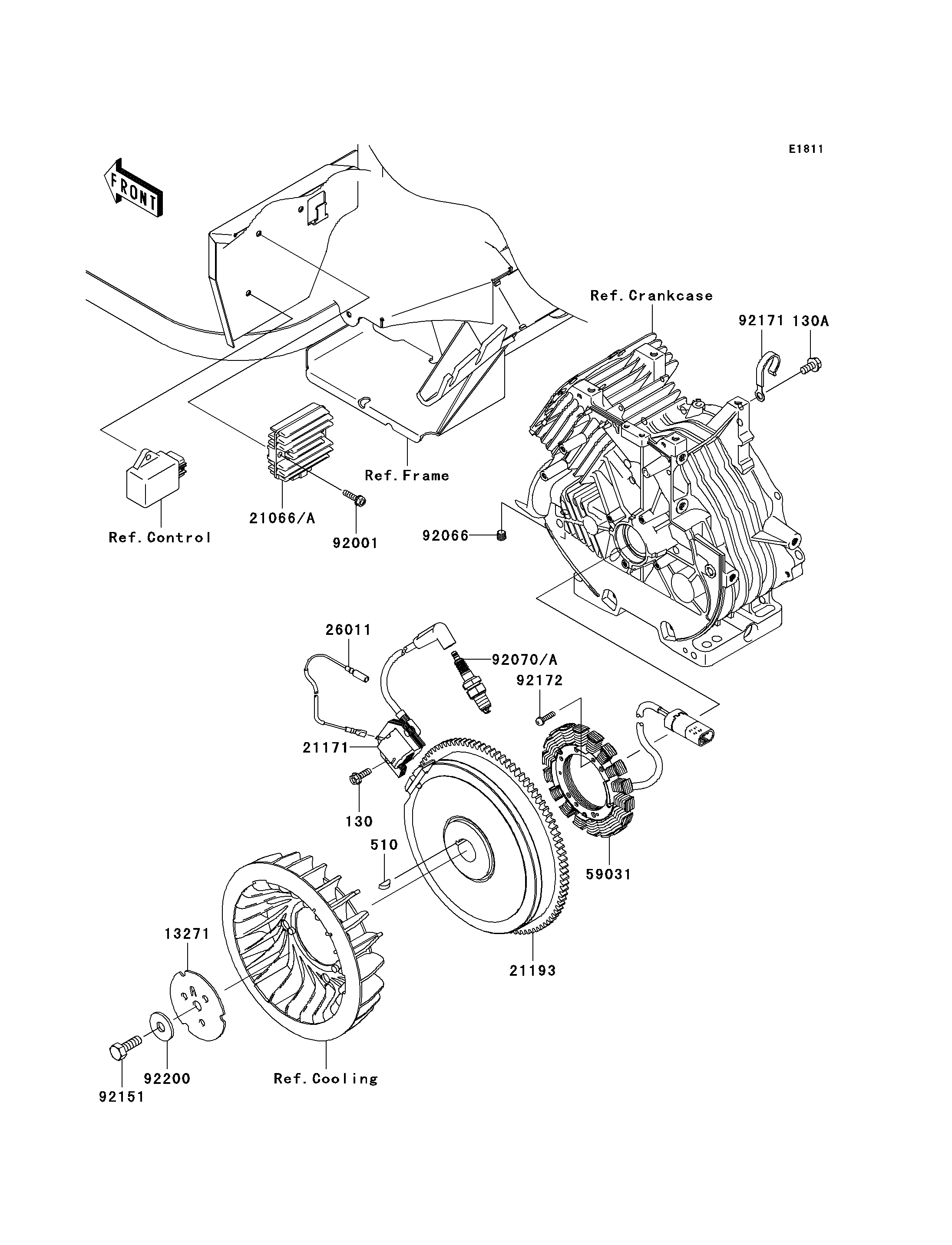

2008 Mule 610 4x4 Hardwoods Green HD - Generator/Ignition Coil

130
130A
510
13271
21066
21171
21193
26011
59031
92001
92066
92070A
92151
92171
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130AA0620 2
BOLT-FLANGED,8X16 130A 130AA0816 1
KEY-WOODRUFF 510 510A5100 1
PLATE,FAN 13271 13271-7029 1
REGULATOR-VOLTAGE 21066 21066-0010 1
COIL-ASSY-IGNITION 21171 21171-7035 1
FLYWHEEL-ASSY 21193 21193-7023 1
WIRE-LEAD 26011 26011-7014 1
COIL-CHARGING 59031 59031-2132 1
BOLT,FLANGED,6X22 92001 92001-1352 2
PLUG 92066 92066-7002 1
PLUG-SPARK,BPR5ES(NGK),SOLID 92070A 92070-2088 1
BOLT,12X30 92151 92151-2097 1
CLAMP 92171 92171-7005 1
SCREW,5X20 92172 92172-7018 4
WASHER 92200 92200-7002 1
