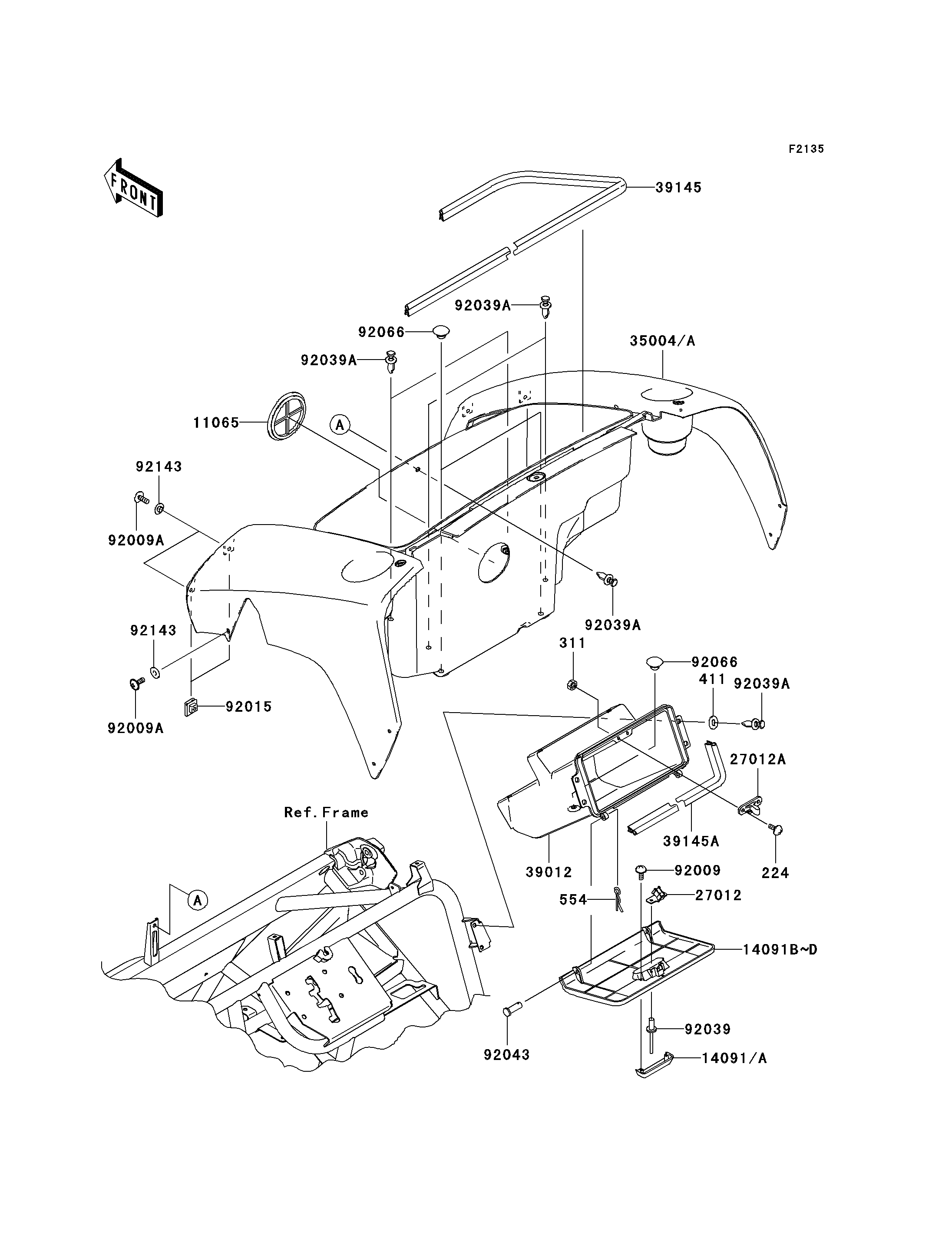

2008 Mule 610 4x4 Hardwoods Green HD - Front Box

DOWNLOAD PDF
SELECT A NEW PART
224
311
411
554
11065
14091
14091D
27012
27012A
35004A
39012
39145
39145A
92009
92009A
92009A
92015
92039
92039A
92039A
92039A
92039A
92043
92066
92066
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,4X12 224 224AB0412 2
NUT-HEX 311 311AB0400 2
WASHER-PLAIN 411 411AA0800 4
PIN-SNAP 554 554DA0600 2
CAP,F.BLACK 11065 11065-1053-6Z 1
COVER,STORAGE GRIP,S.M.BROWN 14091 14091-1228-275 1
COVER,CONTROL PANEL,C.H.GREEN 14091D 14091-7544-396 1
HOOK 27012 27012-1607 1
HOOK 27012A 27012-1612 1
FENDER-FRONT,STORAGE,C.H.GREEN 35004A 35004-0049-826 1
CASE-STORAGE,RH,S.M.BROWN 39012 39012-1061-275 1
TRIM-SEAL,L=1940 39145 39145-0007 1
TRIM-SEAL,L=774 39145A 39145-1130 1
SCREW,TAPPING,4X12 92009 92009-1444 2
SCREW,6X16 92009A 92009-1621 6
NUT,CLAMP,6MM 92015 92015-1678 4
RIVET 92039 92039-1041 2
RIVET 92039A 92039-1229 9
PIN,6X14.5 92043 92043-125 2
PLUG 92066 92066-1485 3
COLLAR 92143 92143-1087 6
