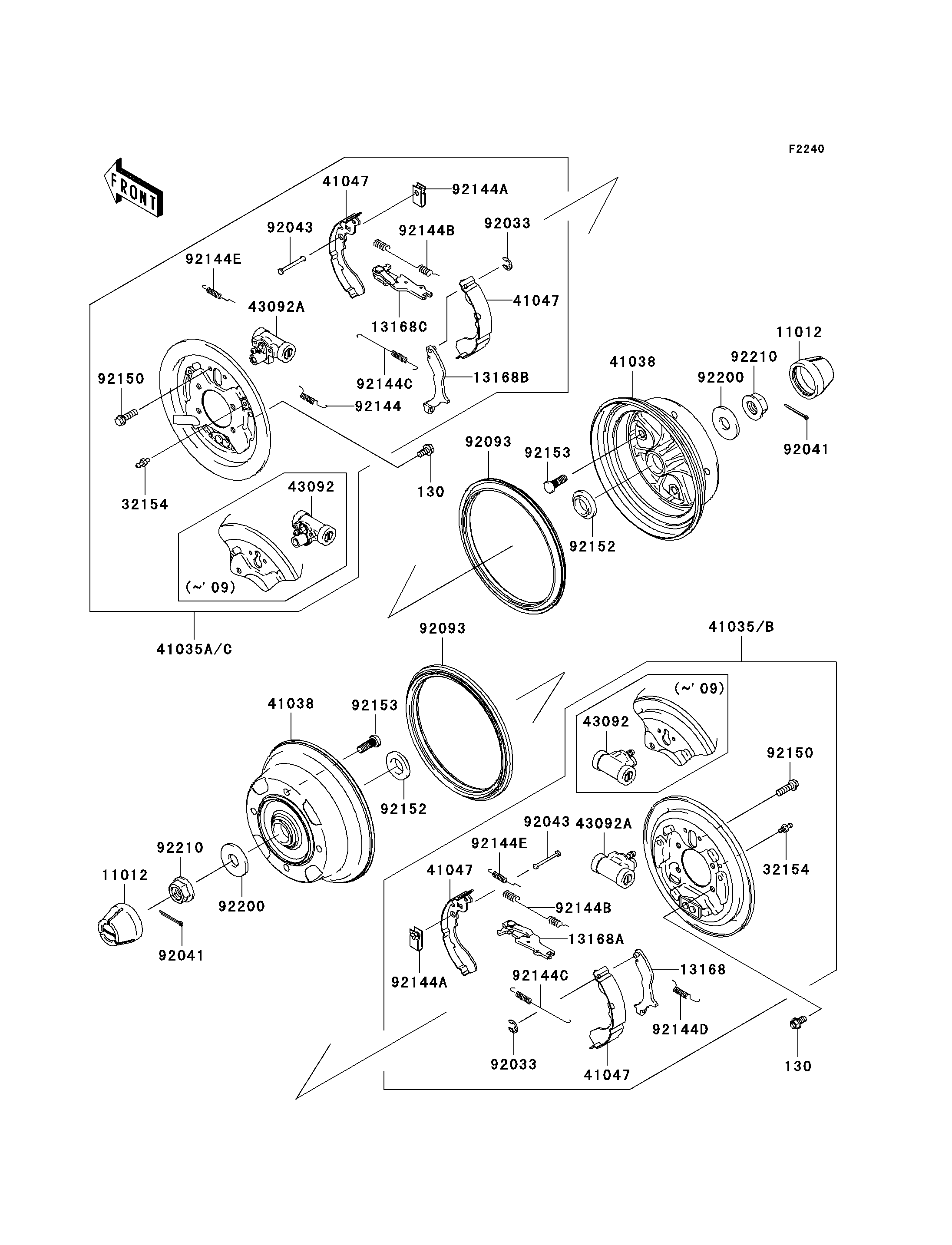

2008 Mule 610 4x4 Hardwoods Green HD - Rear Hubs/Brakes

DOWNLOAD PDF
SELECT A NEW PART
130
130
11012
11012
13168
13168A
13168B
13168C
32154
32154
41035
41035A
41038
41038
41047
41047
41047
41047
43092
43092
92033
92033
92041
92041
92043
92043
92093
92093
92144
92144A
92144A
92144B
92144B
92144C
92144C
92144D
92144E
92144E
92150
92150
92152
92152
92153
92153
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130CA0816 8
CAP,WHEEL 11012 11012-1969 2
LEVER,BRAKE,LH 13168 13168-0065 1
LEVER,BRAKE,LH 13168A 13168-0066 1
LEVER,BRAKE,RH 13168B 13168-0067 1
LEVER,BRAKE,RH 13168C 13168-0068 1
PIPE 32154 32154-0335 2
PANEL-ASSY-BRAKE,RR,LH 41035 41035-0013 1
PANEL-ASSY-BRAKE,RR,RH 41035A 41035-0015 1
DRUM,REAR BRAKE 41038 41038-0018 2
SHOE-ASSY-BRAKE,RR 41047 41047-1052 4
CYLINDER 43092 43092-0001 2
RING-SNAP 92033 92033-1279 2
COTTER,4.0X35 92041 92041-1053 2
PIN,SHOE HOLD 92043 92043-1460 4
SEAL,BS184.8X13.5-1 92093 92093-0031 2
SPRING,RH 92144 92144-1608 1
SPRING,SHOE HOLD 92144A 92144-1609 4
SPRING,RETURN,UPP 92144B 92144-1612 2
SPRING,RETURN,LWR 92144C 92144-1613 2
SPRING 92144D 92144-1614 1
SPRING 92144E 92144-1615 2
BOLT,FLANGED,6X10 92150 92150-1664 4
COLLAR 92152 92152-0284 2
BOLT,10X30 92153 92153-0920 8
WASHER,20.3X52X4.5 92200 92200-0130 2
NUT,FLANGED,20MM 92210 92210-2093 2
