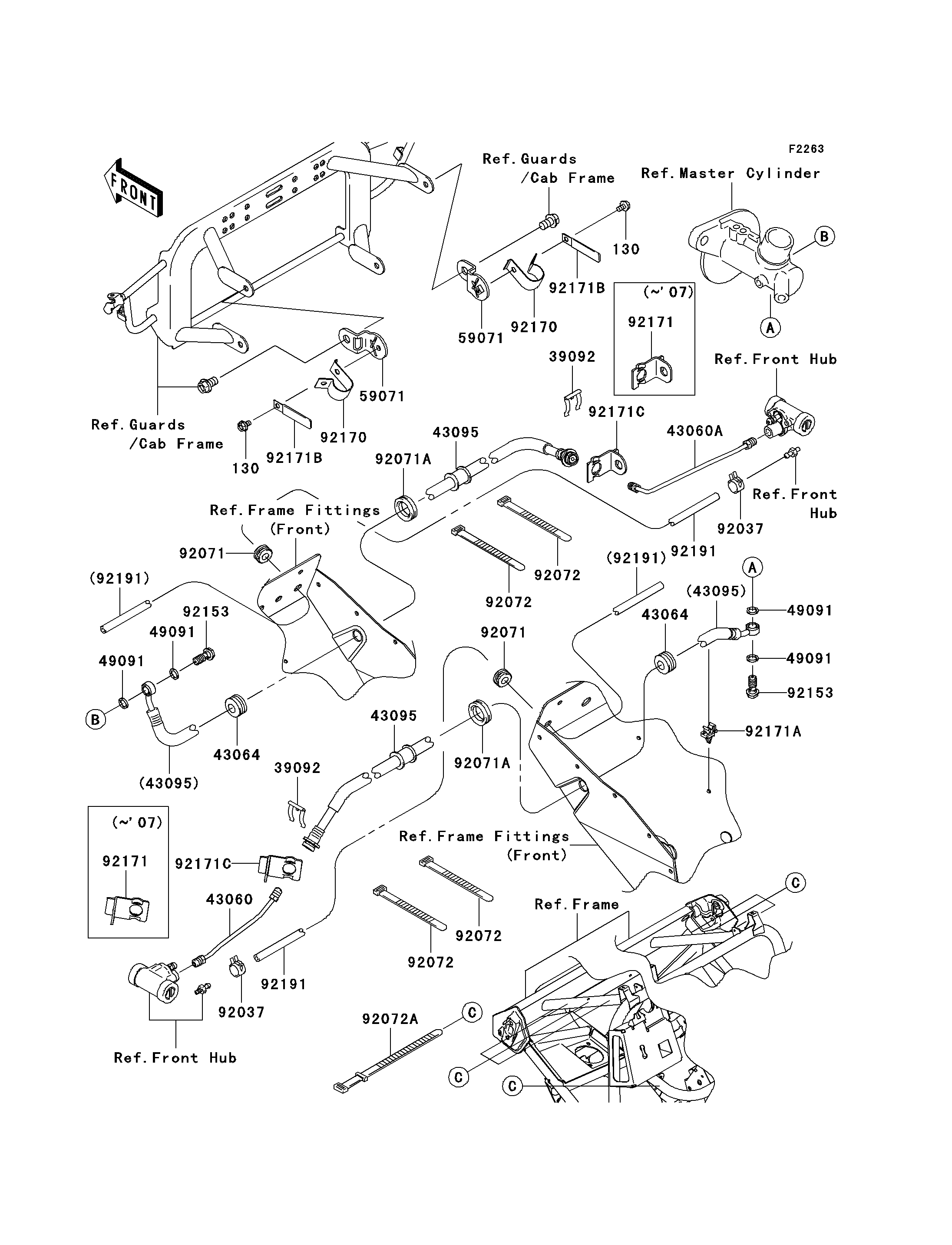

2008 Mule 610 4x4 Hardwoods Green HD - Front Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
130
130
39092
39092
43060
43060A
43064
43064
43095
43095
49091
49091
49091
49091
59071
59071
92037
92037
92071
92071
92071A
92071A
92072
92072
92072
92072
92072A
92153
92153
92170
92170
92171A
92171B
92171B
92171C
92171C
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130AA0610 2
PIN-HAIR 39092 39092-1052 2
PIPE-BRAKE,FR,LH 43060 43060-0001 1
PIPE-BRAKE,FR,RH 43060A 43060-0002 1
GROMMET,HOSE CLAMP 43064 43064-007 2
HOSE-BRAKE,FR 43095 43095-0055 2
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
JOINT 59071 59071-0024 2
CLAMP 92037 92037-1601 2
GROMMET 92071 92071-1010 2
GROMMET 92071A 92071-3704 2
BAND,L=123 92072 92072-030 4
BAND,L=186 92072A 92072-056 7
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP,HOSE 92170 92170-1173 2
CLAMP 92171A 92171-0339 1
CLAMP 92171B 92171-0652 2
CLAMP 92171C 92171-1654 2
TUBE,4.7X9.5X1480 92191 92191-1615 2
