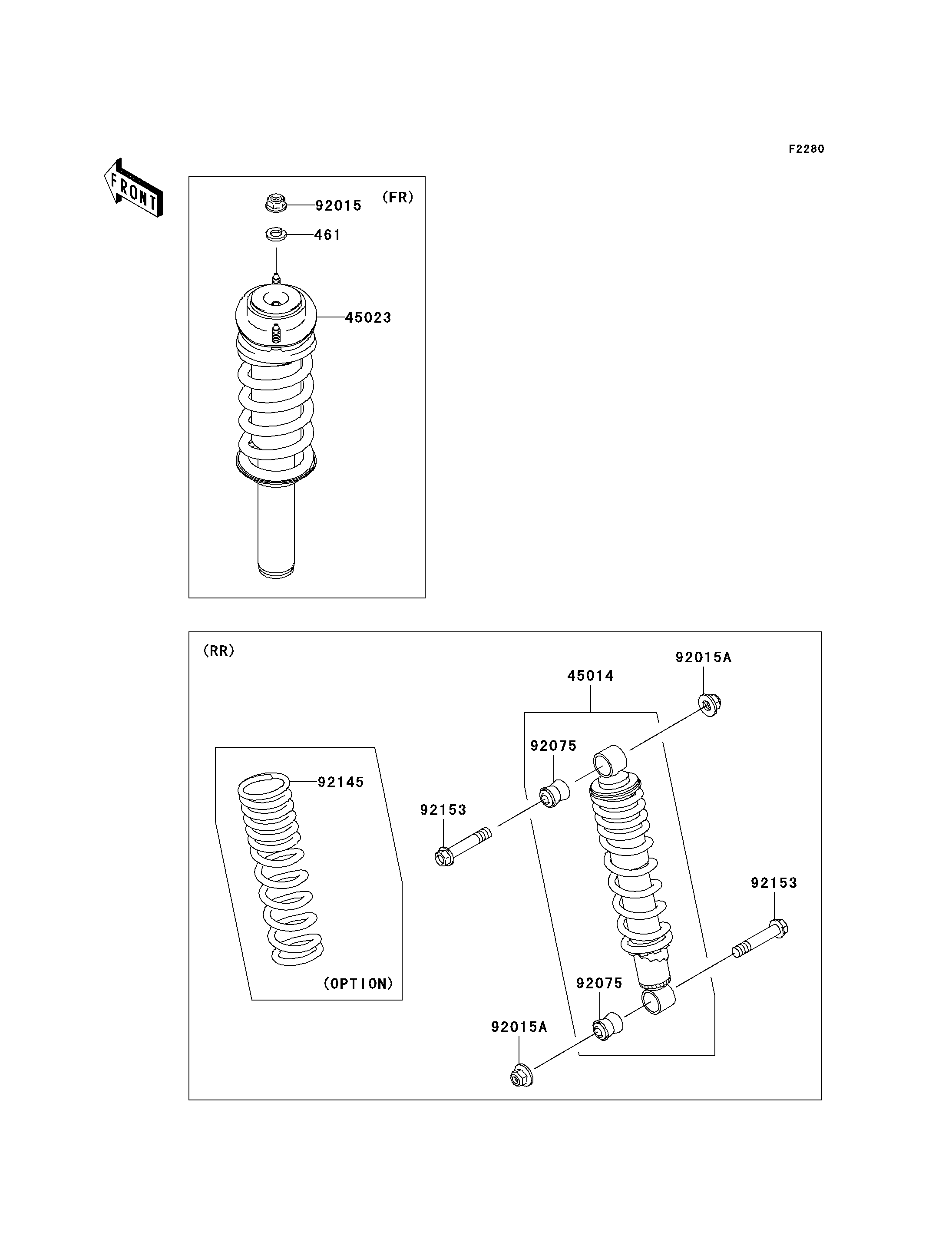

2008 Mule 610 4x4 Hardwoods Green HD - Shock Absorber(s)

461
45014
45023
92015
92015A
92015A
92075
92075
92145
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-SPRING,10MM 461 461DA1000 4
SHOCKABSORBER 45014 45014-0100 2
STRUT 45023 45023-0003 2
NUT,FLANGED,10MM 92015 92015-1428 4
NUT,LOCK,10MM 92015A 92015-1597 4
DAMPER,SHOCKABSORBER 92075 92075-1784 4
SPRING,SHOCK,K=24.5/44.1N/MM 92145 92145-0400 2 (OPTION)
BOLT,FLANGED,10X53.5 92153 92153-1698 4
