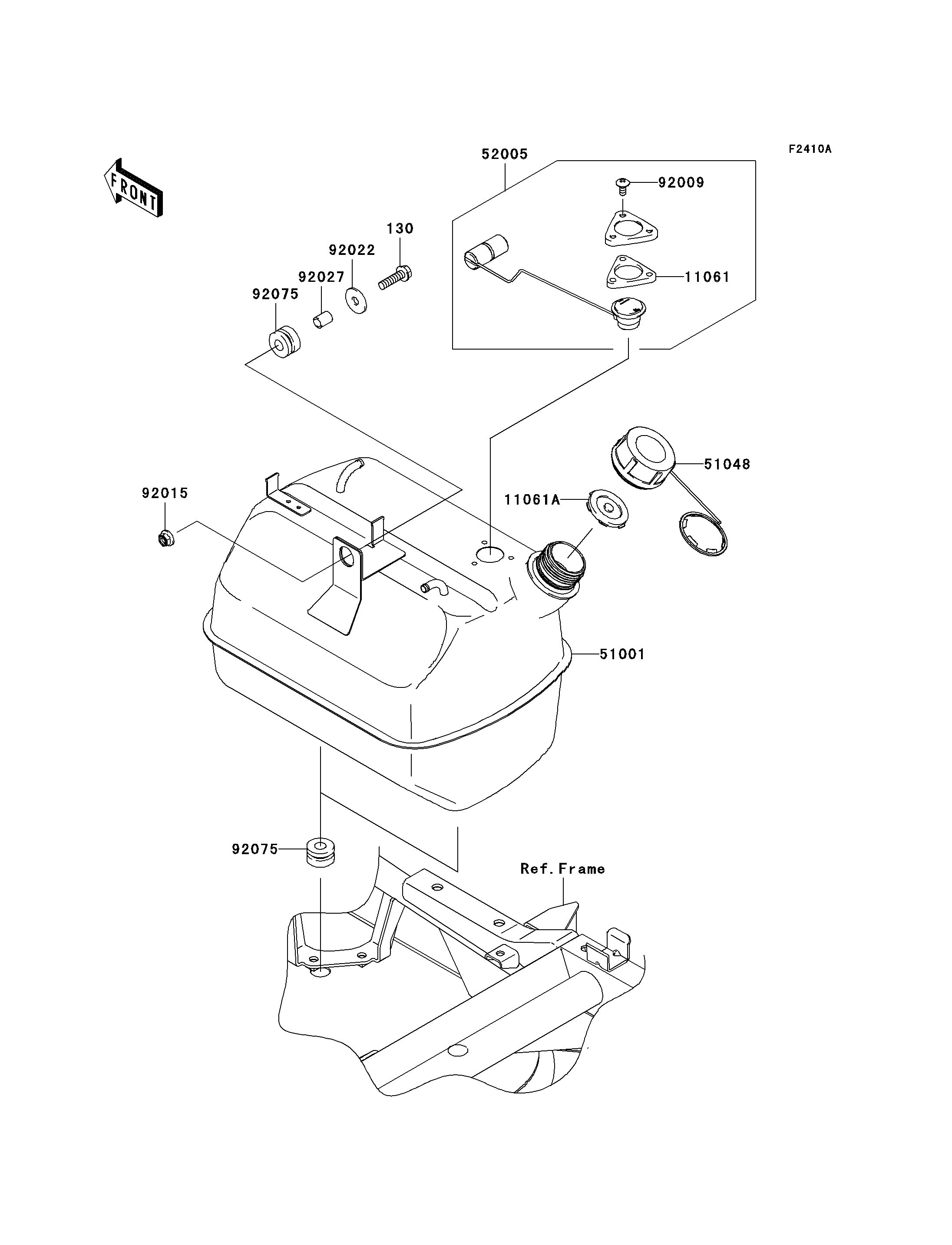

2008 Mule 610 4x4 Hardwoods Green HD - Fuel Tank(C8F-CAF)(CA)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130AA0830 1 CA
GASKET,FUEL GAUGE 11061 11061-0120 1 CA
GASKET,FUEL TANK CAP 11061A 11061-7508 1 CA
TANK-COMP-FUEL 51001 51001-0218 1 CA
CAP-ASSY-TANK,FUEL 51048 51048-0026 1 CA
GAUGE,FUEL 52005 52005-0012 1 CA
SCREW,6X14 92009 92009-1541 3 CA
NUT,LOCK,FLANGED,8MM 92015 92015-1397 1 CA
WASHER,9X28X2.3 92022 92022-1632 1 CA
COLLAR,8.8X12X15.5 92027 92027-1081 1 CA
DAMPER 92075 92075-1736 3 CA
