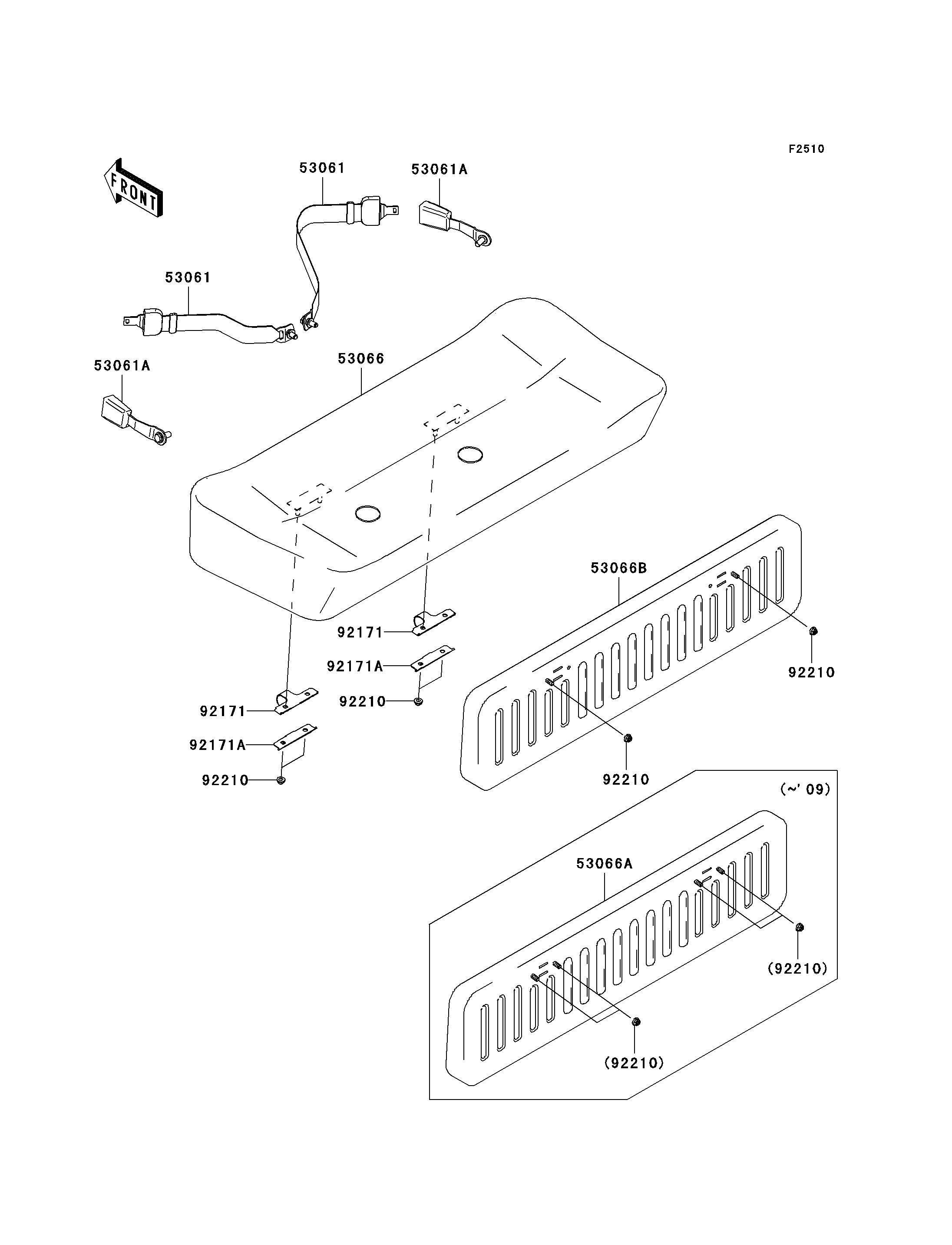

53061
53061
53061A
53061A
53066
53066A
92171
92171
92171A
92171A
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BELT-SEAT,CATCH PLATE 53061 53061-1013 2
BELT-SEAT,BUCKLE 53061A 53061-1014 2
SEAT-ASSY,CUSHION,S.M.BROWN 53066 53066-0115-MB 1
SEAT-ASSY,BACK,S.M.BROWN 53066A 53066-0116-MB 1
CLAMP 92171 92171-0441 2
CLAMP 92171A 92171-0442 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 8
