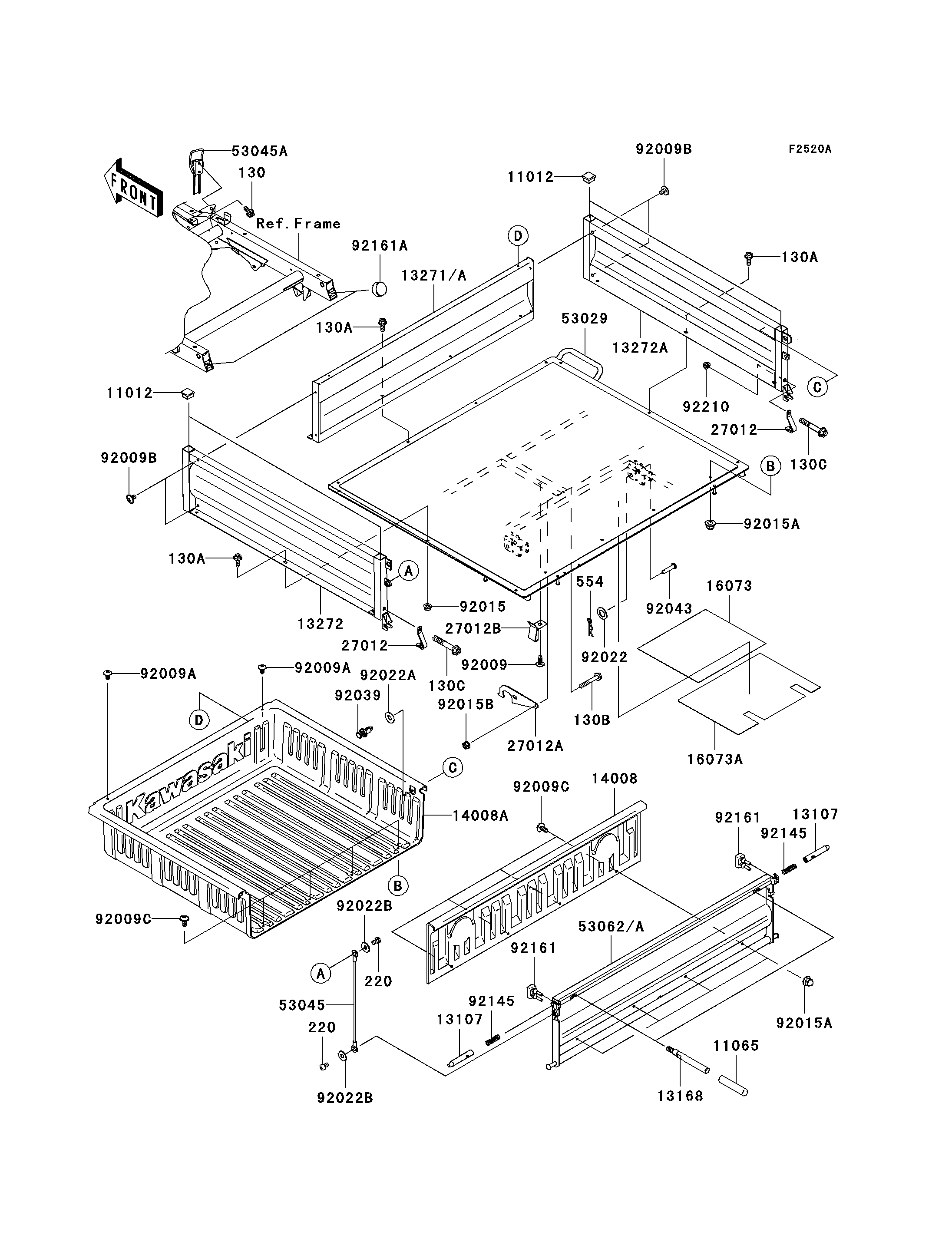

2008 Mule 610 4x4 Hardwoods Green HD - Carrier(s)(C8F/C9F)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11065
11065
13107
13107
13107
13107
13168
13168
13271
13271
13272
13272
13272A
13272A
14008
14008
14008A
14008A
16073
16073
16073A
16073A
27012
27012
27012
27012
27012A
27012A
27012B
27012B
53029
53029
53045
53045
53045A
53045A
53062
53062
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009C
92009C
92009C
92009C
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92039
92039
92043
92043
92145
92145
92145
92145
92161
92161
92161
92161
92161A
92161A
92210
92210
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
220
220
220
220
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1784 4
CAP 11065 11065-0126 2
SHAFT 13107 13107-0082 2
LEVER 13168 13168-0090 2
PLATE,CARRIER,SIDE,FR,BLACK 13271 13271-0385-10 1
PLATE,CARRIER,SIDE,LH,GREEN 13272 13272-0104-826 1
PLATE,CARRIER,SIDE,RH,GREEN 13272A 13272-0105-826 1
LINER,TAIL GATE 14008 14008-0010 1
LINER,CARRIER BED 14008A 14008-0012 1
INSULATOR,CARRIER 16073 16073-0039 1
INSULATOR,CARRIER 16073A 16073-0040 1
HOOK,TAIL GATE 27012 27012-0022 2
HOOK 27012A 27012-0044 1
HOOK,CARRIER 27012B 27012-1445 1
CARRIER,BLACK 53029 53029-0024-10 1
HOOK-ASSY,TAIL GATE 53045 53045-0006 2
HOOK-ASSY 53045A 53045-1063 1
GATE-TAIL,C.H.GREEN 53062 53062-0004-826 1
SCREW,TAPPING,6X16 92009 92009-1166 1
SCREW,6X12 92009A 92009-1480 2
SCREW,6X10 92009B 92009-1661 4
SCREW,6X14 92009C 92009-1662 8
NUT,FLANGED,6MM,BLACK 92015 92015-1233 10
NUT,LOCK 6MM 92015A 92015-1262 8
NUT,LOCK,FLANGED,6MM 92015B 92015-1675 1
WASHER,12.5X22X1.2 92022 92022-072 2
WASHER,8.5X20X1.6,BLACK 92022A 92022-1317 2
WASHER,7X18X1.2 92022B 92022-1545 4
RIVET 92039 92039-1229 2
PIN,12X54 92043 92043-1451 2
SPRING,TENSIONER 92145 92145-1215 2
DAMPER 92161 92161-0258 2
DAMPER,SEAT 92161A 92161-1065 2
NUT,FLANGED,8MM 92210 92210-0555 2
BOLT-FLANGED,6X14 130 130BB0614 2
BOLT-FLANGED,6X16 130A 130BB0616 10
BOLT-FLANGED,6X40 130B 130BB0640 1
BOLT-FLANGED,8X50 130C 130BB0850 2
SCREW-PAN-CROSS,6X10 220 220AB0610 4
PIN-SNAP,12MM 554 554DA1200 2
