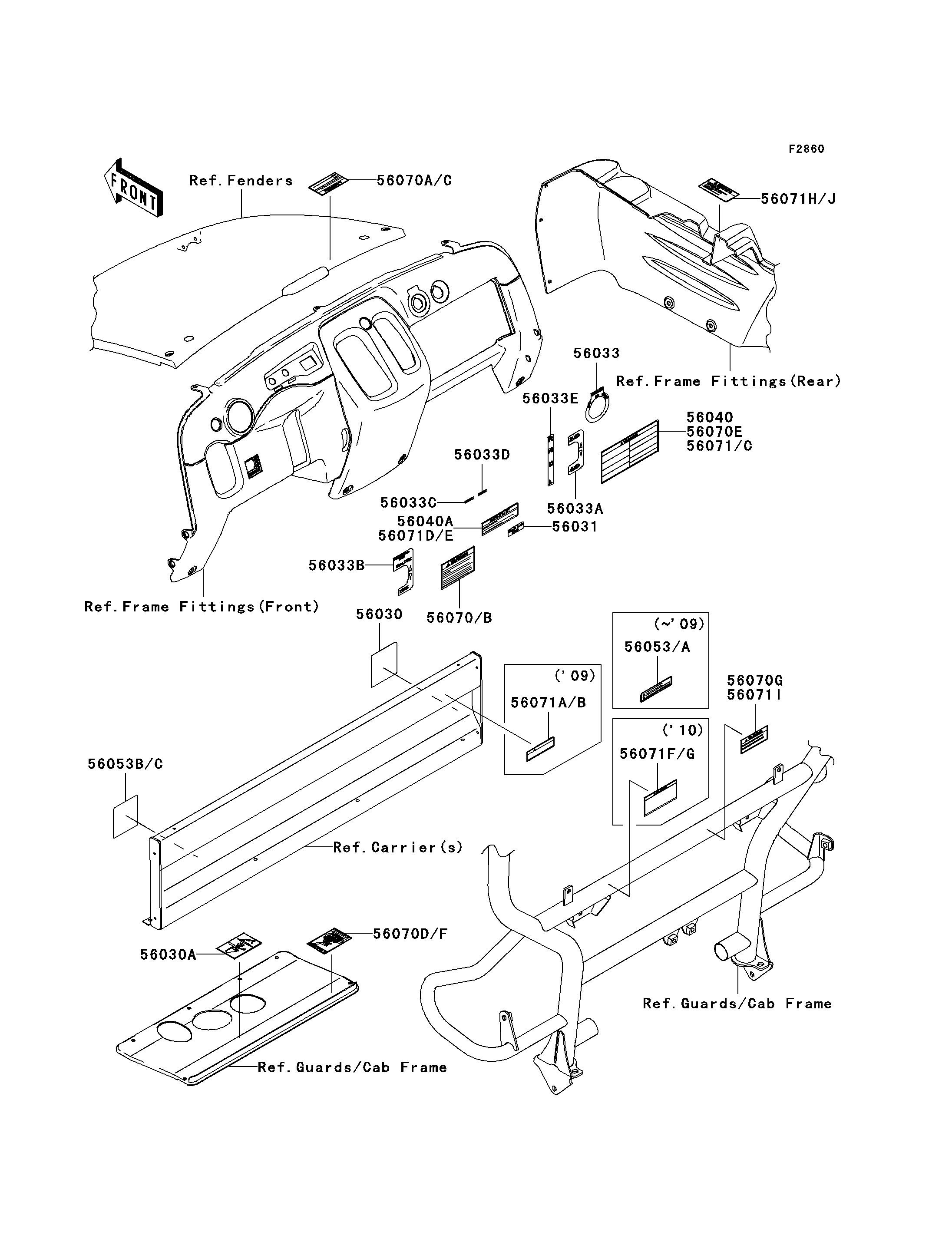

2008 Mule 610 4x4 Hardwoods Green HD - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56030A
56030A
56031
56031
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56033E
56033E
56040
56040
56040A
56040A
56053
56053
56053B
56053B
56070
56070
56070A
56070A
56070D
56070D
56070G
56070G
56071H
56071H
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,CARRIER HOOK OPERATION 56030 56030-0081 1
LABEL,OIL GAUGE 56030A 56030-0096 1
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION 56033 56033-0051 1
LABEL-MANUAL,2/4WD 56033A 56033-0052 1
LABEL-MANUAL,DIFF LOCK 56033B 56033-0053 1
LABEL-MANUAL,OIL TEMP 56033C 56033-0054 1
LABEL-MANUAL,PARKING 56033D 56033-0055 1
LABEL-MANUAL,SHIFT 56033E 56033-0056 1
LABEL-WARNING,GENERAL 56040 56040-1339 1
LABEL-WARNING,SHIFT CAUTION 56040A 56040-1342 1
LABEL-SPECIFICATION,CARGO BED 56053 56053-0060 1
LABEL-SPECIFICATION,TIRE ROAD 56053B 56053-0121 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,BONNET OPERATION 56070A 56070-0053 1
LABEL-WARNING,HOT SURFACES 56070D 56070-1125 1
LABEL-WARNING,BED RAISED 56070G 56070-7515 1
LABEL-WARNING,GASOLINE 56071H 56071-7501 1
LABEL-SPECIFICATION,CARGO BED 56053A 56053-0066 1 CN
LABEL-SPECIFICATION,TIRE ROAD 56053C 56053-0122 1 CN
LABEL,OFF-HIGHWAY(FRENCH) 56070B 56070-0055 1 CN
LABEL,GENERAL(FRENCH) 56070E 56070-1206 1 CN
LABEL,HOT SURFACES(FRENCH) 56070F 56070-1234 1 CN
LABEL,BED RAISED(FRENCH) 56071I 56071-7504 1 CN
LABEL,GASOLINE(FRENCH) 56071J 56071-7505 1 CN
