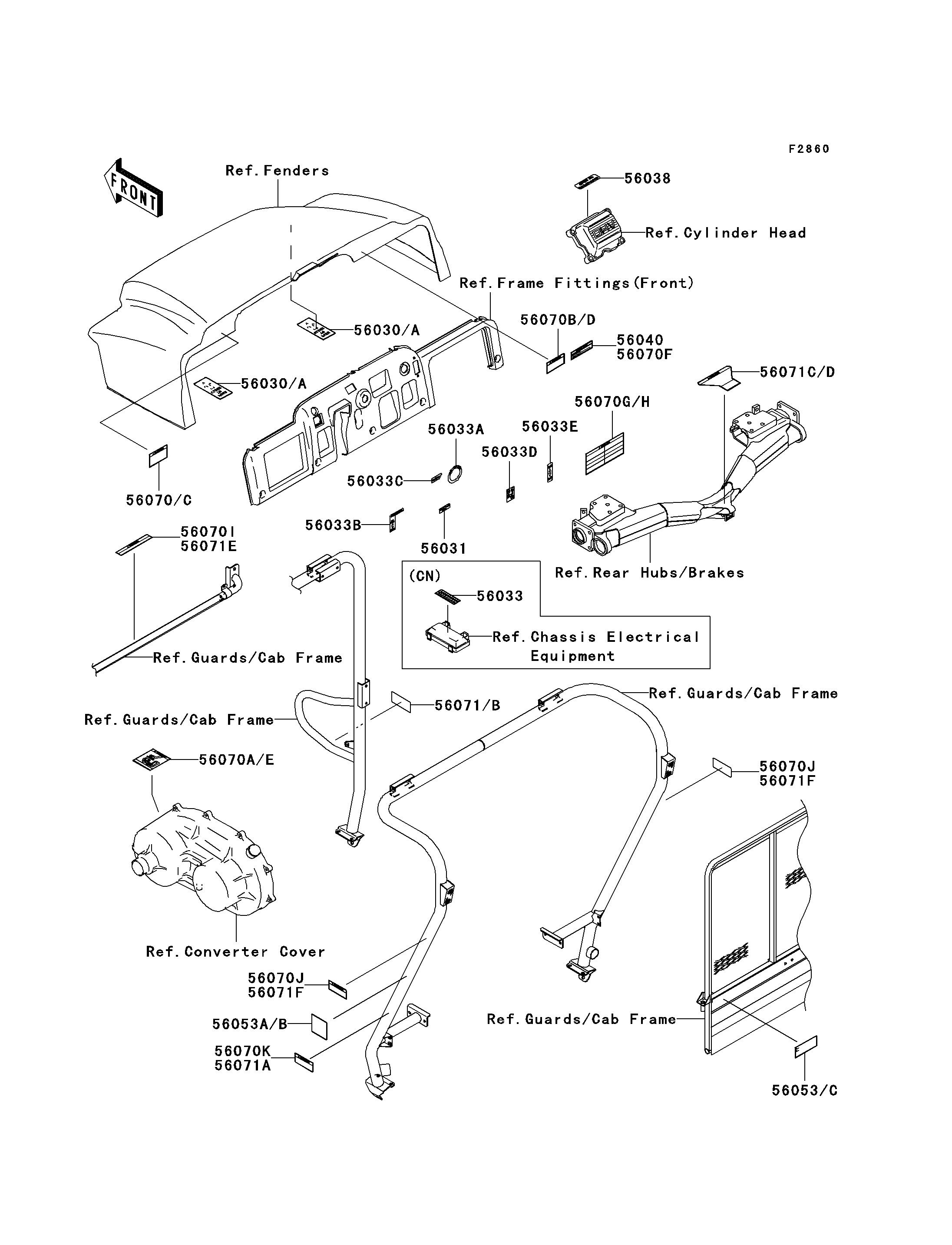

2008 Mule™ 3010 Trans4X4® - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56030
56030
56031
56031
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56033E
56033E
56038
56038
56040
56040
56053B
56053B
56053C
56053C
56070
56070
56070A
56070A
56070B
56070B
56070G
56070G
56070K
56070K
56071
56071
56071C
56071C
56071E
56071E
56071F
56071F
56071F
56071F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,BONNET OPERATION 56030 56030-1240 2
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION,ON/OFF 56033A 56033-0162 1
LABEL-MANUAL,DIFF MODE 56033B 56033-1183 1
LABEL-MANUAL,IGNITION 56033C 56033-1184 1
LABEL-MANUAL,SHIFT 56033D 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033E 56033-1187 1
LABEL-BRAND 56038 56038-2782 1
LABEL-WARNING,SHIFT CAUTION 56040 56040-1342 1
LABEL-SPECIFICATION,TIRE 56053B 56053-7506 1
LABEL-SPECIFICATION,CARGO BED 56053C 56053-7528 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL-WARNING,GENERAL 56070G 56070-7507 1
LABEL-WARNING,BED RAISED 56070K 56070-7515 1
LABEL-WARNING,GASOLINE 56071 56071-7501 1
LABEL-WARNING,TRAILER HITCH 56071C 56071-7511 1
LABEL-WARNING,REAR SEAT 56071E 56071-7513 1
LABEL-WARNING,CAB FRAME 56071F 56071-7514 2
LABEL,BONNET OPERATION 56030A 56030-1246 2 CN
LABEL-MANUAL,FUSE 56033 56033-0020 1 CN
LABEL-SPECIFICATION,CARGO BED 56053 56053-7504 1 CN
LABEL-SPECIFICATION,TIRE 56053A 56053-7505 1 CN
LABEL,OFF-HIGHWAY(FRENCH) 56070C 56070-0055 1 CN
LABEL-WARNING,BONNET OPERATION 56070D 56070-0058 1 CN
LABEL-WARNING,HOT SURFACES 56070E 56070-1207 1 CN
LABEL-WARNING,SHIFT CAUTION 56070F 56070-1219 1 CN
LABEL-WARNING,GENERAL 56070H 56070-7508 1 CN
LABEL-WARNING,2 FOR REAR SEAT 56070I 56070-7511 1 CN
LABEL-WARNING,FINGERS PINCH 56070J 56070-7512 2 CN
LABEL,BED RAISED(FRENCH) 56071A 56071-7504 1 CN
LABEL,GASOLINE(FRENCH) 56071B 56071-7505 1 CN
LABEL-WARNING,TRAILER HITCH 56071D 56071-7512 1 CN
