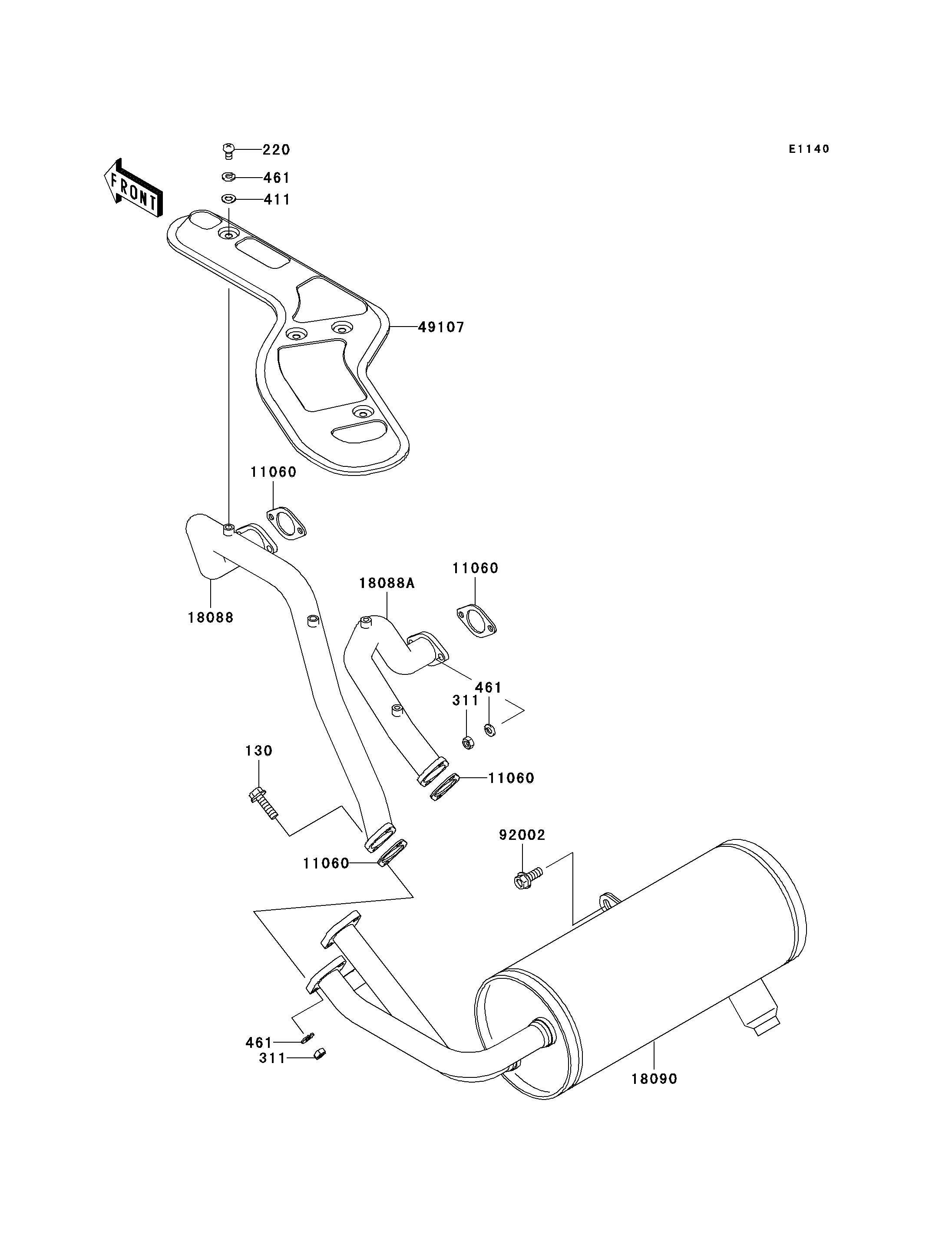

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Muffler(s)

130
220
311
311
411
461
461
461
11060
11060
11060
11060
18088
18088A
18090
49107
92002
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 4
SCREW-PAN-CROSS,6X10 220 220AB0610 4
NUT-HEX,6MM 311 311G0600 8
WASHER-PLAIN,6MM 411 411B0600 4
WASHER-SPRING,6MM 461 461F0600 12
GASKET,EXHAUST PIPE 11060 11060-2079 4
PIPE-EXHAUST,FR 18088 18088-1155 1
PIPE-EXHAUST,RR 18088A 18088-1156 1
BODY-COMP-MUFFLER 18090 18090-1912 1
COVER-EXHAUST PIPE 49107 49107-1211 1
BOLT,8X20 92002 92002-1250 3
