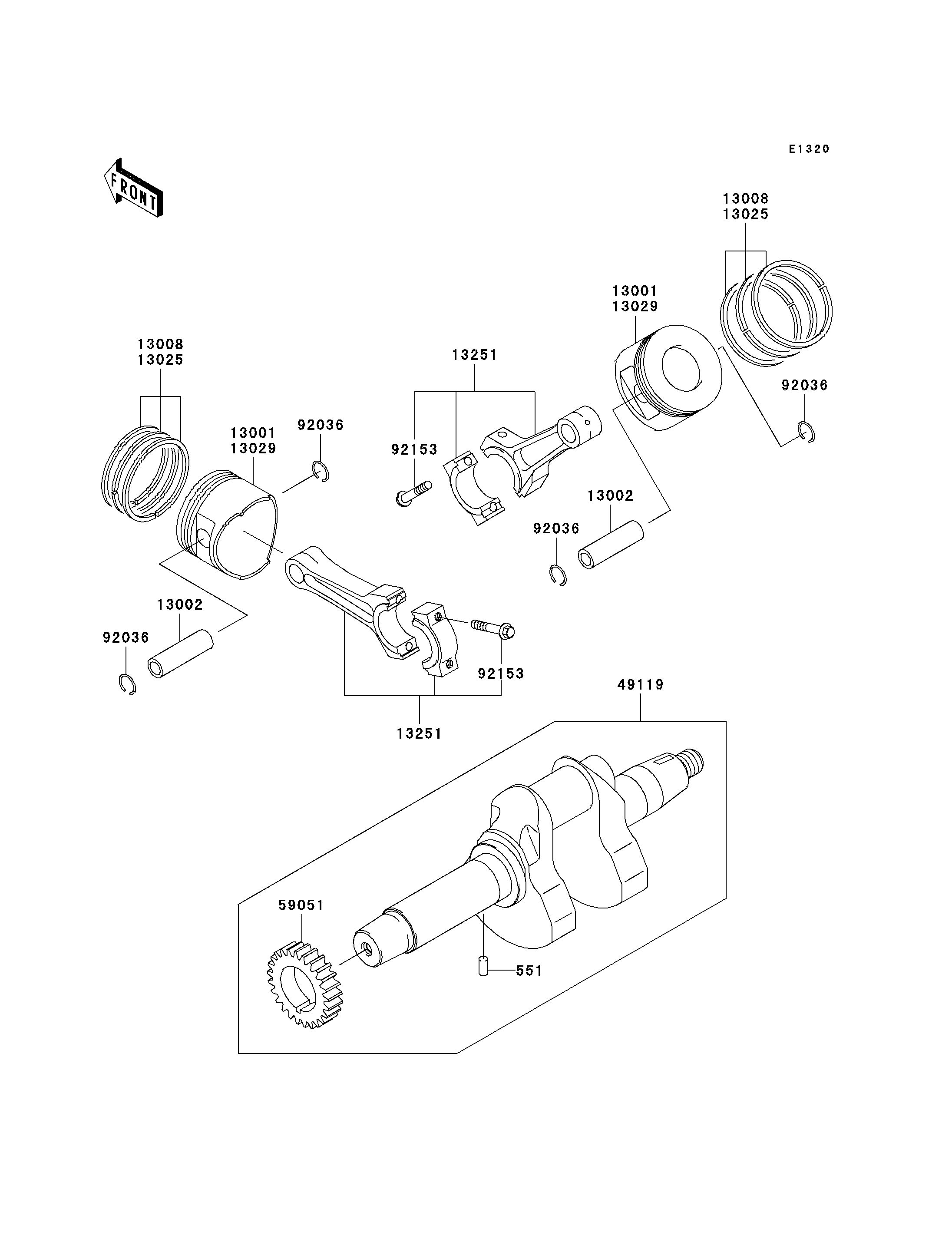

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Crankshaft/Piston(s)
551
13001
13001
13002
13002
13008
13008
13025
13025
13029
13029
13251
13251
49119
59051
92036
92036
92036
92036
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-DOWEL,4X8 | 551 | 551A0408 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-2131 | 2 | ||
| PIN-PISTON | 13002 | 13002-1013 | 2 | ||
| RING-SET-PISTON,STD | 13008 | 13008-6025 | 2 | ||
| RING-SET-PISTON L,0.50 | 13025 | 13025-6008 | AR | ||
| PISTON-ENGINE L,0.50 | 13029 | 13029-2105 | AR | ||
| ROD-ASSY-CONNECTING | 13251 | 13251-6068 | 2 | ||
| CRANKSHAFT-ASSY | 49119 | 49119-2200 | 1 | ||
| GEAR-SPUR | 59051 | 59051-2112 | 1 | ||
| RING-SNAP,PISTON PIN | 92036 | 92036-021 | 4 | ||
| BOLT,7X35.2 | 92153 | 92153-2054 | 4 |
| PIN-DOWEL,4X8 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE,STD | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON,STD | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON L,0.50 | |
| REF # | 13025 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE L,0.50 | |
| REF # | 13029 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-ASSY | |
| REF # | 49119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,PISTON PIN | |
| REF # | 92036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,7X35.2 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
