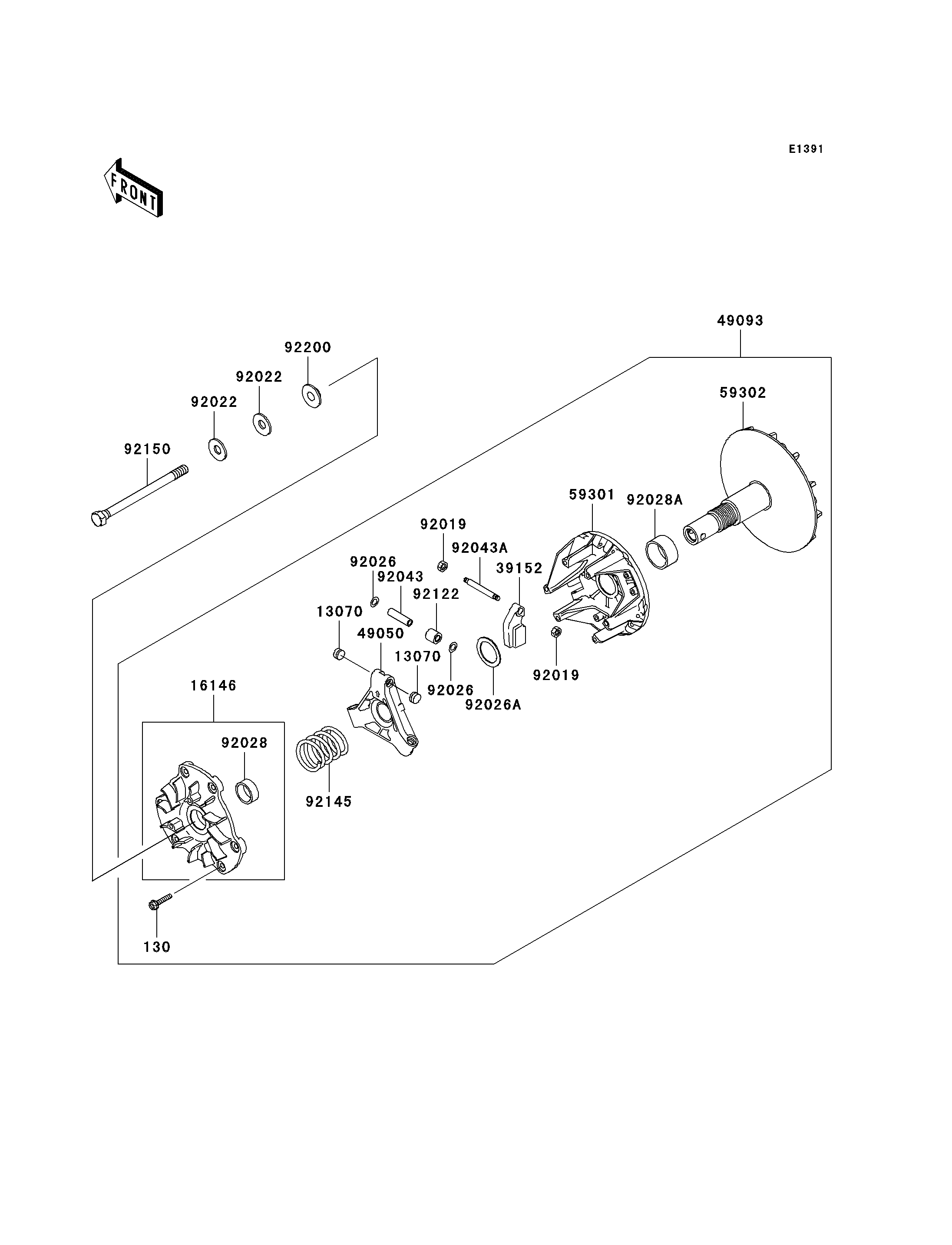

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Drive Converter
130
13070
13070
16146
39152
49050
49093
59301
59302
92019
92019
92022
92022
92026
92026
92026A
92028
92028A
92043
92043A
92122
92145
92150
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X30 | 130 | 130CA0630 | 6 | ||
| GUIDE | 13070 | 13070-1330 | 6 | ||
| COVER-ASSY | 16146 | 16146-1219 | 1 | ||
| WEIGHT-RAMP | 39152 | 39152-0010 | 3 | ||
| SPIDER | 49050 | 49050-1076 | 1 | ||
| CONVERTER-ASSY-DRIVE | 49093 | 49093-0015 | 1 | ||
| SHEAVE-MOVABLE | 59301 | 59301-1060 | 1 | ||
| SHEAVE-COMP | 59302 | 59302-1085 | 1 | ||
| NUT,LOCK,6MM | 92019 | 92019-008 | 6 | ||
| WASHER,SPECIAL CONICAL | 92022 | 92022-1901 | 2 | ||
| SPACER | 92026 | 92026-1512 | 6 | ||
| SPACER,32.3X44.3X3.6 | 92026A | 92026-1591 | 1 | ||
| BUSHING | 92028 | 92028-1861 | 1 | ||
| BUSHING | 92028A | 92028-1864 | 1 | ||
| PIN | 92043 | 92043-1572 | 3 | ||
| PIN | 92043A | 92043-1573 | 3 | ||
| ROLLER | 92122 | 92122-1204 | 3 | ||
| SPRING | 92145 | 92145-1388 | 1 | ||
| BOLT,12X163.5 | 92150 | 92150-1008 | 1 | ||
| WASHER | 92200 | 92200-1401 | 1 |
