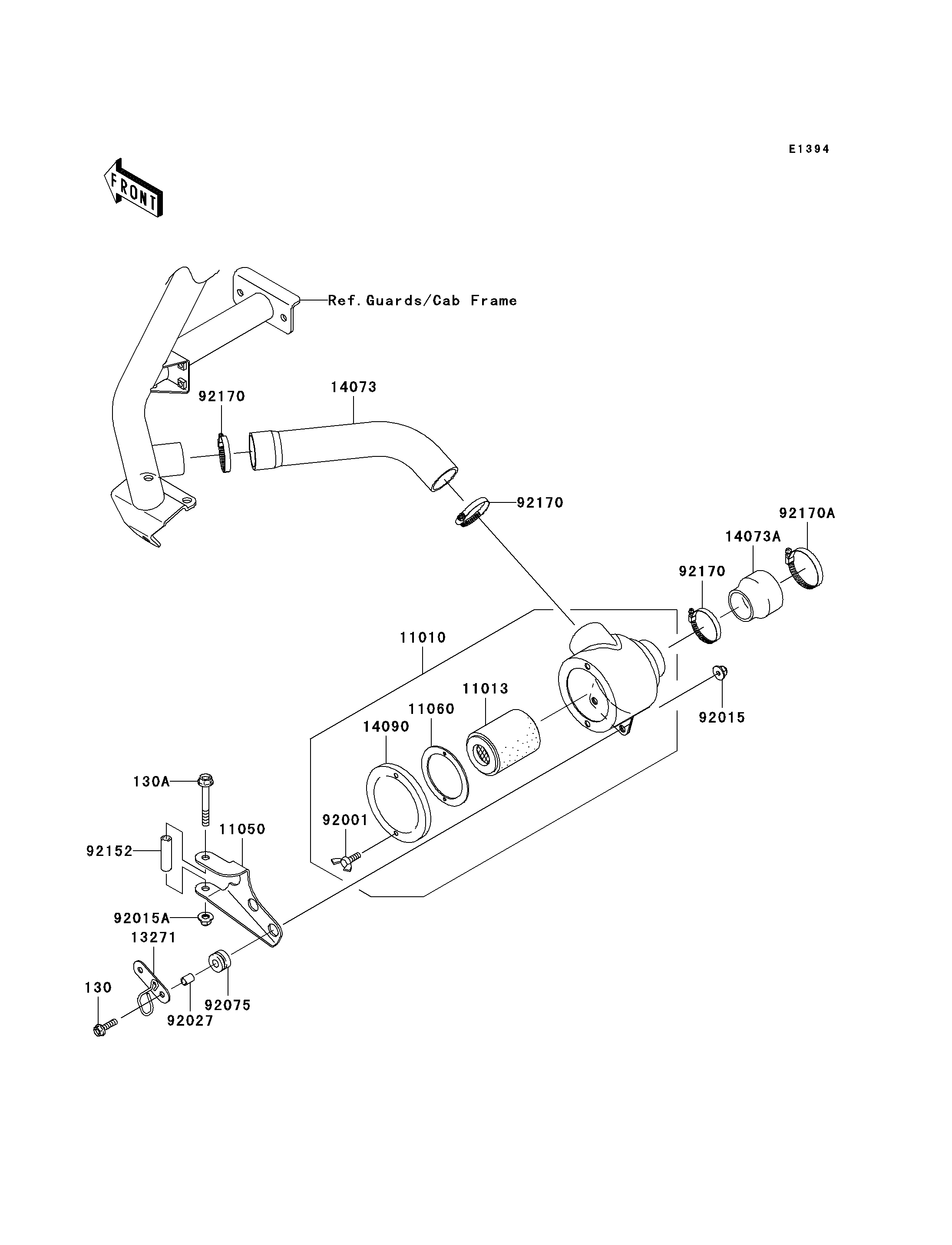

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Air Cleaner-Belt Converter

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11010
11013
11050
11060
13271
14073
14073A
14090
92001
92015
92015A
92027
92075
92152
92170
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130AB0830 2
BOLT-FLANGED,10X75 130A 130BB1075 1
FILTER-ASSY-AIR 11010 11010-0062 1
ELEMENT-AIR FILTER 11013 11013-1263 1
BRACKET 11050 11050-1404 1
GASKET,AIR FILTER CASE 11060 11060-1975 1
PLATE 13271 13271-7587 1
DUCT 14073 14073-1699 1
DUCT 14073A 14073-1700 1
COVER,AIR FILTER 14090 14090-1766 1
BOLT,WING,6X15 92001 92001-1703 2
NUT,8MM 92015 92015-1432 2
NUT,LOCK,10MM 92015A 92015-1597 1
COLLAR,8.8X12X15.5 92027 92027-1081 2
DAMPER 92075 92075-1736 2
COLLAR,10.5X16X50 92152 92152-0083 1
CLAMP 92170 92170-1674 3
CLAMP 92170A 92170-1764 1
