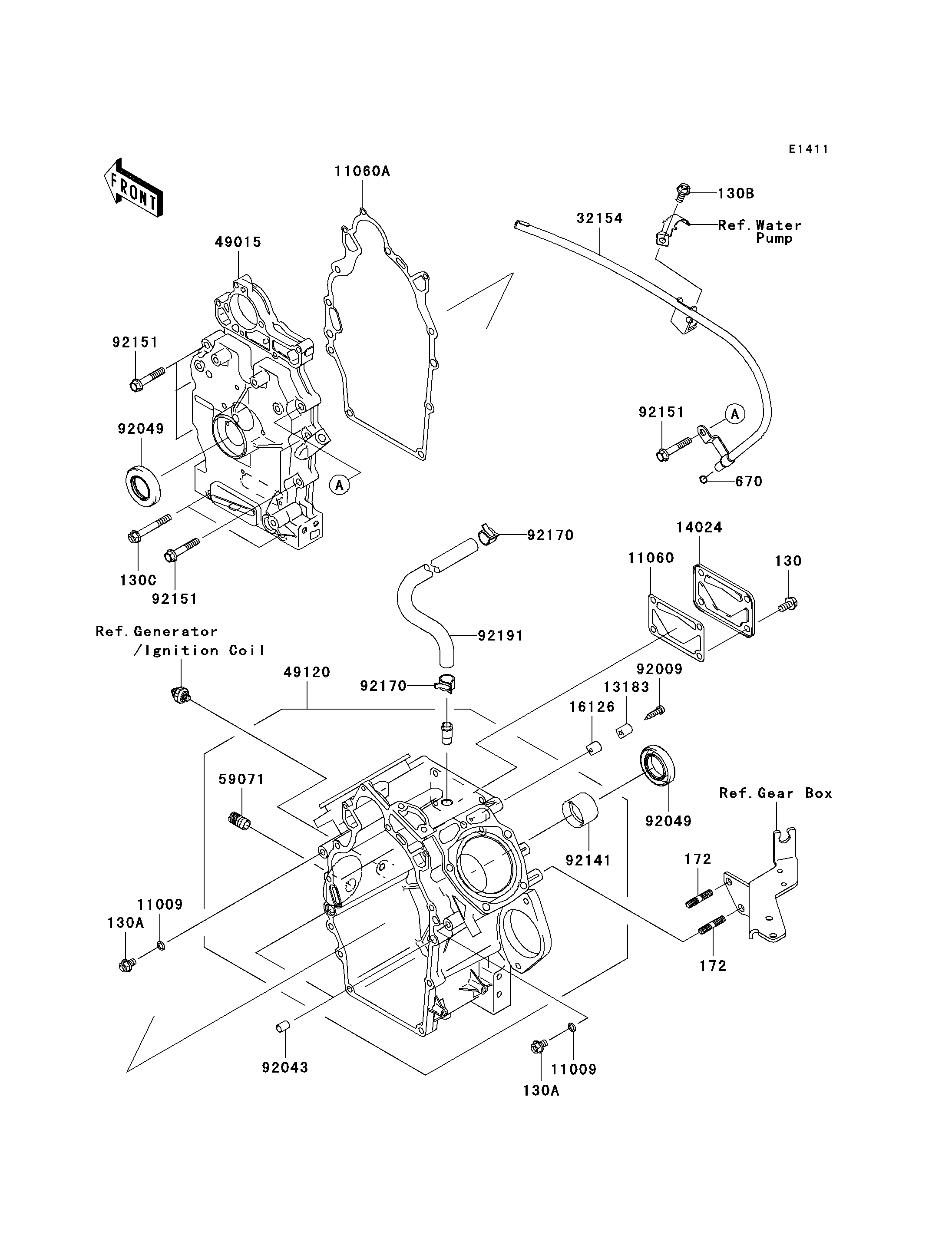

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130B
130C
172
172
670
11009
11009
11060
11060A
13183
14024
16126
32154
49015
49120
59071
92009
92043
92049
92049
92141
92151
92151
92151
92170
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130AA0816 4
BOLT-FLANGED,8X12 130A 130AB0812 2
BOLT-FLANGED,8X16 130B 130BA0816 1
BOLT-FLANGED,8X60 130C 130CA0860 2
BOLT-STUD,8X25 172 172BA0825 2
O RING,10MM 670 670B2010 1
GASKET 11009 11009-3028 2
GASKET 11060 11060-2089 1
GASKET,CRANKCASE COVER 11060A 11060-2449 1
PLATE 13183 13183-2120 1
COVER 14024 14024-2292 1
VALVE 16126 16126-2146 1
PIPE,F.BLACK 32154 32154-2067-9H 1
COVER-CRANKCASE 49015 49015-6282 1
CRANKCASE-COMP 49120 49120-6175 1
JOINT 59071 59071-2079 1
SCREW 92009 92009-2308 1
PIN,DOWEL,10X14 92043 92043-1037 2
SEAL-OIL 92049 92049-2110 2
BEARING-PLANE 92141 92141-2110 1
BOLT 92151 92151-2123 6
CLAMP 92170 92170-3714 2
TUBE 92191 92191-2107 1
