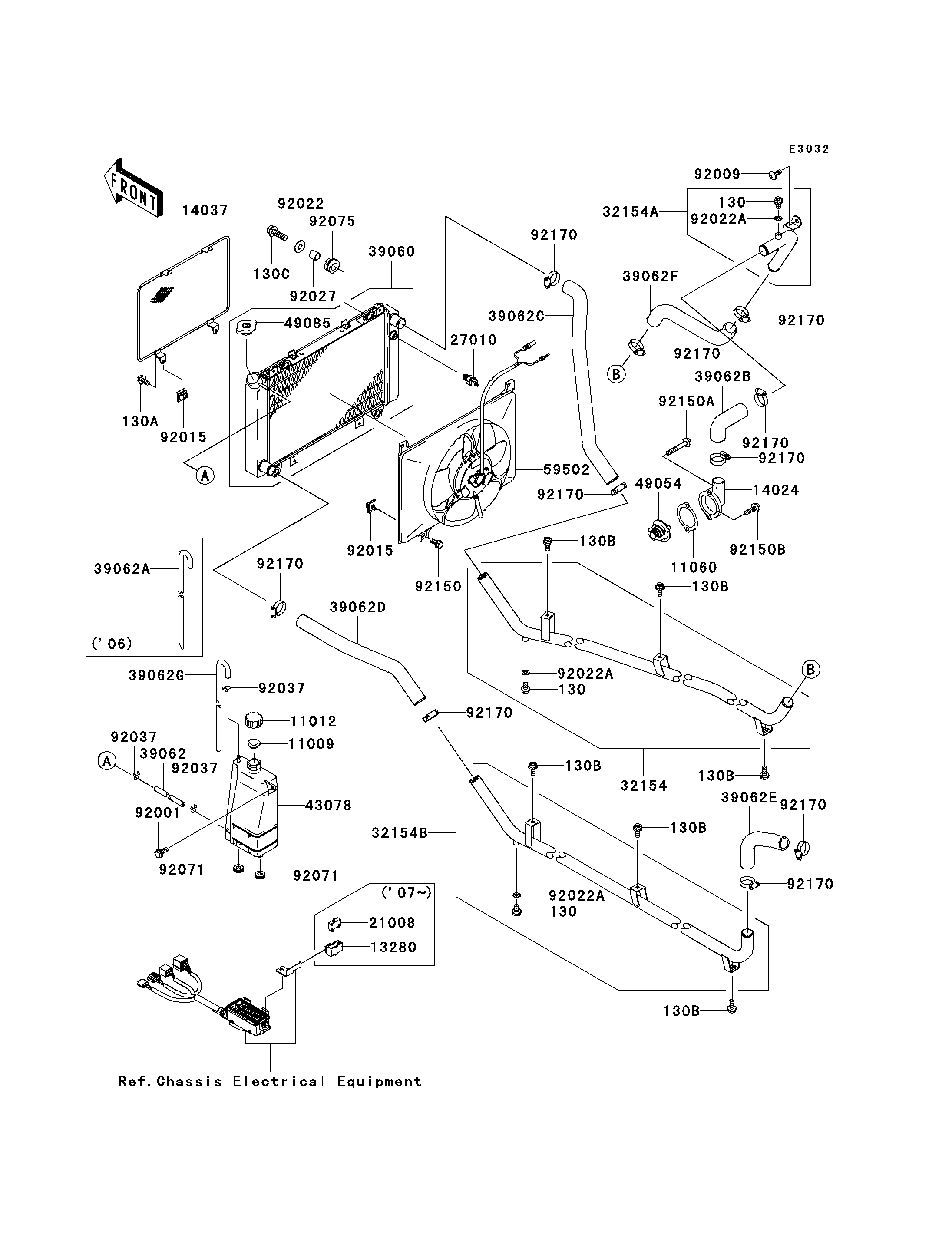

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Radiator
130
130
130
130
130
130
130A
130A
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
11009
11009
11012
11012
11060
11060
13280
13280
14024
14024
14037
14037
21008
21008
27010
27010
32154
32154
32154A
32154A
32154B
32154B
39060
39060
39062
39062
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
43078
43078
49054
49054
49085
49085
59502
59502
92001
92001
92009
92009
92015
92015
92015
92015
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92027
92027
92037
92037
92037
92037
92037
92037
92071
92071
92071
92071
92075
92075
92150
92150
92150A
92150A
92150B
92150B
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
130C
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130BB0610 | 3 | ||
| BOLT-FLANGED,6X12 | 130A | 130BB0612 | 2 | ||
| BOLT-FLANGED,6X14 | 130B | 130BB0614 | 6 | ||
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| GASKET,THERMOSTAT COVER | 11060 | 11060-2084 | 1 | ||
| HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
| COVER,THERMOSTAT | 14024 | 14024-2293 | 1 | ||
| SCREEN | 14037 | 14037-1284 | 1 | ||
| BREAKER,FAN MOTOR | 21008 | 21008-0001 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1317 | 1 | ||
| PIPE,RH FR | 32154 | 32154-7503 | 1 | ||
| PIPE,RH RR | 32154A | 32154-7505 | 1 | ||
| PIPE,LH | 32154B | 32154-7507 | 1 | ||
| RADIATOR | 39060 | 39060-1187 | 1 | ||
| HOSE-COOLING,5.5X10.5X600 | 39062 | 39062-1829 | 1 | ||
| HOSE-COOLING | 39062B | 39062-1832 | 1 | ||
| HOSE-COOLING | 39062C | 39062-1834 | 1 | ||
| HOSE-COOLING | 39062D | 39062-1835 | 1 | ||
| HOSE-COOLING | 39062E | 39062-1836 | 1 | ||
| HOSE-COOLING | 39062F | 39062-7502 | 1 | ||
| HOSE-COOLING,DRAIN | 39062G | 39062-7507 | 1 | ||
| RESERVOIR | 43078 | 43078-1185 | 1 | ||
| THERMOSTAT | 49054 | 49054-2056 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| FAN-ASSY | 59502 | 59502-1137 | 1 | ||
| BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 1 | ||
| NUT | 92015 | 92015-1487 | 6 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 3 | ||
| COLLAR,8.8X12X10.7 | 92027 | 92027-102 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-294 | 4 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
| BOLT,6X40 | 92150A | 92150-2230 | 1 | ||
| BOLT,6X20 | 92150B | 92150-2231 | 1 | ||
| CLAMP,COOLING HOSE | 92170 | 92170-1284 | 10 | ||
| BOLT-FLANGED,8X25 | 130C | 130BB0825 | 4 |
