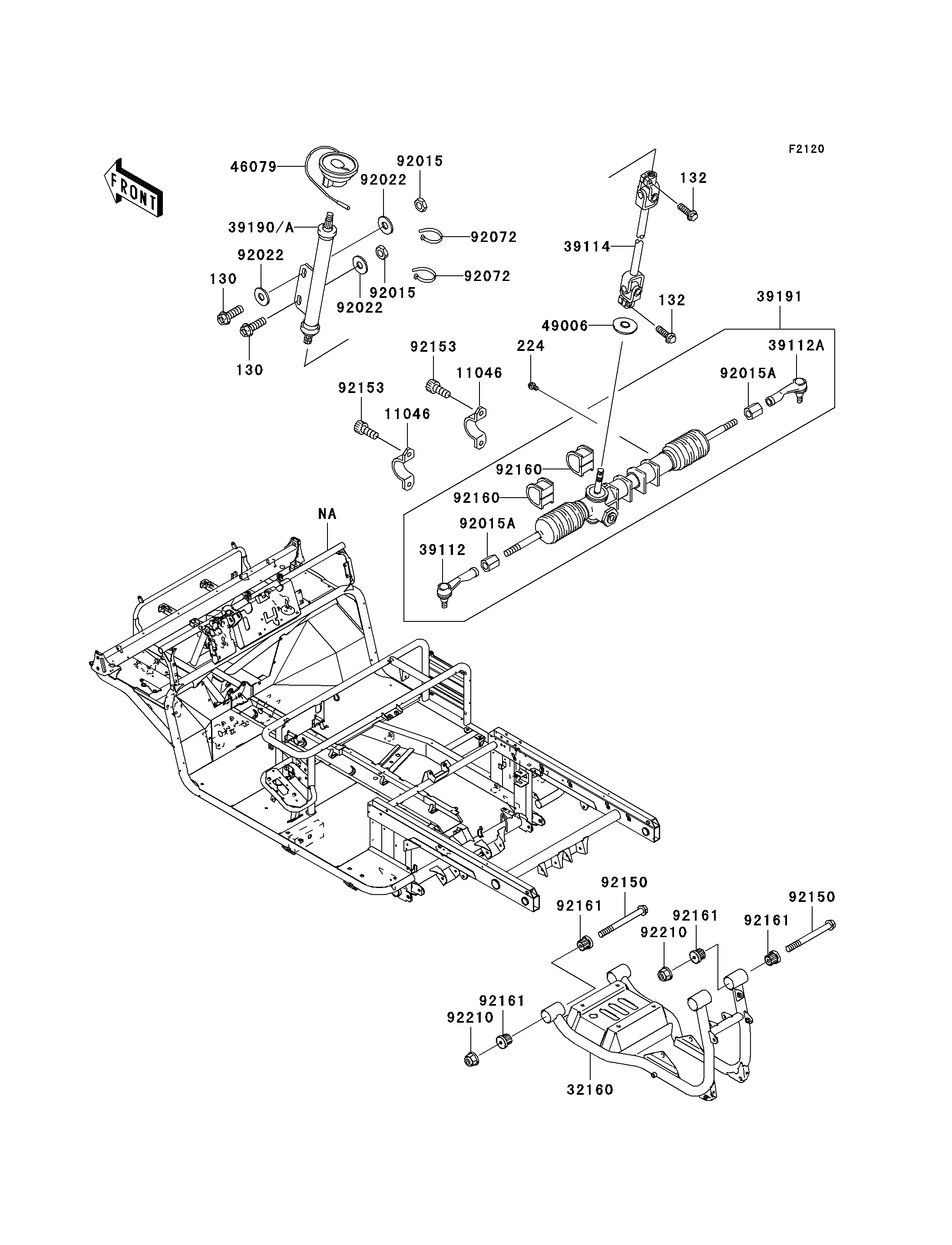

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
224
11046
11046
32160
39112
39112A
39114
39190
39191
46079
49006
92015
92015
92015A
92015A
92022
92022
92022
92072
92072
92150
92150
92153
92153
92160
92160
92161
92161
92161
92161
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X30 130 130BB1030 2
BOLT-FLANGED-SMALL,8X25 132 132BB0825 2
SCREW-PAN-WP-CROS,5X8 224 224AA0508 1
BRACKET,STEERING GEAR 11046 11046-1858 2
FRAME-COMP,RR 32160 32160-0004 1
RODEND-TIE,STEERING GEAR,LH 39112 39112-1068 1
RODEND-TIE,STEERING GEAR,RH 39112A 39112-1069 1
SHAFT-COMP-STRG 39114 39114-0009 1
SHAFT-ASSY-STEERING 39190 39190-0005 1
GEAR-ASSY-STEERING 39191 39191-0008 1
CONTACT,HORN SWITCH 46079 46079-1063 1
BOOT,STEERING SHAFT,LWR 49006 49006-1255 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT 92015A 92015-1864 2
WASHER,10.5X26X2.3,BLACK 92022 92022-1396 3
BAND,L=188 92072 92072-1239 2
BOLT,FLANGED,10X100 92150 92150-1731 4
BOLT,SOCKET,10X23 92153 92153-1269 4
DAMPER,STEERING GEAR 92160 92160-1084 2
DAMPER 92161 92161-1126 8
NUT,LOCK,FLANGED,10MM 92210 92210-1139 4
