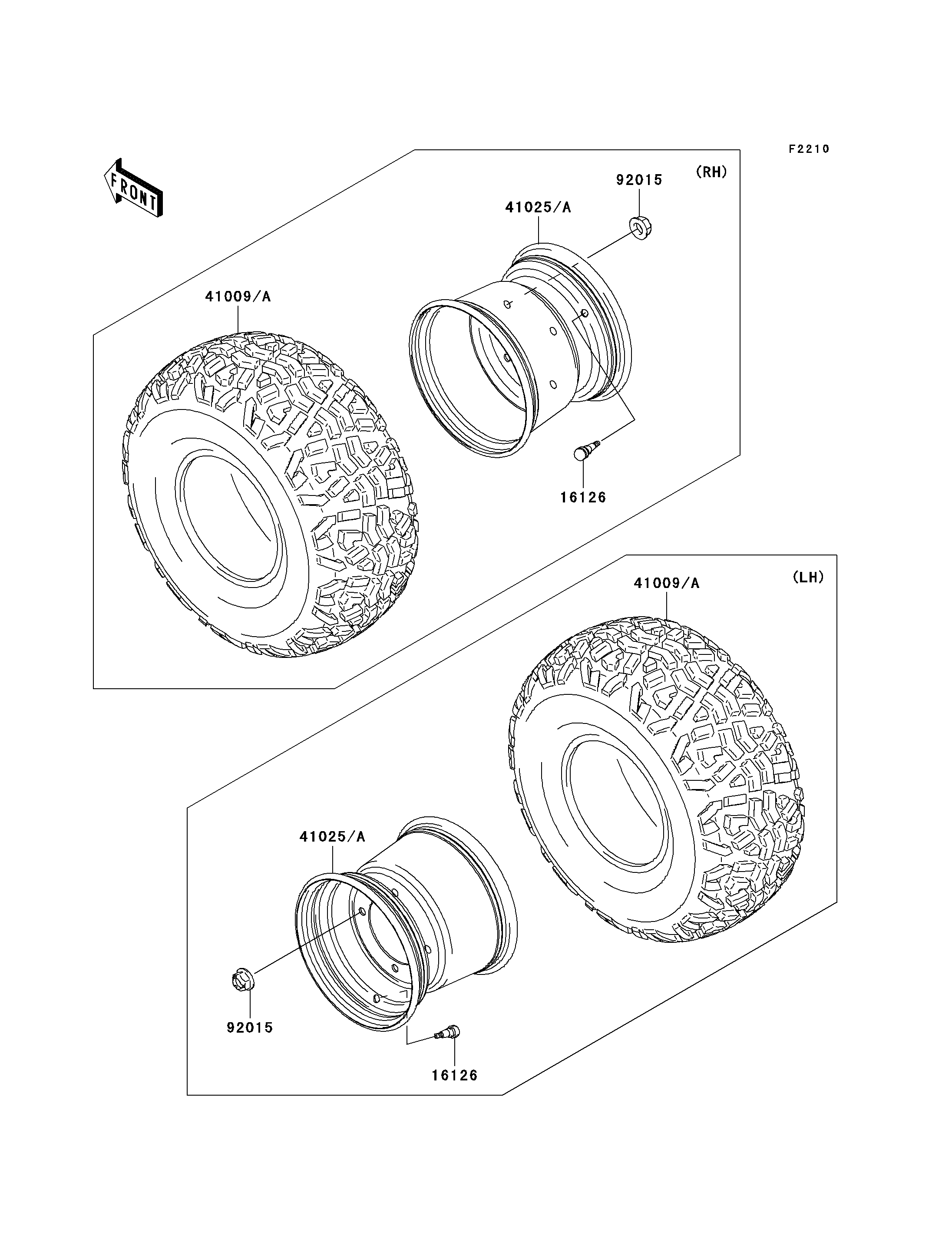

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Wheels/Tires

16126
16126
41009
41009
41025A
41025A
92015
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,23X11.00-10 4PR,KT869(D) 41009 41009-0166 4
RIM,10X8.5AT,M.GRAYSTONE 41025A 41025-7504-379 4
NUT,12MM 92015 92015-1706 16
