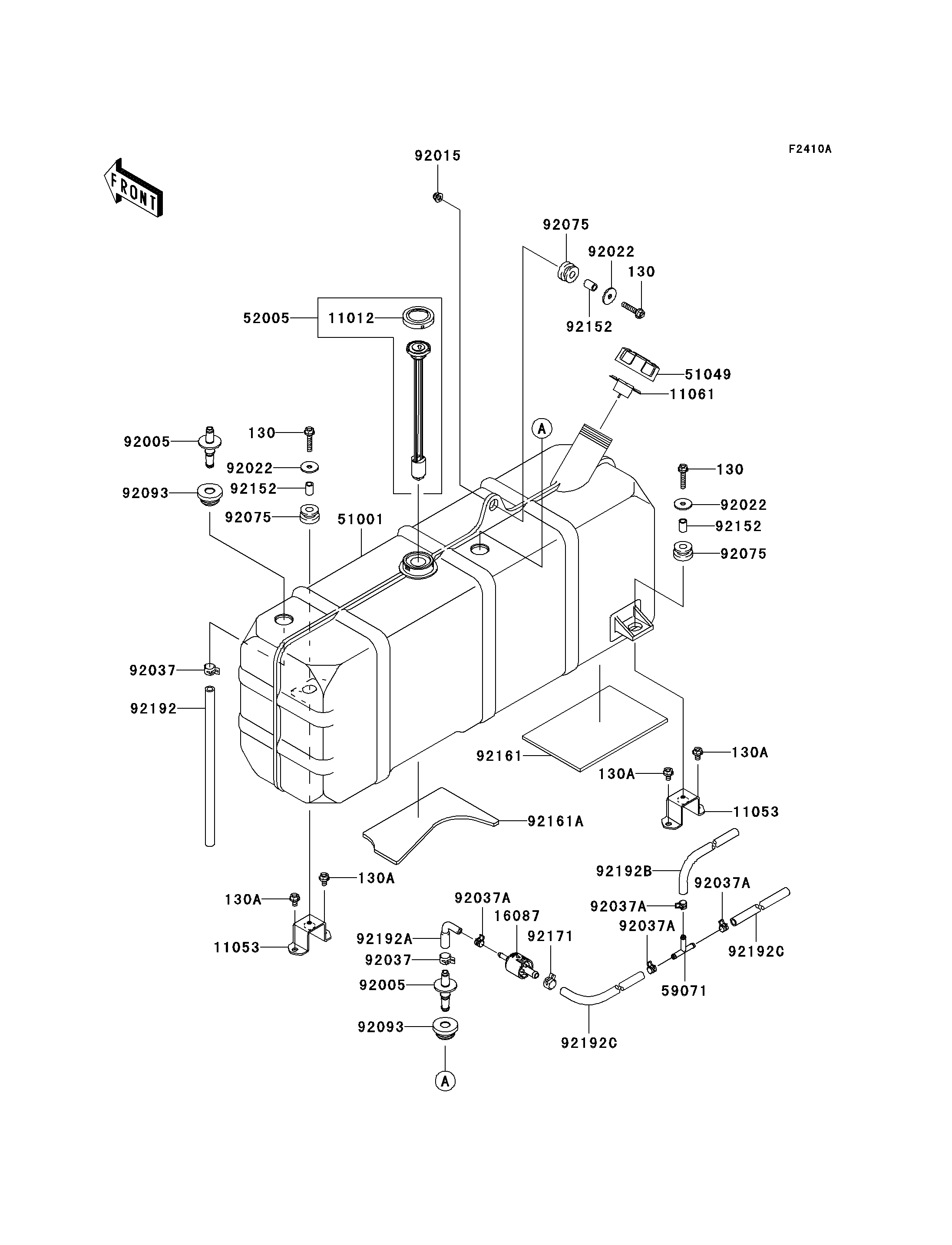

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Fuel Tank(K7F/J8F)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
130A
130A
11012
11053
11053
11061
16087
51001
51049
52005
59071
92005
92005
92015
92022
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92075
92075
92075
92093
92093
92152
92152
92152
92161
92161A
92171
92192
92192A
92192B
92192C
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130BA0630 3
BOLT-FLANGED,6X10 130A 130BB0610 4
CAP,FUEL GAUGE 11012 11012-1627 1
BRACKET 11053 11053-7512 2
GASKET,FUEL TANK CAP 11061 11061-7508 1
VALVE-CHECK 16087 16087-0002 1
TANK-COMP-FUEL 51001 51001-7505 1
CAP-TANK,FUEL 51049 51049-7002 1
GAUGE,FUEL 52005 52005-7501 1
JOINT 59071 59071-3705 1
FITTING 92005 92005-7501 2
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
WASHER,6.5X24X2 92022 92022-1690 3
CLAMP,HOSE CLIP 92037 92037-1181 2
CLAMP,TUBE 92037A 92037-1461 4
DAMPER 92075 92075-1787 3
SEAL 92093 92093-7502 2
COLLAR,7.02X10.32X15.3 92152 92152-7511 3
DAMPER 92161 92161-7508 1
DAMPER 92161A 92161-7513 1
CLAMP 92171 92171-0515 1
TUBE,8X13X260 92192 92192-7503 1
TUBE,TANK-VALVE 92192A 92192-7510 1
TUBE,7X11X370 92192B 92192-7512 1
TUBE,7X11X225 92192C 92192-7513 2
