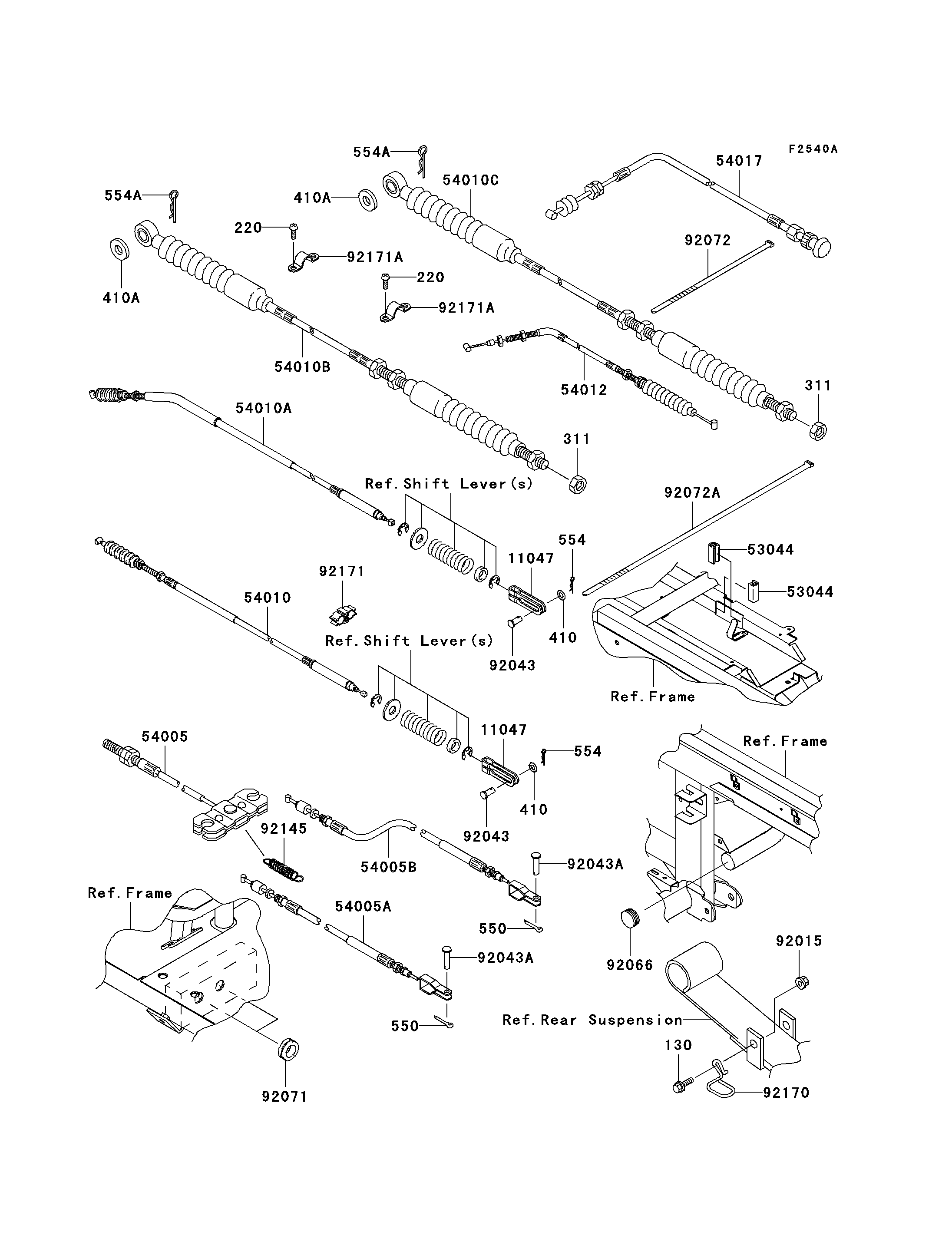

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Cables(K7F/K8F)
130
220
220
311
311
410
410
410A
410A
550
550
554
554
554A
554A
11047
11047
53044
53044
54005
54005A
54005B
54010
54010A
54010B
54010C
54012
54017
92015
92043
92043
92043A
92043A
92066
92071
92072
92072A
92145
92170
92171
92171A
92171A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130AA0620 | 1 | ||
SCREW-PAN-CROS,5X14 | 220 | 220AA0514 | 4 | ||
NUT-HEX,6MM | 311 | 311B0600 | 2 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 2 | ||
W-PLAIN-S,8MM | 410A | 410E0800 | 2 | ||
PIN-COTTER,2.0X22 | 550 | 550D2022 | 2 | ||
PIN-SNAP | 554 | 554A0600 | 2 | ||
PIN-SNAP,8MM | 554A | 554A0800 | 2 | ||
BRACKET,DIFF LOCK | 11047 | 11047-1043 | 2 | ||
TRIM,L=22 | 53044 | 53044-7503 | 2 | ||
CABLE-BRAKE,PARKING,FR | 54005 | 54005-1198 | 1 | ||
CABLE-BRAKE,PARKING,RR,LH | 54005A | 54005-7501 | 1 | ||
CABLE-BRAKE,PARKING,RR,RH | 54005B | 54005-7502 | 1 | ||
CABLE,2-4WD | 54010 | 54010-0045 | 1 | ||
CABLE,DIFF LOCK | 54010A | 54010-7504 | 1 | ||
CABLE,SHIFT CONTROL | 54010B | 54010-7505 | 1 | ||
CABLE,HI-LOW | 54010C | 54010-7506 | 1 | ||
CABLE-THROTTLE | 54012 | 54012-7505 | 1 | ||
CABLE-STARTER | 54017 | 54017-7502 | 1 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 1 | ||
PIN,6X11 | 92043 | 92043-092 | 2 | ||
PIN | 92043A | 92043-1039 | 2 | ||
PLUG | 92066 | 92066-7503 | 1 | ||
GROMMET | 92071 | 92071-1027 | 2 | ||
BAND,L=188 | 92072 | 92072-1239 | 3 | ||
BAND,L=368.3 | 92072A | 92072-3872 | 1 | ||
SPRING | 92145 | 92145-7506 | 1 | ||
CLAMP,CABLE | 92170 | 92170-1372 | 1 | ||
CLAMP | 92171 | 92171-0129 | 1 | ||
CLAMP | 92171A | 92171-1203 | 2 |
