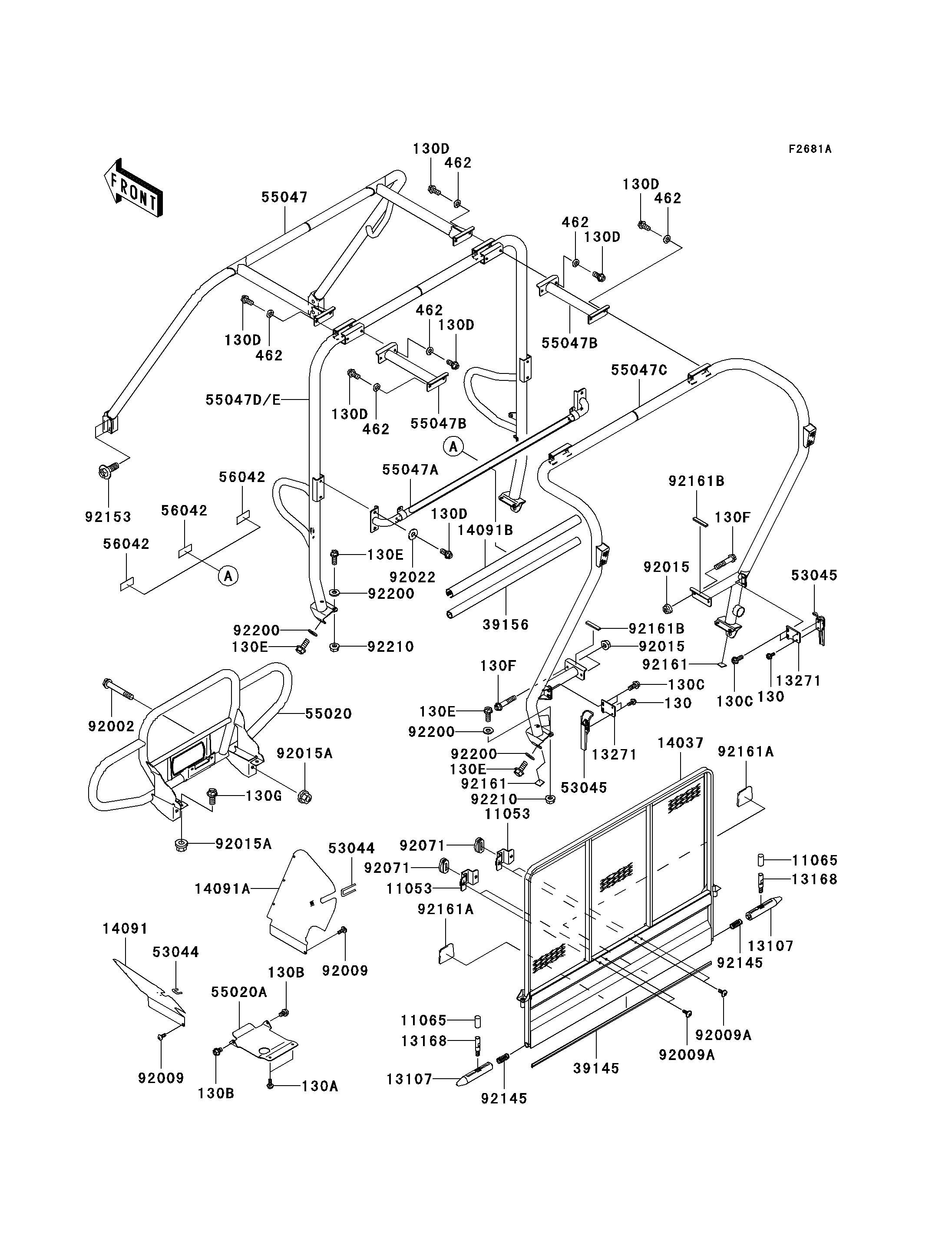

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Guards/Cab Frame(K7F/K8F)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
11053
11053
11053
11053
11065
11065
11065
11065
13107
13107
13107
13107
13168
13168
13168
13168
13271
13271
13271
13271
14037
14037
14091
14091
14091A
14091A
14091B
14091B
39145
39145
39156
39156
53044
53044
53044
53044
53045
53045
53045
53045
55020
55020
55020A
55020A
55047
55047
55047A
55047A
55047B
55047B
55047B
55047B
55047C
55047C
55047E
55047E
56042
56042
56042
56042
56042
56042
92002
92002
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92071
92071
92071
92071
92145
92145
92145
92145
92153
92153
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130E
130E
130E
130E
130E
130E
130E
130E
130F
130F
130F
130F
130G
130G
462
462
462
462
462
462
462
462
462
462
462
462
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 4
BOLT-FLANGED,6X16 130A 130BB0616 2
BOLT-FLANGED,8X12 130B 130BB0812 2
BOLT-FLANGED,8X20 130C 130BB0820 4
BRACKET,SCREEN 11053 11053-7528 2
CAP 11065 11065-7503 2
SHAFT 13107 13107-7501 2
LEVER 13168 13168-7506 2
PLATE,HOOK 13271 13271-7540 2
SCREEN,REAR CAB,W.BLACK 14037 14037-7501-388 1
COVER,FR,LH 14091 14091-1142 1
COVER,FR,RH 14091A 14091-1143 1
COVER 14091B 14091-7559 1
TRIM-SEAL,L=1157 39145 39145-7502 1
PAD 39156 39156-7506 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-7501 2
GUARD,FR,W.BLACK 55020 55020-7505-388 1
GUARD,GEAR CASE 55020A 55020-7506 1
BAR-COMP,FR,W.BLACK 55047 55047-7501-388 1
BAR-COMP,FRONT SEAT,W.BLACK 55047A 55047-7503-388 1
BAR-COMP,TOP,W.BLACK 55047B 55047-7504-388 2
BAR-COMP,RR,W.BLACK 55047C 55047-7509-388 1
BAR-COMP,CNT,W.BLACK 55047E 55047-7512-388 1
ADHESIVE 56042 56042-7502 3
BOLT,FLANGED,12X75 92002 92002-1661 2
SCREW,TAPPING,6X16 92009 92009-1166 8
SCREW,6X14 92009A 92009-1662 4
NUT,FLANGED,10MM 92015 92015-1428 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 4
WASHER,10.5X26X2.3,BLACK 92022 92022-1396 4
GROMMET 92071 92071-7505 2
SPRING,TENSIONER 92145 92145-1215 2
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92161 92161-0020 2
DAMPER 92161A 92161-0061 2
DAMPER 92161B 92161-7514 2
WASHER,10.2X23X2.5 92200 92200-7506 12
NUT,LOCK,FLANGED,10MM 92210 92210-0276 8
BOLT-FLANGED,10X20 130D 130BB1020 16
BOLT-FLANGED,10X25 130E 130BB1025 12
BOLT-FLANGED,10X50 130F 130BB1050 4
BOLT-FLANGED,12X25 130G 130CA1225 2
WASHER-SPRING,10MM 462 462K1000 12
