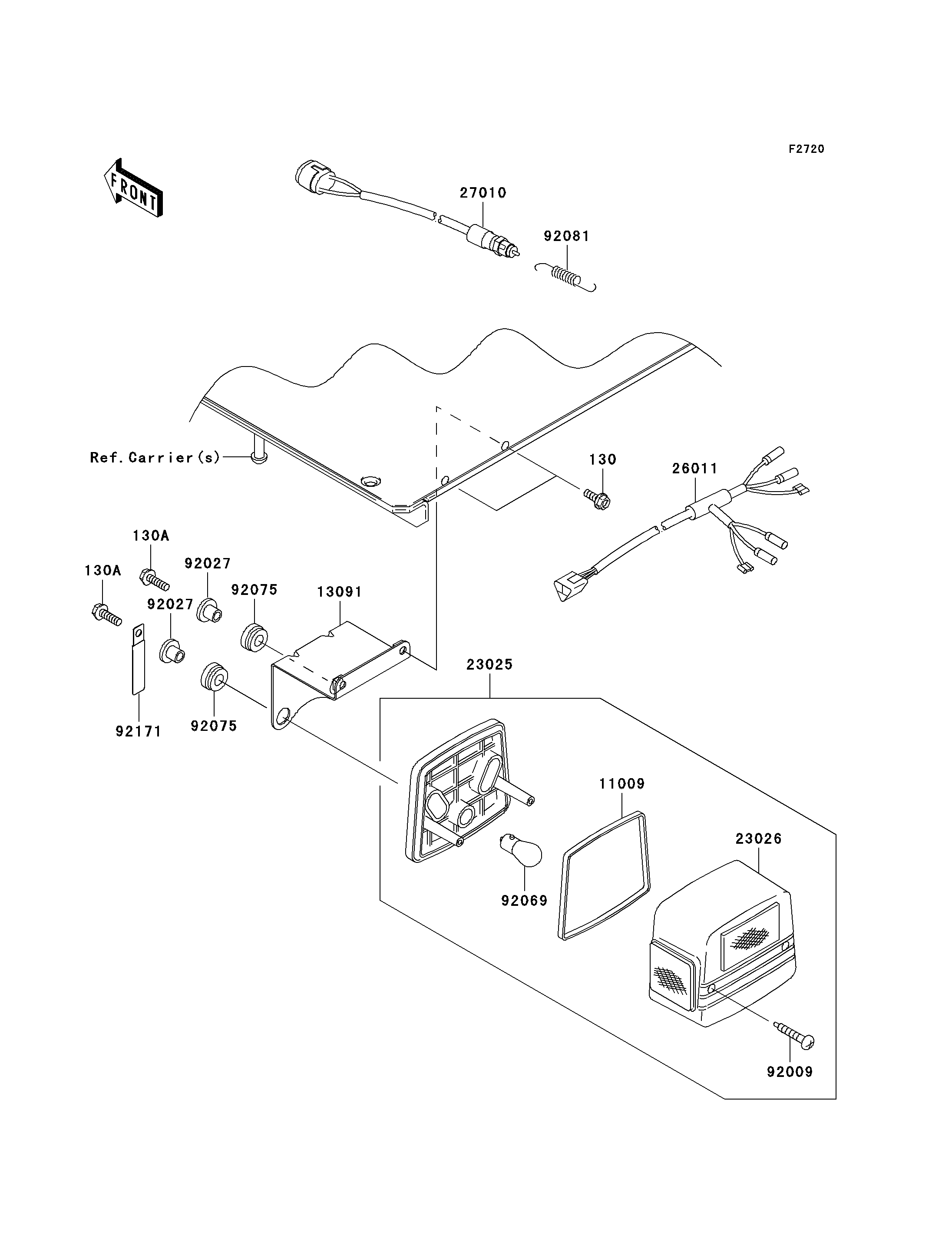

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Taillight(s)

130
130A
130A
11009
13091
23025
23026
26011
27010
92009
92027
92027
92069
92075
92075
92081
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 4
BOLT-FLANGED,6X20 130A 130BB0620 4
GASKET,TAIL LAMP 11009 11009-1215 2
HOLDER,TAIL LAMP 13091 13091-1743 2
LAMP-TAIL 23025 23025-1042 2
LENS,TAIL LAMP 23026 23026-1019 2
WIRE-LEAD 26011 26011-1756 1
SWITCH,BRAKE LAMP 27010 27010-1301 1
SCREW,TAPPING,4X25 92009 92009-1069 4
COLLAR,L=11.1 92027 92027-194 4
BULB,12V 21/5W 92069 92069-1011 2
DAMPER 92075 92075-277 4
SPRING,HOOK RETURN 92081 92081-1466 1
CLAMP 92171 92171-0652 2
