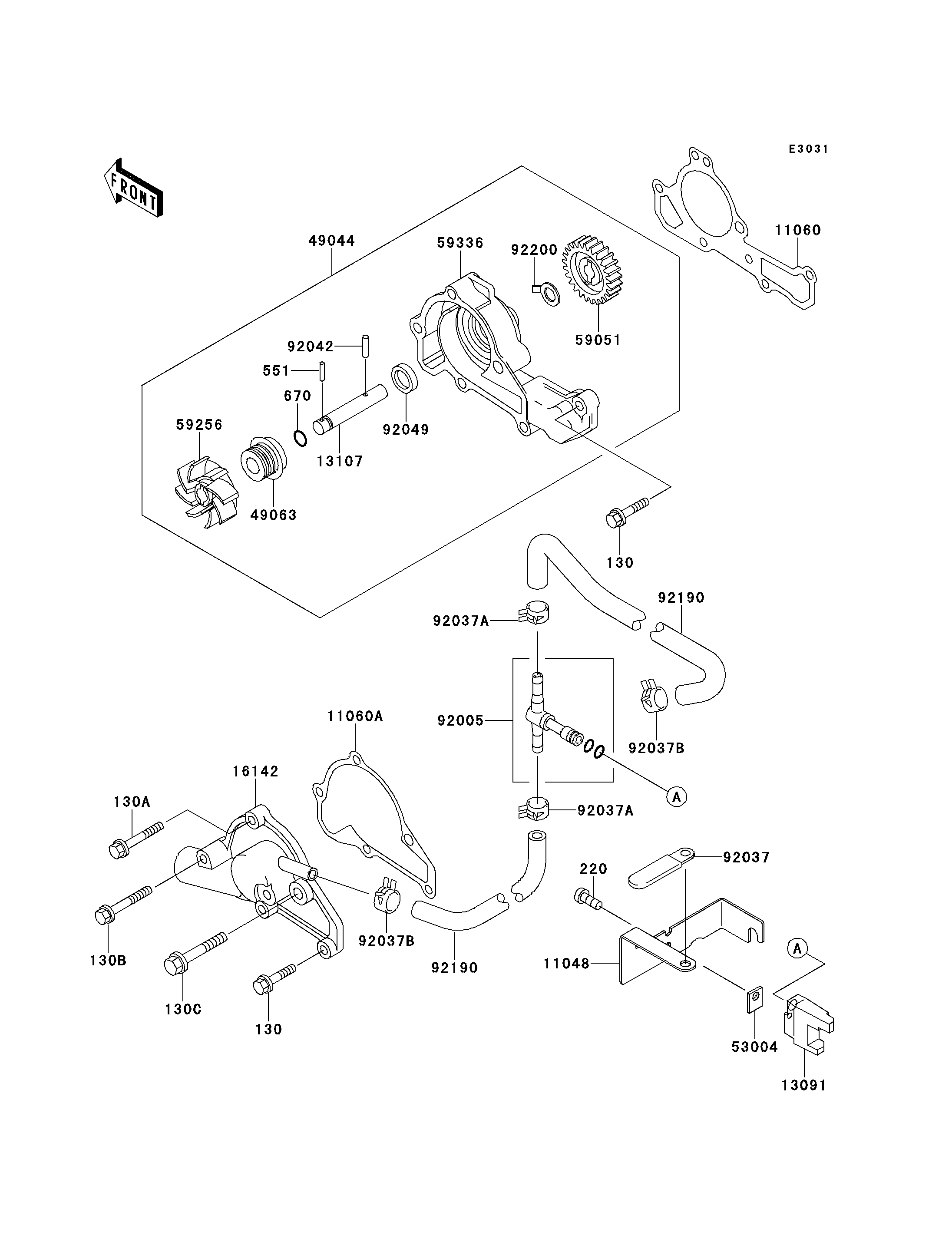

Mule 2500 - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
130C
220
551
670
11048
11060
11060A
13091
13107
16142
49044
49063
53004
59051
59256
59336
92005
92037
92037A
92037A
92037B
92037B
92042
92049
92190
92190
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130T0645 3
BOLT-FLANGED 130A 130T0665 1
BOLT-FLANGED 130B 130T0675 1
BOLT-FLANGED 130C 130T0870 1
SCREW-PAN-CROS 220 220C0410 1
PIN-DOWEL,3X14 551 551A0314 1
O RING,7MM 670 670B1507 1
BRACKET 11048 11048-2022 1
GASKET,PUMP CASE 11060 11060-2450 1
GASKET,PUMP COVER 11060A 11060-2451 1
HOLDER 13091 13091-2133 1
SHAFT 13107 13107-2097 1
COVER-PUMP 16142 16142-2069 1
PUMP-WATER 49044 49044-2058 1
SEAL-MECHANICAL 49063 49063-2056 1
MAT 53004 53004-2056 1
GEAR-SPUR 59051 59051-2113 1
IMPELLER 59256 59256-2057 1
CASE-PUMP 59336 59336-2052 1
FITTING,"T" 92005 92005-2057 1
CLAMP,L=45 92037 92037-1539 1
CLAMP,PULSE TUBE 92037A 92037-2001 2
CLAMP 92037B 92037-2065 2
PIN,DOWEL,4X15.8 92042 92042-014 1
SEAL-OIL 92049 92049-2111 1
TUBE 92190 92190-2156 2
WASHER 92200 92200-2044 1
