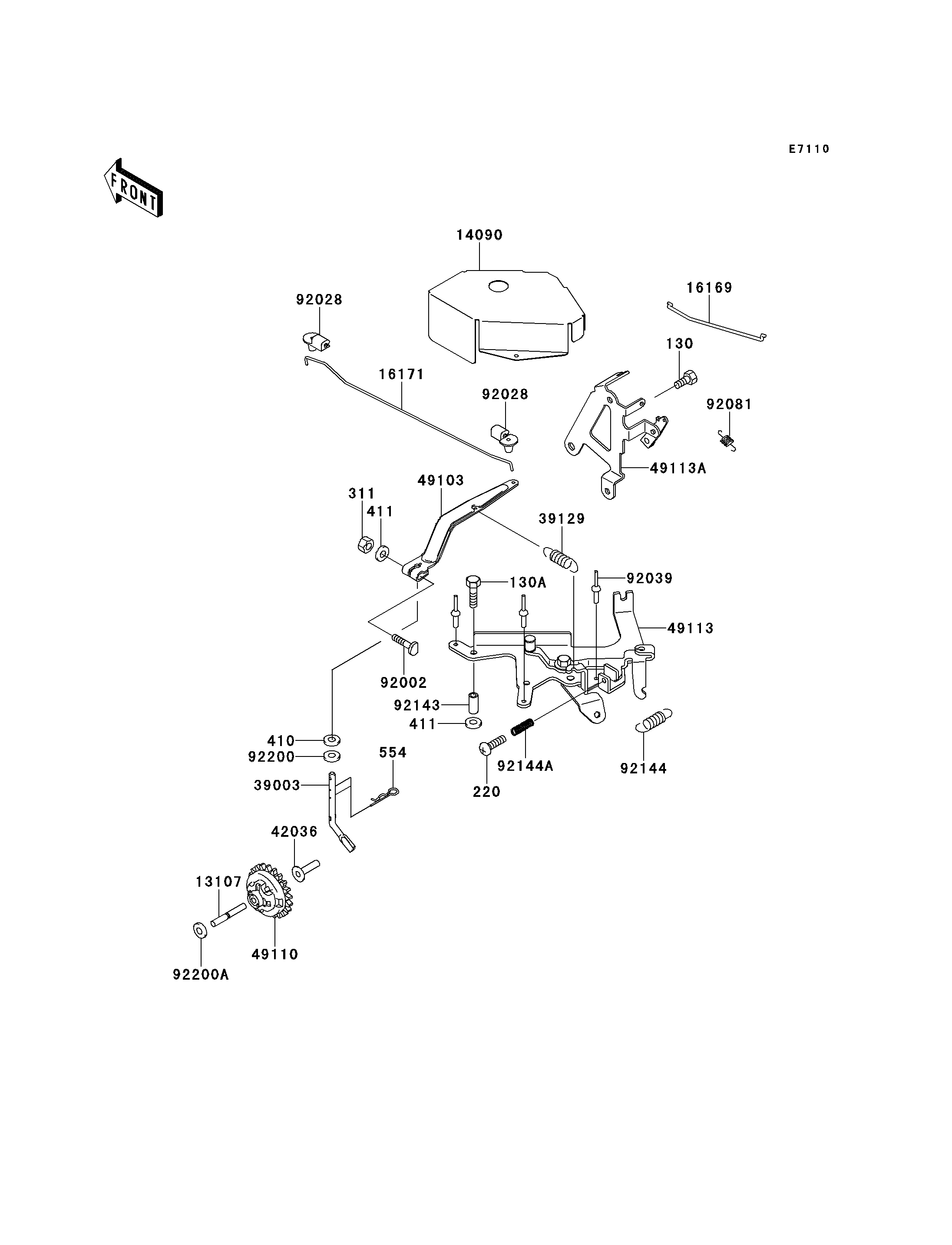

Mule 2500 - Control

DOWNLOAD PDF
SELECT A NEW PART
130
130A
220
311
410
411
411
554
13107
14090
16169
16171
39003
39129
42036
49103
49110
49113
49113A
92002
92028
92028
92039
92081
92143
92144
92144A
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130B0816 1
BOLT-FLANGED,6X55 130A 130G0655 2
SCREW-PAN-CROS 220 220B0522 1
NUT-HEX,6MM 311 311B0600 1
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
WASHER-PLAIN,6MM 411 411B0600 3
PIN-SNAP 554 554A0600 2
SHAFT 13107 13107-2235 1
COVER,CONTROL PANEL 14090 14090-1335 1
LINK-CHOKE 16169 16169-2113 1
LINK,GOVERNOR 16171 16171-1059 1
ARM-PIVOT,GOVERNOR 39003 39003-1053 1
SPRING-GOVERNOR 39129 39129-1011 1
SLEEVE 42036 42036-2060 1
ARM-GOVERNOR 49103 49103-1055 1
GOVERNOR-ASSY 49110 49110-1081 1
PANEL-COMP-CONTROL 49113 49113-1056 1
PANEL-COMP-CONTROL 49113A 49113-2143 1
BOLT,6X28 92002 92002-2269 1
BUSHING,GOVERNOR 92028 92028-2156 2
RIVET,BLIND,4.0X9.2 92039 92039-1163 3
SPRING,BRAKE LEVER RETURN 92081 92081-1922 1
COLLAR,6.8X10X42 92143 92143-1072 2
SPRING,CONTROL 92144 92144-1410 1
SPRING 92144A 92144-2266 1
WASHER,6.5X11.5X2.0 92200 92200-2029 1
WASHER,6.2X20X0.5 92200A 92200-2036 1
