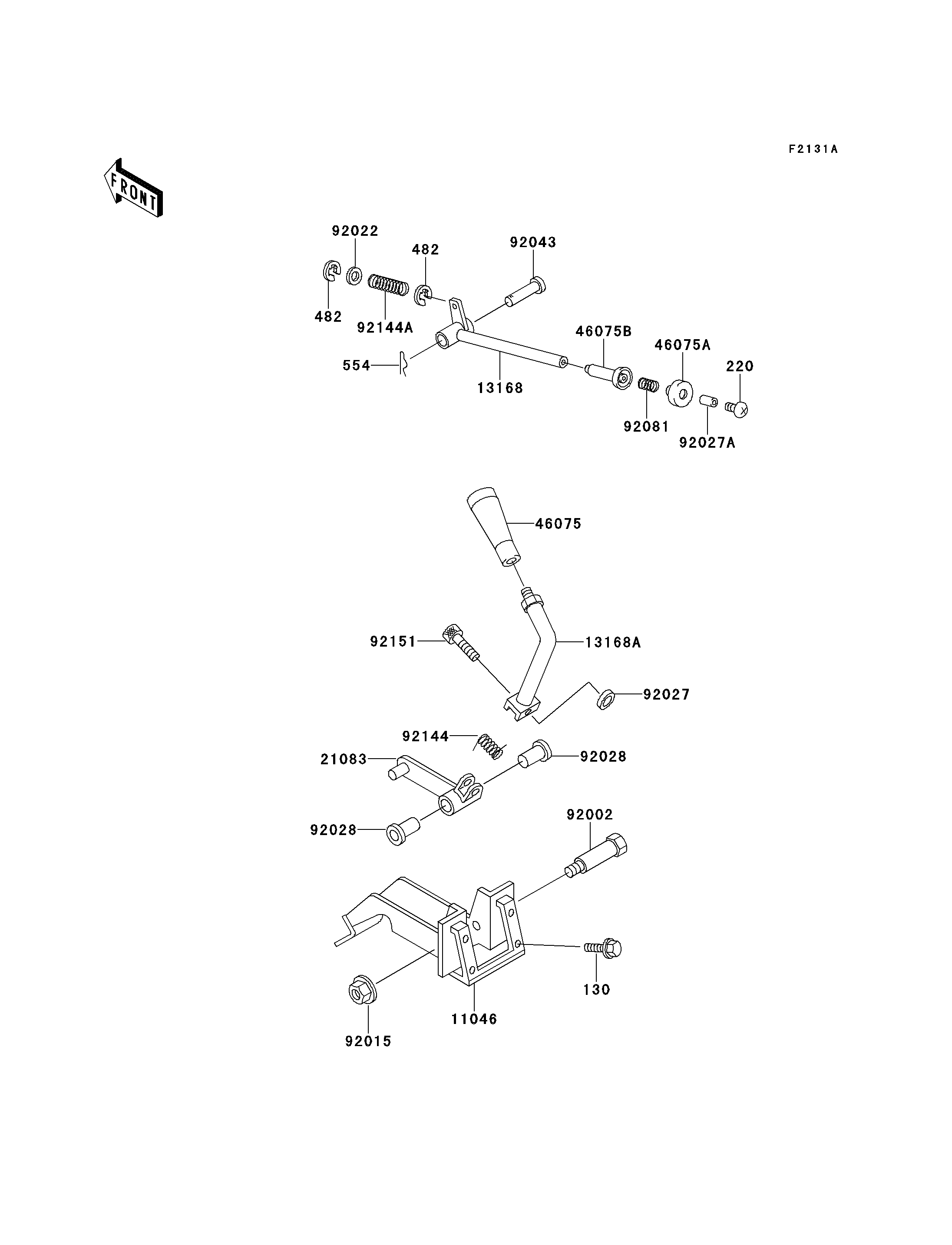

Mule 2500 - Frame Fittings(Lever)

DOWNLOAD PDF
SELECT A NEW PART
130
220
482
482
554
11046
13168
13168A
21083
46075
46075A
46075B
92002
92015
92022
92027
92027A
92028
92028
92043
92081
92144
92144A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130C0612 4
SCREW-PAN-CROS 220 220C0514 1
CIRCLIP-TYPE-E,8MM 482 482L8000 2
PIN-SNAP,10MM 554 554A1000 1
BRACKET,SHIFT LEVER 11046 11046-1677 1
LEVER,DIFF MODE CONTROL 13168 13168-1428 1
LEVER,SHIFT 13168A 13168-1440 1
ARM,SHIFT LEVER 21083 21083-1142 1
GRIP,SHIFT LEVER 46075 46075-1075 1
GRIP,UPP 46075A 46075-1085 1
GRIP,LWR 46075B 46075-1086 1
BOLT 92002 92002-1984 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
WASHER,10.5X26X2.3 92022 92022-044 1
COLLAR,6.3X10X4.8 92027 92027-1066 1
COLLAR 92027A 92027-1987 1
BUSHING 92028 92028-1507 2
PIN,10X34 92043 92043-1069 1
SPRING 92081 92081-1714 1
SPRING 92144 92144-1175 1
SPRING 92144A 92144-1510 1
BOLT,SOCKET,6X40 92151 92151-1128 1
